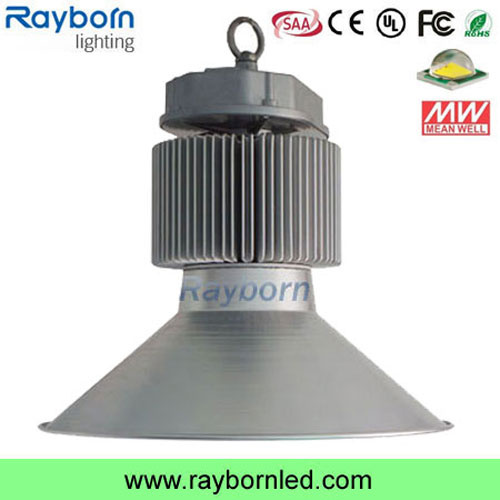

Industrial Lighting 300W/200W/150W/120W/100W LED High Bay Light
| Price: |
US $ 125/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
LED High Bay Light 30W-500W With Meanwell Driver CREE Chip/Bridgelux Chip/Samsung Chip(Industrial LED Lighting)Item No.: RB-HB-465-150W
Input Voltage: AC 90~277V 50-60HZ
Power Factor: >0.98; Power Efficiency: >0.93
LED Luminous Efficiency 120-130lm/W
LED High Bay Light Power Consumption: 150W
System Power Consumption: 156W
LED Chip: Bridgelux/CREE/LG Chip
Lamp Beam Angle: 120/90/45 30 degrees
Color Index: Ra≥ 80
Color Temperature: 2700-7000K
Operating temperature: -40~55
Protection Class: IP54/65
LED Lumen: 16500LM
Useful Life: ≥ 50000 hours
Weight: N. W. 8.0KG
Lamp Body Material: Aluminum 6063
Color of Housing: Black or Silver
Bridgeluxe/LG/CREE Chip 150W Led High bay light Features:1. Using single powerful LED(30W-500W)as the light source, with unique lighting design of Multi- chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
2. High bay lighting Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.
3. High bay led The heat sink surface have conducted anodic oxidation anticorrosive process, with compact structure and aesthetic appearance, water proof and dust proof.
4. High bay light Adopted advanced constant current controlling techniques, wide voltage range available and global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution.
5. High color rendering, meet the requirement of different environment, improve working efficiency.
6. Easy installation and demolition, wide range of application. Environment-friendly, no air pollution, no lead-free, no-mercury
1. CE & RoHS & TUV UL approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed

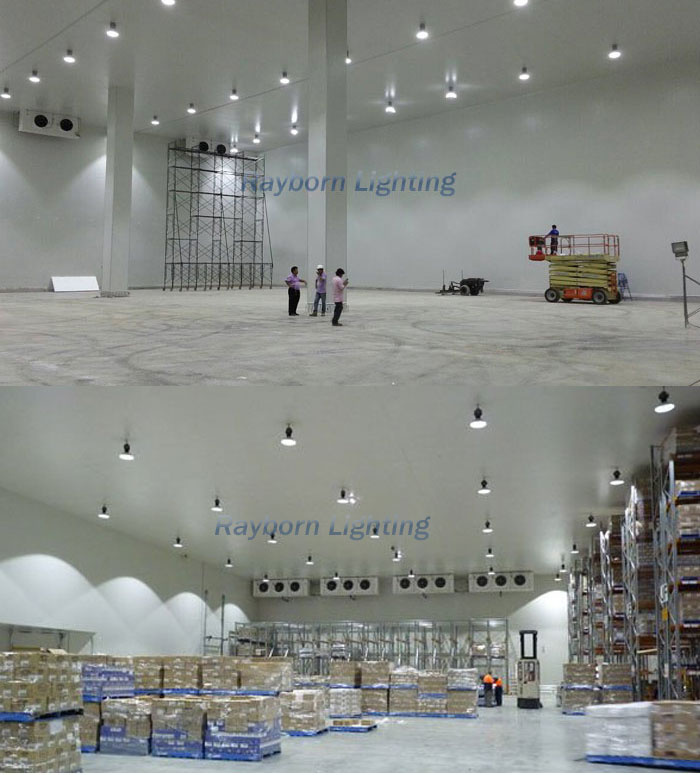

5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespanLED High Bay Light Applications:Widely used in factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.
| 150W CREE LED HIGH BAY Light Main Technical Parameters |
| Item No.: | RB-HB-465-150W |
| Input Voltage: | AC 90~277V |
| Freqency Range: | 50Hz~60Hz |
| Power Factor: | >0.98 |
| Power Efficiency: | >91% |
| LED Power | 150W |
| LED Chip: | CREE/Samsung |
| Power Driver: | MeanWell |
| LED QTY: | 100PCS CREE XTE |
| LED Working Voltage: | DC 42~48V |
| System Consumption: | 155W |
| LED Luminous Flux | Warm White | 15200LM |
| Pure White | 16300LM |
| Cool White | 16500LM |
| Viewing Angle: | 120degree |
| Average Illuminance | Height 6M | 245LUX |
|
| Illuminance Area | Height 6M | Dia.12 M points visible |
| Height 8M | Dia.18M points visible |
| Height 10M | Dia.24 M points visible |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 2700K~3500K |
| Pure White | 4000K~5500K |
| Cool White | 6000K~7000K |
| Color Rendering Index | Ra>80 |
|
| Light Distribution: | LED points visible |
| LED Junction Temperature: | ≤115 |
| Working Temperature: | –35~55 |
| IP Grade: | IP65 |
| Working Life-span: | 50000 H |
| Power Line: | 1.0 three line |
| Connect Wire | Brown | L |
| Blue | N |
| Yellow / Green | G |
| The color of the lamp shell | Black and silver is available |
| Certificate | CE /ROHS/UL/SAA |
| Net Weight: | 8.7KG |
| Prod Model: |
RB-HB-465-150W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Life: |
50, 000h |
| Power Source: |
AC |
| Electric Current Type: |
DC |
| Emitting Color: |
3000k/4500k/5500k/6000k |
| Base Material: |
Aluminum |
| Input Voltage: |
90-277V/AC |
| Chip: |
Bridgelux/CREE/Samsung |
| Angel: |
45/90/120 |
| Color Temperature: |
Cool White |
| Lamp Body Material: |
Aluminum |
| IP Rating: |
IP65 |
| Certification: |
VDE |
| Usage: |
Warehouse, Room, Factory/Workshop |

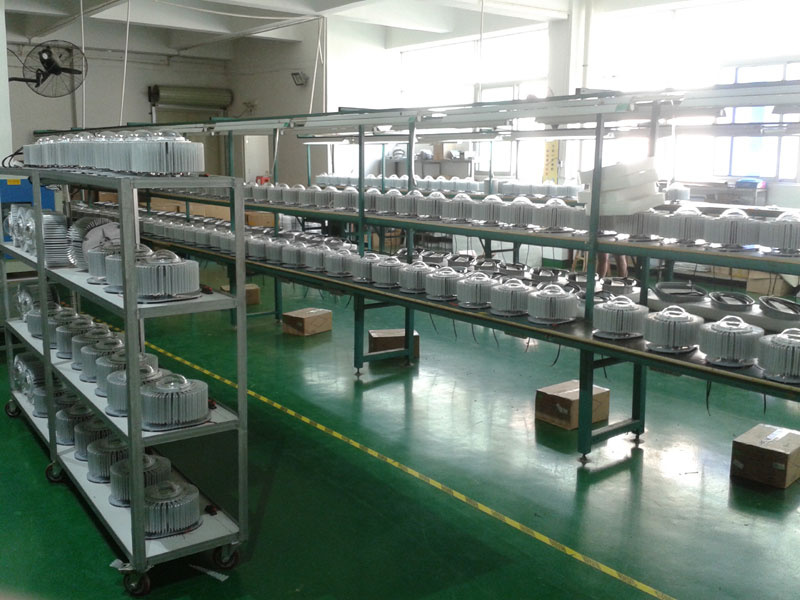

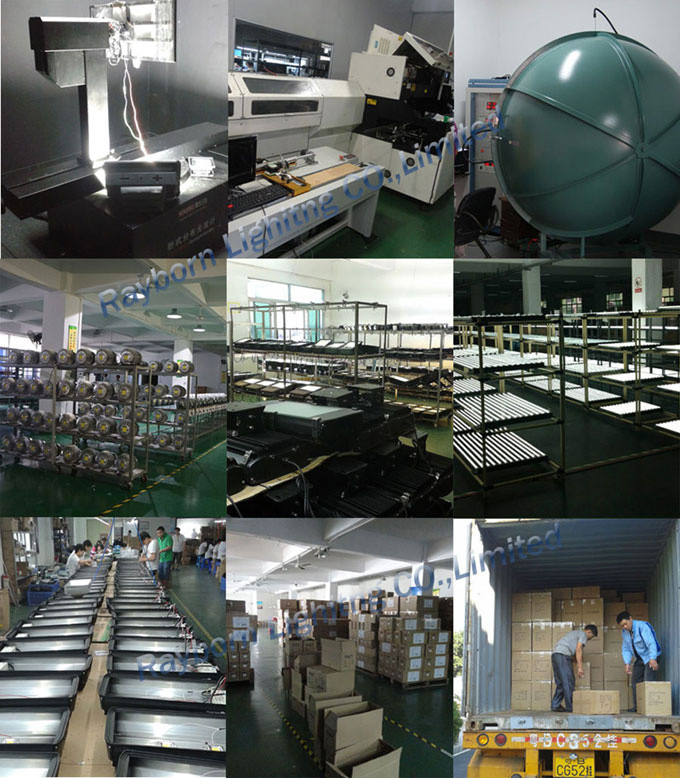

Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
