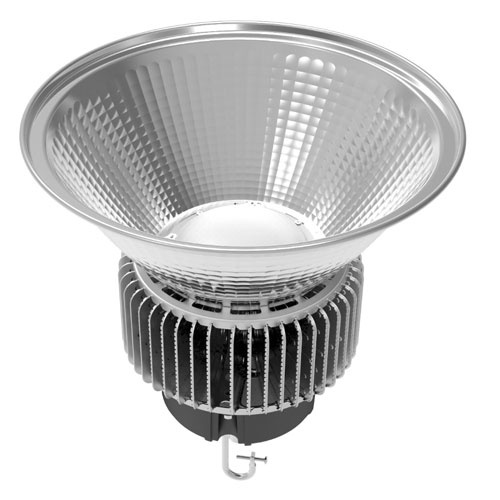

5 Years Warranty Meanwell 150W LED Factory High Bay Light

5 Years Warranty Meanwell 150W LED Factory High Bay Light


Specifications of 150W LED Industrial High bay Light :


150W LED Industrial Light Main Technical Parameters
Item No.:		RB-GK-150W
Input Voltage:		AC 100-277V
Freqency Range:		50Hz~60Hz
LED Chip:		Samsung Chip
Power Driver:		Meanwell HBG
Power Factor:		>0.98
Power Efficiency:		>93%
LED Power		150W
LED QTY:		170pcs
LED Working Voltage:		DC 30~36V
System Consumption:		156W
LED Luminous Flux	Warm White	14500LM
	Pure White	15900LM
	Cool White	16300LM
Viewing Angle:		25/60/100degree
MaximumIlluminance	Height 10M	139LUX
	Height 20M	35LUX
	Height 30M	16LUX
Illuminance Area	Height 10M	Dia.10.5 M  points visible
	Height 20M	Dia.21.8M points visible
	Height 30M	Dia.31.6 M points visible
Illuminance Uniformity:		>0.6
Color Temperature	Warm White	3000K~3500K
	Pure White	4500K~5500K
	Cool White	6000K~6500K
Color Rendering Index		Ra>80
Light Distribution:		LED points visible
LED Junction Temperature:		≤115ºC
Working Temperature:		-35ºC~55ºC
IP Grade:		IP54
Working Life-span:		50000 H
Power Line:		1.0 mthree line
Connect Wire	Brown	L
	Blue	N
	Yellow / Green	G
Chip PC Cover:		Frosted / Transparent
Certificate		CE/SAA /UL/ROHS
Net Weight:		4.7KG


1. Rayborn led High Bay lights are adopted Bridgelux 45mil,CREE XTE,LG Innotek integrated or Samsung chips,which is Pure Copper LED Bracket and Gold Wires.
2. Rayborn led high bay lights are adopted 5 years warranty Meanwell constant current waterproof drivers.
3. As you know the good heat dissipation is important for the lifespan,so we use the best aluminum heat sink to reduce the decay. So our led high bay lights decay rate is just 1% using 10000HRS;
4. LED high bay Light,we have 30W,50W,80W,100W,120W,150W,180W,200W,300W, 400W,and 500W,customized power also available.



Applications of Industrial Highbay Light :

Widely used in factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.
1. Workshop and factory lighting.
2. Shopping mall lighting.
3. Museum, stadium and gymnasium lighting.
4. Highway toll station and gas station lighting.
5. Warehouse and smeltery lighting.



Features of  LED high bay light :

1. Using single powerful LED(30-250W)as the light source, with unique lighting design of Multi- chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.

2. High bay lighting Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.

3. High bay led The heat sink surface have conducted anodic oxidation anticorrosive process, with compact structure and aesthetic appearance, water proof and dust proof.

4. High bay light Adopted advanced constant current controlling techniques, wide voltage range available and global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution.

5. High color rendering, meet the requirement of different environment, improve working efficiency.

6. Easy installation and demolition, wide range of application. Environment-friendly, no air pollution, no lead-free, no-mercury



Competitive Advantage of LED highbay industial light :

1. Lifespan:more than 50,000 hours, lower cost of maintance;
2. High Luminous efficiency, Eco-friendly lighting;
3. Energy-saving: saving 60% than the traditional bulbs;
4. 45 / 90 / 120 degree beam angle with sensor, more convenient;
5. Green, Healthy and Environmentally friendly protection, bring more beautiful nightscape;
6. No mercury, No radiation, No UV, more healthy;
7. Easy to install and maintain;
8. Low consumption and high conversion.



Installation information of High Bay LED Light :

1.Check all the parts and accessories of LED High bay light;
2.Must cut off the power supply before installation;
3.Make sure the light is fixed tightly to the surface of place for installation ;
4.Connect the power line of light with power supply, then switch on the power.
5.When the highbay light is working, it must be kept vertical downward.




Ageing Test of Highbay led light :

All our LED high bay lights will be tested before shipping,so that we can ensure the quality and light performance.Because we must be responsible to our customers.



Packaging of High Bay Light :

Our individual package maximize protecting the lights from transfer damage in transit.
1.Label on backside of each high bay lights and your required label is available.
2.One piece led high bay Light per carton.
3.This is our regular packing of the led high bay light,if you need,we can also custom color packing  and put your logo on it.



Shipping of Industrial LED high bay lights : By sea,air,express (DHL,FedEX,UPS,TNT etc.)

Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Samll quantity advised to be shipped by air.



Rayborn's Good Service :

1. Your inquirey related to our products or price will be replied within 24 hours.
2. All your inquireies will be well explained by our experienced staff.
3. OEM&ODM,also provide customized service.
4. Distributor ship is available for your unique design and some our current models.
5. We will keep secret for customer sale area,design ideas and all other private information.



Company Information :

Rayborn Lighting Co.Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.

We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.

With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.

We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.


100W 150W 200W Industrial LED high bay lights are available.




FAQ :

Q1: What is the warranty of your led high bay lights?

A:  We offer three and five years guarantee for our LED high bay lights,and we will offer you based on your requirement.


Q2: What color temperature we can choose?

A:  We offer LED high bay lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)

Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K


Q3: Do your led high bay lights can be used in our country?

A: Yes, Our LED high bay light has wide input voltage AC100-240V, and it can be customized too.


Q4: How do you help me to save freight cost?

A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.


Q5: Do you have any MOQ limited?

A: We don't have MOQ,even only one piece LED high bay light you can buy.

Q6: What's the lead time?

A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.

Q7:How do you ship the goods and how long does it take?

A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.

Q8: Do you accept Paypal or Western Union for sample order?

A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.



Pls don't feel hesitate to contact us if our products meet your requirements.Pls give me one enquiry,I will give you ten surprises.Believe me,I am sincere Charmaine.
