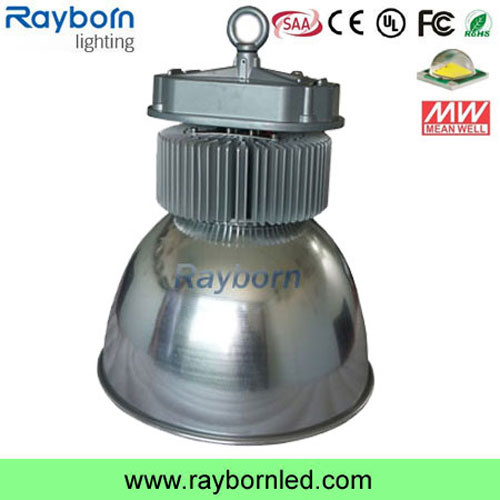

High Power 300W 250W 200W Bridgelux COB Chip LED High Bay Light with SAA CE
Price: |
US $ 259/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,Paypal,Western Union |
LED Warehouse Light 150W/200W/250W/300W industrial high bay led LampHi-Bay LED Lighting/High Bay Ligh Lamp300W LED Industrial Light Main Technical Parameters |
Item No.: | Rb-HB-415-200W |
Input Voltage: | AC 100~277V |
Freqency Range: | 50Hz~60Hz |
LED Chip | Bridgelux 45Mil |
Power Driver: | Mean Well Driver |
Power Factor: | >0.98 |
Power Efficiency: | >91% |
LED Power | 200W |
LED QTY: | 200PCS |
LED Working Voltage: | DC 30~36V |
System Consumption: | 208W |
LED Luminous Flux | Warm White | 20000 |
Pure White | 21000 |
Cool White | 21500 |
Viewing Angle: | 120degree |
Centre Illuminance | Height 10M | 100.3lux |
Height 15M | 44.6lux |
Height 20M | 25.1lux |
Illuminance Area | Height 10M | Dia.2490cm points visible |
Height 15M | Dia.3735cm points visible |
Height 20M | Dia.4980cm points visible |
Illuminance Uniformity: | >0.6 |
Color Temperature | Warm White | 2700K~3500K |
Pure White | 4000K~5500K |
Cool White | 6000K~7000K |
Light Distribution: | LED points visible |
LED Junction Temperature: | ≤115ºC |
Working Temperature: | -40ºC~50ºC |
Working Life-span: | 50000 H |
IP Grade: | IP54 |
Power Line: | 1.0 mthree line |
Connect Wire | Brown | L |
Blue | N |
Yellow / Green | G |

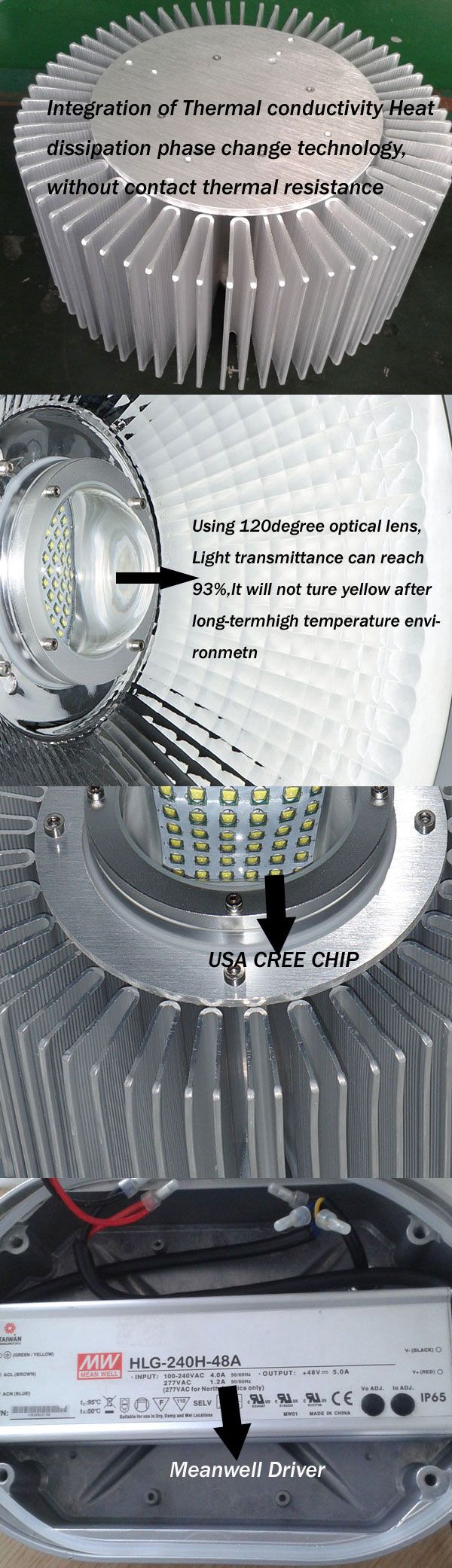

Heatsink | Integration of Thermal conductivity Heat dissipation phase change technology |
|
Led High bay light Features:· Integrated USA Bridgelux LED system for optimum lifetime performance
· Ideal for Box Stores, Supermarkets, Factories, Warehouses.
· Special radiator design for better heat dissipation
· Reduced energy consumption and operating costs by up to 80%.
· Maintenance free operation - lasts up to 10 times longer than conventional lighting
· Solid state design and circuitry
· Great for shock and high vibration environments
· 50-80% reduced energy usage. Save money on your utility bill
· No humming or flickering.
· Cool beam - Does not produce Ultra Violet (UV) light or IR, reduces air conditioning loads.
· Unique design with anodized silver housing for cooler operation and extended lamp life.

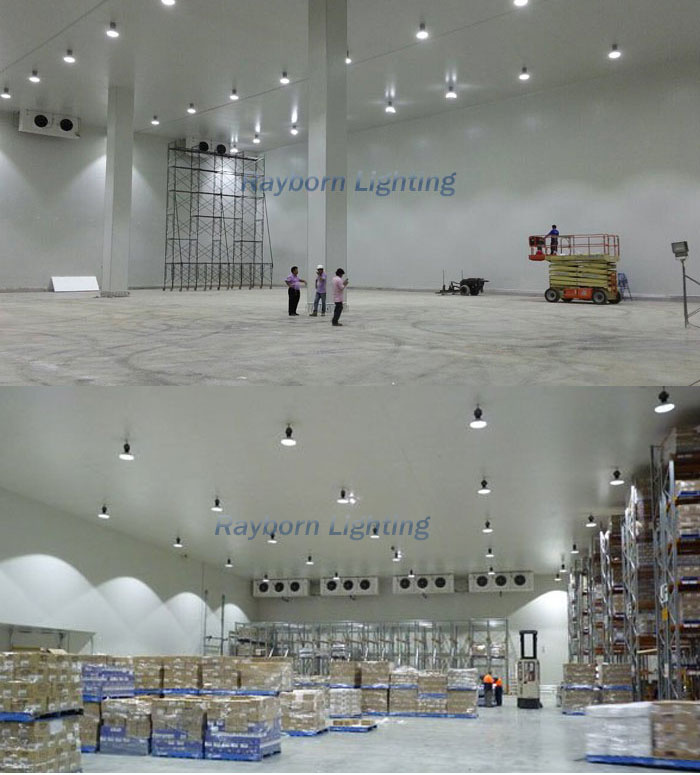

· Environmentally friendly fully recyclable, no mercury or other hazardous materials.LED High bay light Applications:LED High Bay Lights widely used for Indoor and outdoor places:
Factories, workshops, warehouse, toll stations, gas stations, stadiums, big supermarket, exhibition, commercial building, stadium hall, parking building etc.
Prod Model: |
RB-HB-415-200W |
Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item No.: |
Rb-Hb-415-200W |
Input Voltage: |
AC 100~277V 50-60Hz |
Power Factor: |
>0.98 |
LED Chip: |
CREE,Bridgelux |
LED Driver: |
Meanwell |
Lamp Beam Angle: |
45/90/120 Degrees |
Power Efficiency: |
>0.90 |
Color Index: |
>80 |
Cct: |
2700-7000k |
Useful Life: |
50000 Hours |
Color Temperature: |
Pure White |
Lamp Body Material: |
Aluminum Alloy |
IP Rating: |
IP54 |
Certification: |
UL |
Power: |
50W-500W, 300W |
Usage: |
Factory, Factory/Workshop |
