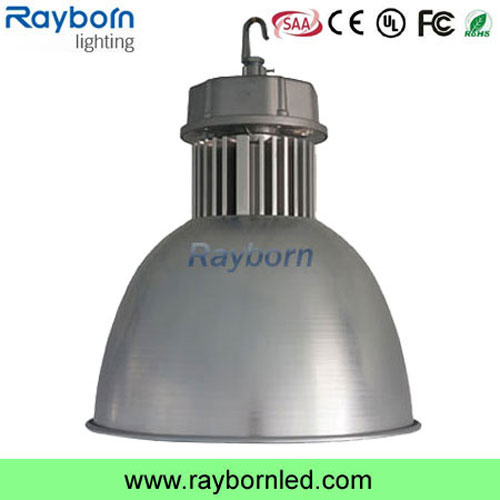

Wholesale Price factory warehouse high bay led light 30W- 500W30W LED Industrial Light Main Technical Parameters |
Item No.: | RB-HB-415-30W |
Input Voltage: | AC 100~240V |
Freqency Range: | 50Hz~60Hz |
Led Chip: | Bridgelux 45 mil |
Power Factor: | >0.95 |
Power Efficiency: | >88% |
LED Consumption: | 30W |
LED QTY: | 1pc*30W |
LED Working Voltage: | DC 30~36V |
System Consumption: | 35 W |
LED Luminous Flux | Warm White | 3090LM |
Pure White | 3550LM |
Cool White | 3550LM |
Viewing Angle: | 45 degree |
Center Illuminance | Height 3M | 403LUX |
Height 4M | 228 LUX |
Height 5M | 146 LUX |
Illuminance Area | Height 3M | Dia.2.6 M points visible |
Height 4M | Dia.3.4 M points visible |
Height 5M | Dia.4.2 M points visible |
Color Temperature | Warm White | 2700K~3500K |
Pure White | 5000K~5500K |
Cool White | 6000K~7000K |
Color Rendering Index | Ra>78 |
|
Light Distribution: | LED points visible |
Light Design: | LED+Reflectors secondary light distribution |
LED Junction Temperature: | ≤115ºC |
Working Temperature: | -40ºC~50ºC |
IP Grade: | IP54 |
Working Life-span: | 50000 H |
Power Line: | 1.0 mthree line |
Connect Wire | Brown | L |
Blue | N |
Yellow / Green | G |
The color of the lamp shell | Black and silver is available |
Features:

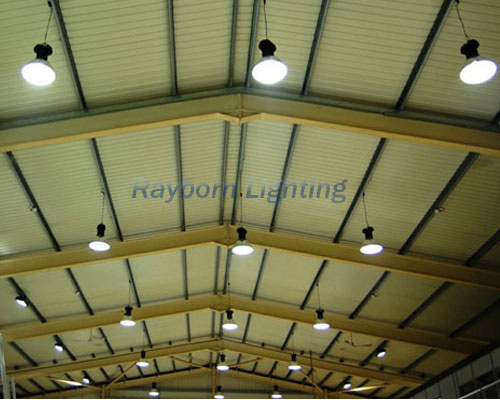

Mining lamp Applications in buildings, factory, warehouse, large supermarket, sculpture, stadiums, squares, docks etc. Using high power ceramic multi-chip LED, High quality aluminum body, patented cooling body design, anodizing tensile reflector, acrylic light source enclosure. The unique thermal design and the power supply box is a perfect combination, reasonably using movement of air from all directions, effectively improving heat conduction, thereby reducing the lamp body temperature, so that LED could be in the best working environment in order to ensure light and power supply life.
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
