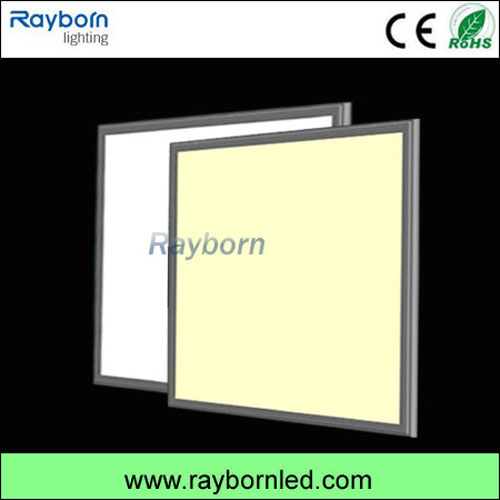

600*600mm 36W 40W 48W 40W LED Panel Light With SAA CEInstallation: Ceiling/Embedded/Suspension
Dimmable: Triac dimming/0-10V/Adjustable color temperature/RGB panel/24V DC Dimming
Viewing Angle>110°, RA>80, IP54 CLASS
PF>0.9 CCT: 3000K/4000K/5000K/6000KItem No.: RB-PL-P6060C
Input Voltage: AC 85-264V/ 50-60HZ
LED Power: 48W
LED Chip: 4014 led smd
Luminous flux: 4580LM
Power Factor: >0.95; Power Efficiency: >0.88
LED Luminous Flux Warm White, Nature White, Pure White
LED Panel light Viewing Angle: 120 degree
Color Temperature Warm White 3000K~3500K
Nature White 4000K~4500K, Pure White 5500K~6500K
Color Rendering Index: Ra≥ 80
Working Temperature: 40~55
IP Grade: IP54
Body Size: 600*600*9mm
Material: Aluminium /SPCC/PMMA
Working Life-span: 50000 H
Certificate CE & RoHS &TUV SAA
| Dimension: 595mm * 595mm | Power: 48W |
| Input Voltage: AC85-265V | LED Type: 4014 High Lumin |
| LED quantity: 360pcs 0.2w/pcs | View angle: 120°Viewing angle |
| CCT:3000/4000/5000/6000K | CRI: ≥80Ra |
| Luminous flux: 4580lm | Power Factor: >0.92 |
| Life time: >50,000 hrs | Working Environment:Indoor |
LED Panel Light Features:1. Energy-efficient, environment-friendly
2. No glare, no noise, no UV
3. Ultra slim and fashionable design
4. Maintenance free, easy installation
5. No maintenance for the life of unit, apart from cleaning
6. Remote-control dimming available
7. Solid-state, high shock/vibration resistant
8. No fluorescent flickering
9. No danger of broken glass

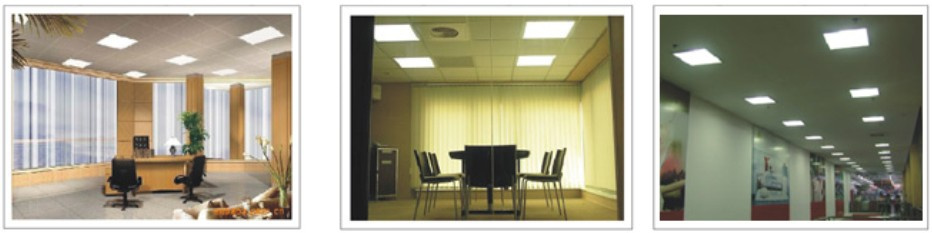

10. Long lifetime, 50, 000+hrs(5+years)60*60CM LED Panel Lightin Applications:1. Commercial and exhibition locations
2. Hotel, conference room
3. Factory, office, house
4. Airport, metro station
5. School, hospital and other public places
6. Place that require energy-efficiency and high color rendering index
600*600mm LED Panel Light Installation1. Please note the power wiring of positive and negative when installation power wiring (positive with word)
2. Connect into the panel lamp terminals power wire needs to tighten with the screw
3. To avoid danger, pls cut off power supply before connecting wiring. 4. Lock the screw, pls not use
Embedded installation of led panel light:1. Taken the ceiling and LED panel light turn 45 degrees, and put it above the ceiling, pls do not force squeezing or through the ceiling
2. Please placed panel lamp handled with care, ensure the products shine with the best effect
3. Choose embedded installation LED panel lamp, first consideration that wether the panel light and the size of the ceiling corresponds
Suspension installation of led panel light:1. Pls put a soft mat on the floor before Installing corner fixing parts, lest scratches or damaged panel
2. Please placed panel lamp handled with care, ensure the products shine with the best effect
3. Lock the screw, pls not use greatly forcibly, lest crush the panel lamp
1. The first open four φ 5mm holes on the ceiling
2. Make the glue plug put into open good holes
3. Screw through fixed cap, locked in plug hole
LED Office Lighting Competitive Advantage:
1.50% energy saving same watts compare with CFL traditional lights.
2. No glare, no UV, no pollution. Friendly to environment, healthful for man
3. Low luminous decay. 3% luminous decay After 2000hrs
4. Wide range voltage 85-265VAC
5. No need in cooling. It is the good integrated heating dissipation and aesthetic design.
6. Dimmable can be option. Color changing, to be red, green, blue, yellow etc. Or luminance to be more brighter just as you like.
7. Saving energy saving the earth and saving your money
Sea Transportation:
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
