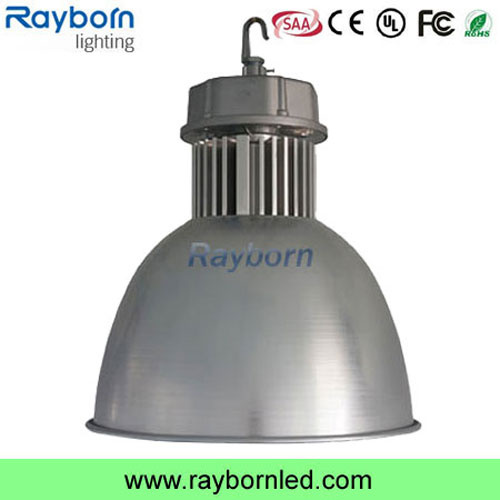

Rayborn Hanging LED High Bay Light 30W-500W Industrial Light
30W LED Industrial Light Main Technical Parameters |
Item No.: | RB-HB-415-30W |
Input Voltage: | AC 100~240V |
Freqency Range: | 50Hz~60Hz |
Led Chip: | Bridgelux 45 mil |
Power Factor: | >0.95 |
Power Efficiency: | >88% |
LED Consumption: | 30W |
LED QTY: | 1pc*30W |
LED Working Voltage: | DC 30~36V |
System Consumption: | 35 W |
LED Luminous Flux | Warm White | 3090LM |
Pure White | 3550LM |
Cool White | 3550LM |
Viewing Angle: | 45 degree |
Center Illuminance | Height 3M | 403LUX |
Height 4M | 228 LUX |
Height 5M | 146 LUX |
Illuminance Area | Height 3M | Dia.2.6 M points visible |
Height 4M | Dia.3.4 M points visible |
Height 5M | Dia.4.2 M points visible |
Color Temperature | Warm White | 2700K~3500K |
Pure White | 5000K~5500K |
Cool White | 6000K~7000K |
Color Rendering Index | Ra>78 |
|
Light Distribution: | LED points visible |
Light Design: | LED+Reflectors secondary light distribution |
LED Junction Temperature: | ≤115ºC |
Working Temperature: | -40ºC~50ºC |
IP Grade: | IP54 |
Working Life-span: | 50000 H |
Power Line: | 1.0 mthree line |
Connect Wire | Brown | L |
Blue | N |
Yellow / Green | G |
The color of the lamp shell | Black and silver is available |
Led High bay light Features:
1. Using single powerful LED(30-500W)as the light source, with unique lighting design of Multi- chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
2. High bay lighting Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.
3. High bay led The heat sink surface have conducted anodic oxidation anticorrosive process, with compact structure and aesthetic appearance, water proof and dust proof.
4. High bay light Adopted advanced constant current controlling techniques, wide voltage range available and global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution.
5. High color rendering, meet the requirement of different environment, improve working efficiency.
6. Easy installation and demolition, wide range of application. Environment-friendly, no air pollution, no lead-free, no-mercury
High Bay Light Competitive Advantage:
1. CE & RoHS & TUV & SAA & UL approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
High Bay Lighting Applications:
Widely used in factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.
