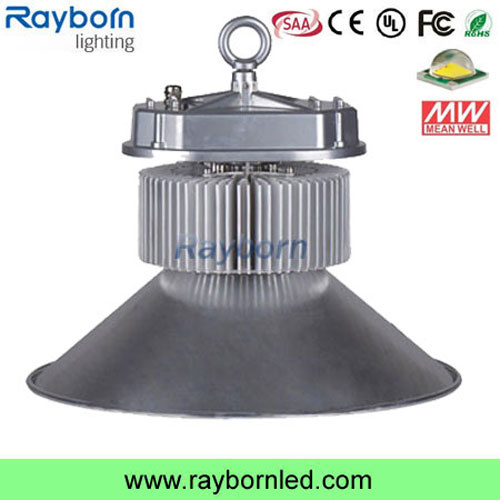

Petrol Station 150w Gas Station/ Warehouse/Canopy led High Bay lights
Product Specifications:
LED High Bay Light/Industrial High Bay LED Lighting
| 150W LED Industrial Light Main Technical Parameters |
| Item No.: | RB-HB-515-150W |
| Input Voltage: | AC 100~277V |
| Freqency Range: | 50Hz~60Hz |
| LED Chip | Bridgelux 45 mil |
| Power Driver: | Mean Well |
| Power Factor: | >0.98 |
| Power Efficiency: | >91% |
| LED Power | 150W |
| LED QTY: | 1pc*150W |
| LED Working Voltage: | DC 42~48V |
| System Consumption: | 155W |
| LED Luminous Flux | Warm White | 14350LM |
| Pure White | 15100LM |
| Cool White | 15300LM |
| Viewing Angle: | 120degree |
| Average Illuminance | Height 3M | 252LUX |
| Height 4M | 142LUX |
| Height 5M | 91LUX |
| Illuminance Area | Height 3M | Dia.9.6 M points visible |
| Height 4M | Dia.12.8M points visible |
| Height 5M | Dia.16.1 M points visible |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 2700K~3500K |
| Pure White | 4000K~5500K |
| Cool White | 6000K~7000K |
| Color Rendering Index | Ra>78 |
|
| Light Distribution: | LED points visible |
| LED Junction Temperature: | ≤125ºC |
| Working Temperature: | -40ºC~50ºC |
| Working Life-span: | 50000 H |
| IP Grade: | IP54/IP65 |
| Power Line: | 1.0 mthree line |
| Connect Wire | Brown | L |
| Blue | N |
| Yellow / Green | G |
| Heatsink | Integration of Thermal conductivity Heat dissipation phase change technology |
|
| The color of the lamp shell | Black and silver is available |
| Certificate | CE /ROHS/UL |
| Net Weight: | 8.5KG |
Features:
1. Using single powerful LED(30-500W)as the light source, with unique lighting design of Multi-chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
2. The unique design of radiator which can combine with the lamp box perfectly, diffuse the heat conduction efficiently, so that reduce the temperature of inside lamp, it ensures the LED longlife-span.
3. Environment-friendly, no air pollution, no lead-free, no-mercury.
4. Adopted advanced constant current controlling techniques; Wide voltage range available and global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution; Avoid the stimulation and tiredness taking from long-time work.
High bay led lighting Competitive Advantage:
1. Imported original Cree chip, superior light source
2. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
