Main features:
Epistar and Silan brand LED chips, MBI5024 driver IC, Meanwell Power supply, all are famous brand materials
Vivid image and video, rich in describing the details of color
High brightness ≥ 1500 CD/m2, automatically brightness adjust to environment, IP65 and range working temperature design, can meet your indoor using request
Signal and power automatically timing function, automatically running
Remote control, error detection, control center management function, feedback the error by SMS
DOT-DOT correction function support
A. Good quality, the brightness is adjustability
B. Wide viewing angle
C. Pure white balance, good consistency
D. More than 100, 000hours life span
E. Easy learn and operate
F. Our engineers are free to help installing and adjusting display
Display is widely used in concert, stage, sports events, fashion shows, exhibitions and so on.
Basic data:
There is DIP, SMD, and Dotmatrix LED display for customer choosing.
This module can be change into Pixels as followed to cater for various needs: P4, P4.75, P6, P7.62, P10, P12, P14, P16, P20, P25, P31.5, P40, P80.
Application of LED display:

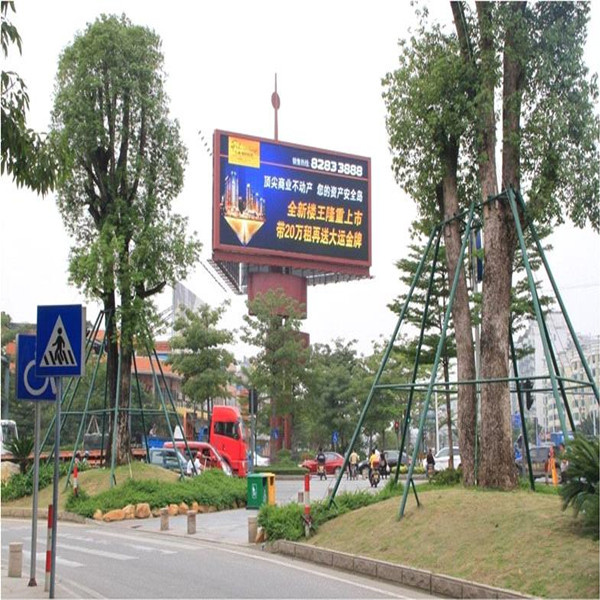

Wide applied in stadiums, advertisement, banks, securities exchange, stations, shoping malls
Postal officees, schools, monitoring, restaurants, entertainment, enterprises etc...
Trade Terms:
1. Payment: T/T, 35% deposits before production, 65% balance to be paid before dleiverying (Western Union or Moneygram are welcomed)
2. Production lead time for 100~500PCS: 10days, 500~1000PCS: 15days
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Shenzhen, Mainland China
6. Discounts are offered based on order quantities
7. MOQ: 1PC
Our service:
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, any your customized screen we can help you to design and put into product.
4. Distributoer ship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
| Description | Technical parameter |
| Unit module | Module size | 256*128mm |
| Pixel pitch | 8mm |
| Pixel density | 15625dots/m2 |
| Pixel configuration | 1R1G1B |
| Led specification | 3528 SMD 3 in 1 |
| Pixel resolution | W: 32dots*H: 16dots |
| Cabinet | Dimension | 768mm*768mm*150mm |
| Quantities of module | 32pcs |
| Power supply | 4pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 40kg |
| Best viewing angle | 2-100m |
| Temperature | Storage: -35° C~+85° C |
| Working: -35° C~+85° C |
| Thickness | 15cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 200-300W |
| Max. Power consumption | ≤ 320W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | 1/16scanning |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 300Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 2200cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. |
| Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM |
| Software | LED media player |
| Description | Technical parameter |
| Unit module | Module size | 192*96mm |
| Pixel pitch | 6mm |
| Pixel density | 27777dots/m2 |
| Pixel configuration | 1R1G1B |
| Led specification | 3535 SMD 3 in 1 |
| Pixel resolution | W: 192dots*H: 96dots |
| Cabinet | Dimension | 768mm*768mm*150mm |
| Quantities of module | 32pcs |
| Power supply | 4pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 40kg |
| Best viewing angle | 2-100m |
| Temperature | Storage: -35° C~+85° C |
| Working: -35° C~+85° C |
| Thickness | 15cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 200-300W |
| Max. Power consumption | ≤ 320W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | 1/16scanning |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 300Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 2200cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. |
| Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM |
| Software | LED media player |
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
