| Price: | US $ 445-469/Square Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Square Meter |
| Pay Type: | L/C,T/T,Paypal,Western Union |
2.Waterproof:The Standard of LED Cabinet is IP65, which it can protect the rain and dust into the screen.You can fixed install the screen in the rainy day.

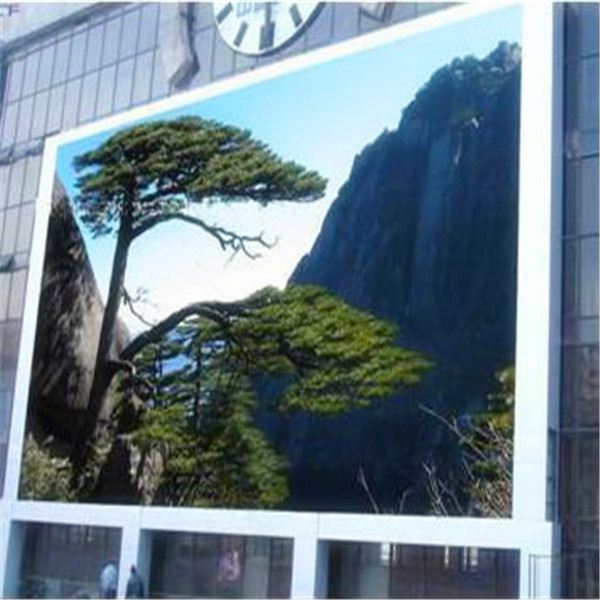

3.Wide Used in the outdoor:Widely used in Public,street advertising,shopping mall.Plaza station,Building billboard, expressway,ect
4.Energy Saving and Pro-Environment:Such as P10 outdoor Full color led display,100sq.M;If it is spent for 14hours/day,total 365 days/year.The Energy Saving led display will be save over 10,000 hours than traditional screen each year.
Trade Terms: |
|
Payment terms: | 35% deposit before production, 65% balance before shipping |
Packing: | -Standard Export Carton with fully Polyfoam or Pearl Wool |
Shipping: | LED module: 3 to 5 working days upon receiving deposit payment |
After-Sales-Service: | -Lifetime with professional engineer support. Problem |
Function and Technology Character
| Number | Item | P10p8 |
| 1 | Pixel pitch | 10mm 8mm |
| 2 | Size of Module | 160mm X 160 mm 256x128mm |
| 3 | Resolution of Module | 16 X 16 32x16 |
| 4 | Density of pixel | 10000dots/m2 15625dots |
| 5 | Pixel configuration | 1R1G1B |
| 6 | Red wavelength | 625± 2nm |
| 7 | Green wavelength | 525± 2nm |
| 8 | Blue wavelength | 470± 2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | 8-200m |
| 11 | Horizontal viewing angle | 140° |
| 12 | Maximum power consumption | ≤ 800W/m 2 |
| 13 | Brightness | ≥ 8000cd /m 2 |
| 14 | Gray scale | 16bits per color |
| 15 | Color temperature | 6500k |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | constant scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | ≥ 1920Hz |
| 20 | Working voltage | AC220V/110V± 10% |
| 21 | IP grade | IP65(adjustable) |
| 22 | Working temperature | -25º C~65º C |
| 23 | MTBF | > 10000 hours |
| 24 | Life span | > 100, 000 hours |
| 25 | Defects rate. | ≤ 0.00001(Led display line standard< 0.0001) |
| 26 | Computer operation system | Win XP/Vista/ Win 2000/WIN7ect. |
| 27 | Video signal | RF, S-Video, RGB, RGBHV, YUV, YC. ect |
our Services
1. Guarantee
(1) We guarantee all our displays, modules, parts for 2 - 5 full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, UL and so on.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional service
(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.
Certifications
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: What's the pixel pitch for Outdoor LED Display Screen?
A3: Outdoor (P6mm / P8mm/P10mm)
Q4: Where is it used for?
A4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.
Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Linsn controlling system.
Q6: What's the controlling system?
A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
Q7: How about the size of project?
A7: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
Q8: How about your service?
A8:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
| Prod Model: | FOX-P10 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: | P10 LED Display |
| Size Of Module: | 160mm X 160 mm |
| Resolution Of Module: | 16*16 |
| Density Of Pixel: | 10000dots/M2215625dots/M2 |
| Colors: | 16777216 |
| Best Viewing Distance: | 10-200m |
| Brightness: | >8000CD /M 2 |
| Refresh Frequency: | >1920Hz |
| Warranty: | 3 - 5 Year |
| Life Span Time: | 100,000 Hours |
| Tube Chip Color: | Full Color |
| IP Rating: | IP65 |
| Pixel Pitch: | 10mm |
| Pixel Configuration: | 1R, 1G, 1B |
| Display Function: | Video Display |
| Average Power Consumption: | 600W / m² |
| Pixel Density: | 10000 dot / m² |
| Scanning Mode: | 1/4 Scan |
| Display Type: | LED Video Display |
| Application: | Advertising |
| Certification: | CCC |
