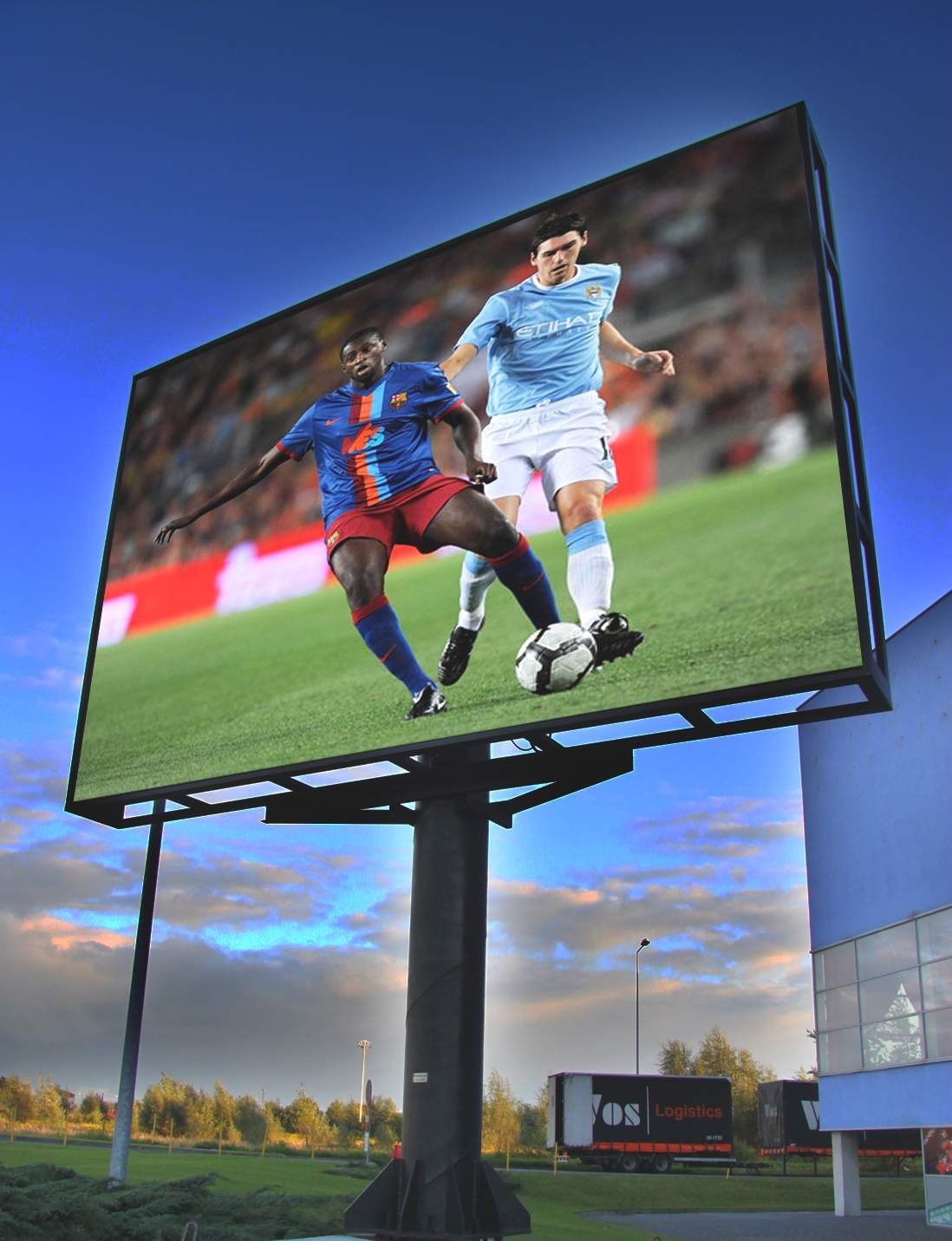

Outdoor P10 Full Color advertising Video LED display
Main features:
Epistar and Silan brand LED chips, MBI5024 driver IC, Meanwell Power supply, all are famous brand materials
Vivid image and video, rich in describing the details of color
High brightness ≥ 1500 CD/m2, automatically brightness adjust to environment, IP65 and range working temperature design, can meet your indoor using request
Signal and power automatically timing function, automatically running
Remote control, error detection, control center management function, feedback the error by SMS
DOT-DOT correction function support
Trade terms:
1. Hardware: LED display and video controlling system
2. Technical material: English version user manual, installation manual
And maintenance manual
3. Service:
Provide free technology support by phone and e-mail
7 years guarantee
4. Delivery: Approx 3-12 working days
5. Packing: Anti-shaking wooden package or Air Flight Case
6. Transportation: By sea or air or Express
Currently, FOXGOLDEN LED display is already exported to Asia, Europe, South America, North America, Africa and Middle East and other regions. We attained ISO9001: 2000, CCC. CE, FCC, RoHS etc
For more details, please feel free to contact us. We will give you best service and timely reply
Colorful
Outdoor LED screen, single color LED screen, red color LED screen, LED message screen, LED moving screen, LED screen billboard, LED video screen, sport LED screen
Varieties of LED screen products
P6mm, P7.62mm, P8mm, P10mmI, P10mmO, P12mm, P14mm, P16mm, P18mm, P20mm
Widely Use
Widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system, hospitals and other public places
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. The size can be change as you give, your customized lightings we can help you to design and put into product
3. What we show is some of our current models, welcome to give us your own ideas.
4. Protection of your sales area, ideas of design and all your private information
5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)
| Description | Technical parameter |
| Unit module | Module size | 160*160mm |
| Pixel pitch | 10mm |
| Pixel density | 10000dots/m2 |
| Pixel configuration | 1R1G1B |
| Led specification | Φ 5ellipse |
| Pixel resolution | W: 16dots*H: 16dots |
| Cabinet | Dimension | 960mm*960mm*100mm |
| Quantities of module | 39pcs |
| Power supply | 5pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 55kg |
| Best viewing distance | 10-300m |
| Temperature | Storage: -35~+85 |
| Working: -35~+85 |
| Thickness | 10cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 250-480W |
| Max. Power consumption | ≤ 560W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | Static scanning |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 400Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 8000cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM |
| Software | LED media player |
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
