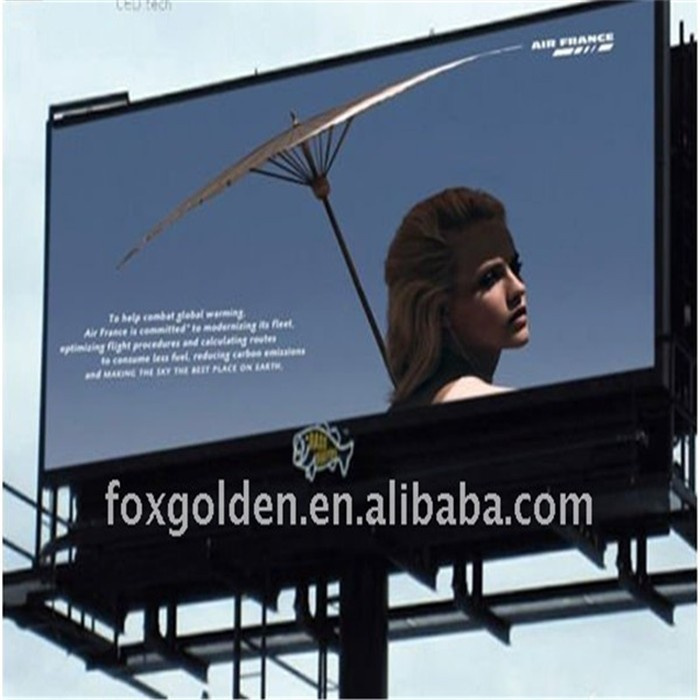

High Brightness P8 Outdoor Full Color LED Board
FOXGOLDEN GROUP LTD (www.foxgolden.com)is a professional high quality LED display manufacturer. Since 2004, we have been dedicating to the aim that producing high quality products, and now FOXGOLDEN has been well integrated in terms of R&D, produce, project, capital and marketing.
As a company based on market, we are going to be a world wide famous brand in LED display industrial.
| P8 outdoor DIP full color led display |
| No. | Item | P8 |
| 1 | Pixel pitch | 8mm |
| 2 | Module size | 256mm*128mm |
| 3 | Module resolution(dots) | 32*16 |
| 4 | Pixel configuration | 1R1pG1B |
| 5 | Pixel density | 15625dots/m² |
| 6 | Red wavelength | 625±2nm |
| 7 | Green wavelength | 525±2nm |
| 8 | Blue wavelength | 470±2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | 8m-300m |
| 11 | Horizontal view angle | 120° |
| 12 | Maximum power consumption | <1000W/m² |
| 13 | Brightness | ≥7000cd/m² |
| 14 | Gray scale | 16 bits per color |
| 15 | Color temperature | 6500k |
| 16 | Control method | Synchronization&Asynchronization |
| 17 | Driving method | 1/4 scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | ≥350Hz |
| 20 | Working voltage | AC220V/110V±10% |
| 21 | IP grade | IP 65 |
| 22 | Working temperature | -20°C~80°C |
| 23 | MTBF | >10,000 hours |
| 24 | Life span | >100,000 hours |
The following are our advantage:
1Quality is our cuture,We gurrantee our led display module or led display screen 3-5years.
2.Price is very reasonable,we are factory,no middle man or trade company here.
3.MOQ:led display module:1pcs,led display screen:1 sqm.
4.Delivery date:
1.LED display module:1-2000pcs,1-3days. 2000-10000pcs,3-6working days.
2.LED display screen:1-15sqm,2-5working days. 15-50sqm,7-15working days
Function and Technology Character
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously or offline does asynchronously
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via LAN and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
(10)Can be connected with PC and the website, and also can be controlled remotely via wireless controller
Amia Xiao---(Saler OXGOLDEN)
Alibaba: cn203931000
MP:0086 13560799149
Website:http://www.foxgolden.com
Foxgolden had been engaged in designing and manufacturing LED display for more than 11 years. Our products have certificates like CE/FCC/RoHS/NQA .
The best quality products and excellent service will be provided to you by our professional team
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
