Electronic outdoor LED billboards with Nova control system 27777 pixels / m2
The features are as below :
1.Highest definition , 27777 pixels /m2 .It is more than double higher definition than P10
2.SMD3535 led encapsulation confirm wide view angle and high brightness,
anti-corrosion,antifogging
3. Good uniformity ,ture color output
4. Good waterproof IP65
5. High contrast rate
6. Cabinet size can be customized
Description:

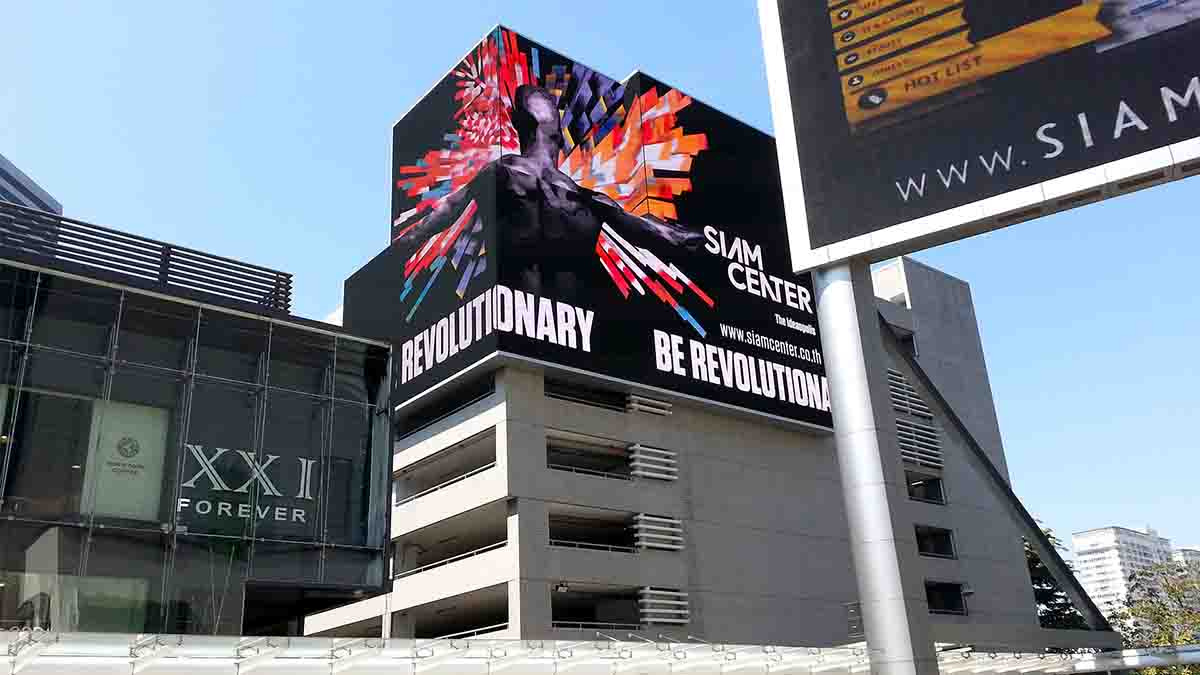

This is the highest resolution outdoor LED display for fixed installation .It shows extremely clear advertisiing information .If you want the best quality, this is your best choice !
Application :
Widely used for commercial advertising. It's new trend and soon it may take the place of DIP LED billboard
Specifications :
Model | P6 SMD3535 outdoor LED display for permanent installation |
Pixel pitch | 6mm |
Pixel density | 27777 dots /sqm |
Module size(W*H) | 192 mm(width)*192 mm(height) |
Module pixels(W*H) | 32 dots *32 dots |
Pixel configuration | 1Red 1Green 1Blue |
Drive mode | constant current driving 1/8 scan |
LED lamp type | Water-proof SMD3535 |
Cabinet size(W*H*D) | 960mm*960mm, it can be customized |
Color scale | 65,536 degree |
View angle(H/V) | 140/120 degree |
Brightness (White balance) | about 6500cd/sqm. |
Power consumption(one cabinet) | Max:1000W/sqm. Average:300W/sqm. |
Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
Net weight | 50Kg/sqm (iron cabinet), 40Kg/sqm (Aluminum cabinet) |
Operating temperature | -30°C----+60°C |
Operating humidity | 10%-95%RH |
Life time | ≥100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤0.5mm Juncture |
Frame frequency | 25-60 Hz/s |
Refresh rate | ≥2000Hz /s |
Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
Power | 110V/220V±15% 47--63Hz |
LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
Operating system | Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
Protection grade | IP65 |
Maintenance way | Rear Access |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
