Home LED Light Products High Quality Full Color LED Billboard / Outdoor Advertising LED Display (4X3m, 6X4m, 8X5m board P6 P8 P10 P16)

High Quality Full Color LED Billboard / Outdoor Advertising LED Display (4X3m, 6X4m, 8X5m board P6 P8 P10 P16)

High Quality Full Color LED Billboard / Outdoor Advertising LED Display (4X3m, 6X4m, 8X5m board P6 P8 P10 P16)
Price: US $ 600-800/Square Meter
Trade Terms: FOB,EXW,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Western Union

Enbon only produce High Quality Outdoor LED Display Screen with Nationstar LED ,the best LED supplier in China . It's normally for commercial advertising. LED screen size can be customized . It can around 3*2 m, 4*3m , 6*4m, 8*3m ,10*6m etc.

Other features :

1) We have many models : P4 ,P5, P6, P8, P10 ,P16 . The definition and prices differ a lot . You can choose based on the installation environment and your budget .

2) All our outdoor LED display screen use Nationstar high quality LED ,quality is very high . Less dead lamps even used over 2-3 years .It can save much money for maintenance.

3) All our outdoor models are IP65 waterproof and dustproof ,can work under harsh environment .

4) The brightness is high , can be over 6000 nits or higher , no problem at all even under direct sunlight .

5) Our cabinet is designed with back covers at rear side for better waterproof function . There are side locks , waterproof power and signal connectors for easy installation .

6) We have the most competitive prices based on all good material we use . Our quality is very repliable and we win very good reputation in the market !

7) We use MBI 5124 driver IC from Taiwan ,refresh rate is very high , > 1920 hz/s. No scanning lines when photograghed .

Please contact us for an offer . I believe you will be satisfied with our quality ,price and service .

Some pictures showing below for your reference :

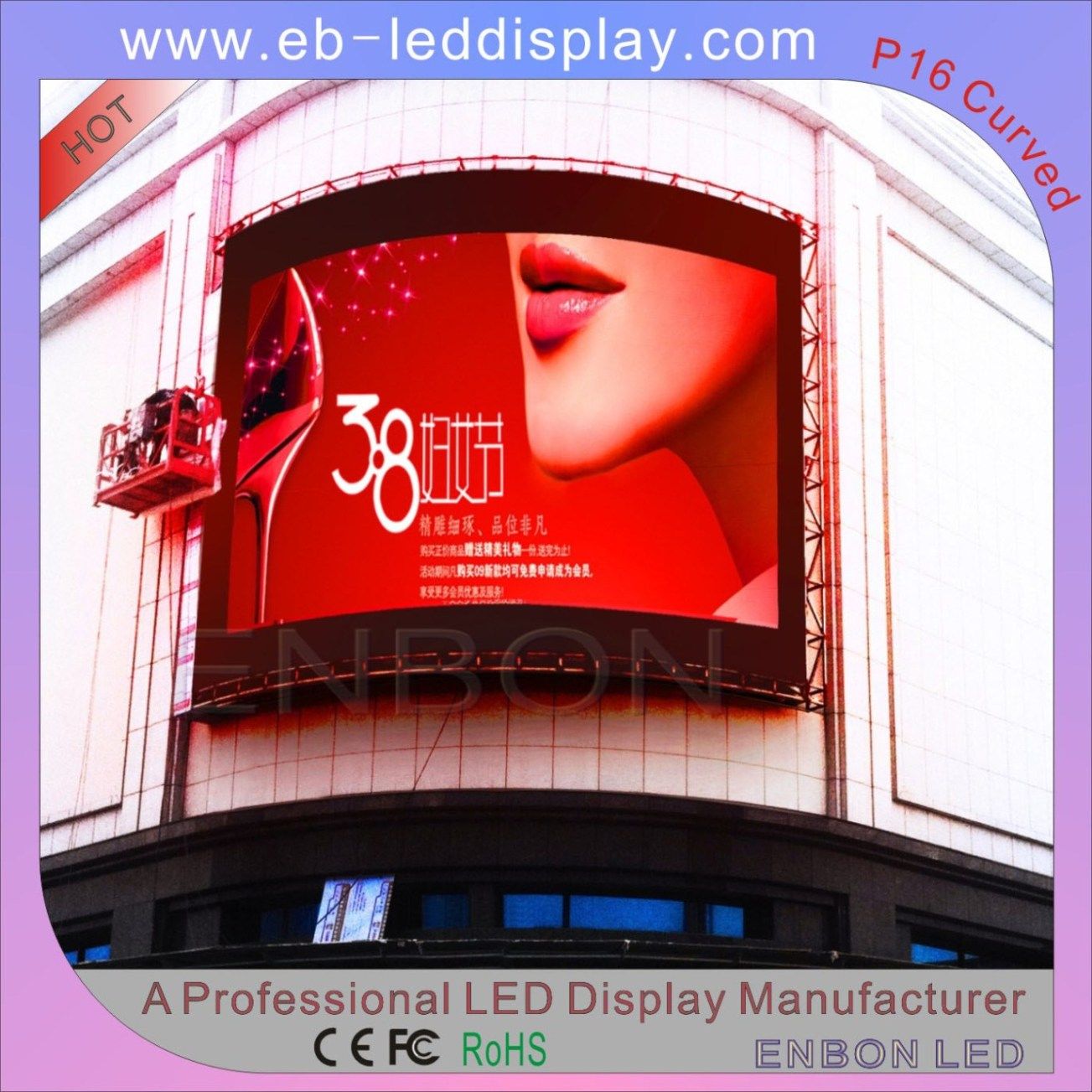

Please notice that our LED screen can also be curved and front maintenance ! Please contact us for more information What s a p p  0086 1-3-5-4-4-1-0-5-2-4-7

Some pictures from our factory showing as below:

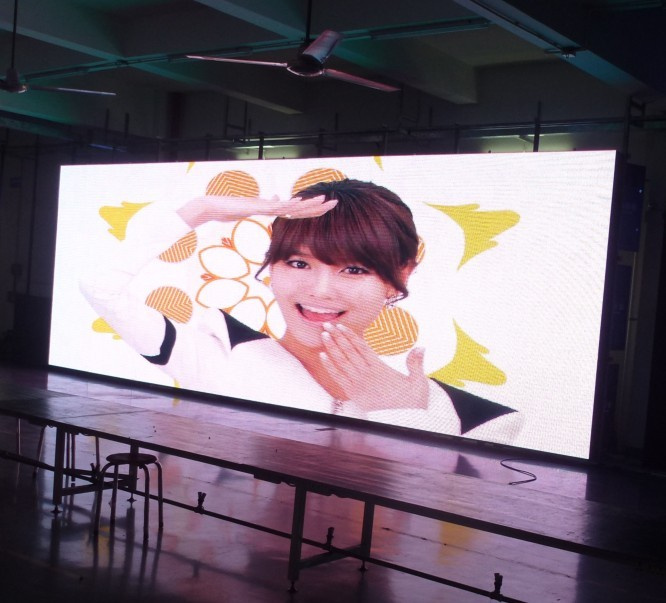

P5 outdoor led display screen aging in our factory .

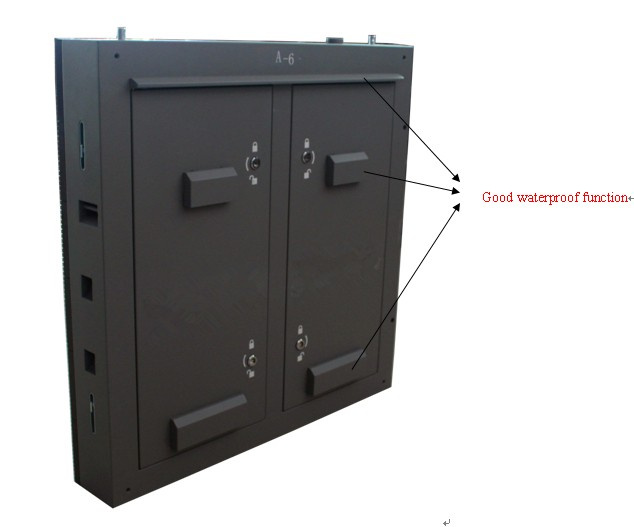

                                                     Outdoor LED screen back

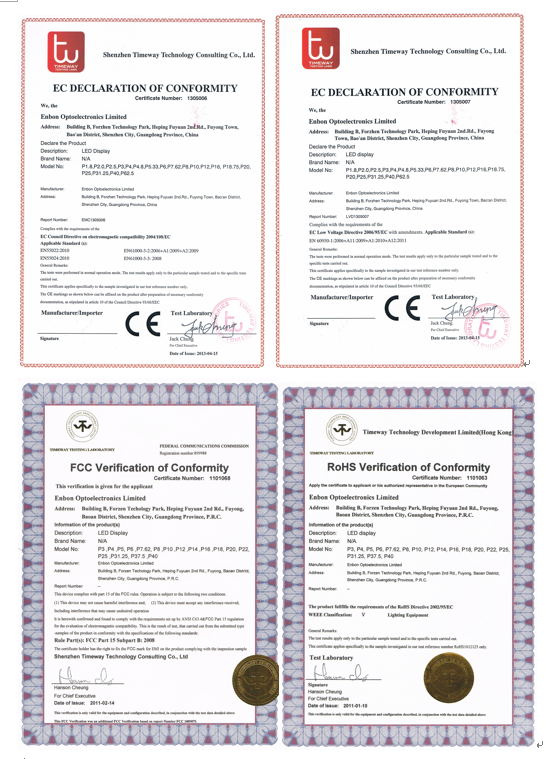

We have CE ,FCC and Rohs certificates for export , no problem at customs .

Technical Prameters
PROJECTP5 outdoor commercial LED screen
Pixel pitch5mm
Pixel density40000 Pixels/sqm
Module size(W*H)160 (mm)W160 (mm)H
Module pixels(W*H)32 Pixels(W)32 Pixels(H)
Pixel configuration1Red 1Green 1Blue
Drive modeconstant current driving ; 1/8 scan
LED lamp typeSMD2727 Nationstar brand
Cabinet size(W*H*D)960 (mm)W960 (mm)H
Cabinet resolution192 Pixels(W)192 Pixels(H)
Color scale65,536 degree
View angle(H/V)120/120 degree
Brightness (White balance)≥6000cd/sqm.
Power consumption(one cabinet)Max:900W/sqm.     Average:300W/sqm.
Operating VoltageAC100V±10% or 220V ±10%;   50---60HZ
Net weight50 Kg / M 2 for steel cabinet
Operating temperature-20°C----+50°C (Customized power supply:-45°C---+60°C)
Operating humidity10%_95%RH
Life time≥100,000hours
MTBF5,000 hours
Whole Display Flatness≤0.5mm Juncture
Frame frequency>60 Hz/s
Refresh rate≥1920Hz /s
Control distance100m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power 110V/220V±15% 50--60Hz
LED control systemLINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable
Operating systemWindows 2000 / Windows Xp / Windows 7
Protections for outdoor display  IP65
Maintenance wayRear  Access
Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
Technical Prameters
PROJECTP6 outdoor commercial LED screen
Pixel pitch6mm
Pixel density27777 Pixels/sqm
Module size(W*H)192 (mm)W192 (mm)H
Module pixels(W*H)32 Pixels(W)32 Pixels(H)
Pixel configuration1Red 1Green 1Blue
Drive modeconstant current driving ; 1/8 scan
LED lamp typeSMD2727 Nationstar brand
Cabinet size(W*H*D)960 (mm)W960 (mm)H
Cabinet resolution160 Pixels(W)160 Pixels(H)
Color scale65,536 degree
View angle(H/V)120/120 degree
Brightness (White balance)≥6000cd/sqm.
Power consumption(one cabinet)Max:900W/sqm.     Average:300W/sqm.
Operating VoltageAC100V±10% or 220V ±10%;   50---60HZ
Net weight50 Kg / M 2 for steel cabinet
Operating temperature-20°C----+50°C (Customized power supply:-45°C---+60°C)
Operating humidity10%_95%RH
Life time≥100,000hours
MTBF5,000 hours
Whole Display Flatness≤0.5mm Juncture
Frame frequency>60 Hz/s
Refresh rate≥1920Hz /s
Control distance100m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power 110V/220V±15% 50--60Hz
LED control systemLINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable
Operating systemWindows 2000 / Windows Xp / Windows 7
Protections for outdoor display  IP65
Maintenance wayRear  Access
Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI



Why choose Enbon?

  1. Enbon is a modern ,big and professional manufacturer of LED display screens over 8 years. We have strong R&D to ensure high end products with user-friendly design .
  2. We have a wide variety of products for you to choose from .All products are strictly tested before release to market and we test every LED screen 72 hours before delivery.
  3. The prices are very competitive due to our large-scale procurement of raw material.   We can help you to win more orders if you are distributors.End users will also be satisfied with our quality and price.
  4. We have CE, FCC and Rohs certificates. Our products are exported over 80 countries .We have rich experience in handling all possible problems when you import goods from China .
  5. Our sales are well trained to offer professional advice on your specific projects. Processional engineers are on standby, can offer guidance, on site technical support as requested.
  6. We offer 2-3 years warranty and life time maintenance .Even when warranty time expires , we only charge material costs
Prod Model: P10 LED display
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 80 Square Meters
Shape: Flat or Curved
Installation: on Pillar or Wall or Top of Building
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 300W / m²
Pixel Density: 10000 dot / m²
Scanning Mode: Static Scan
Display Type: LED Video Display
Application: Advertising
Certification: CCC
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.

All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.

Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.

Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
