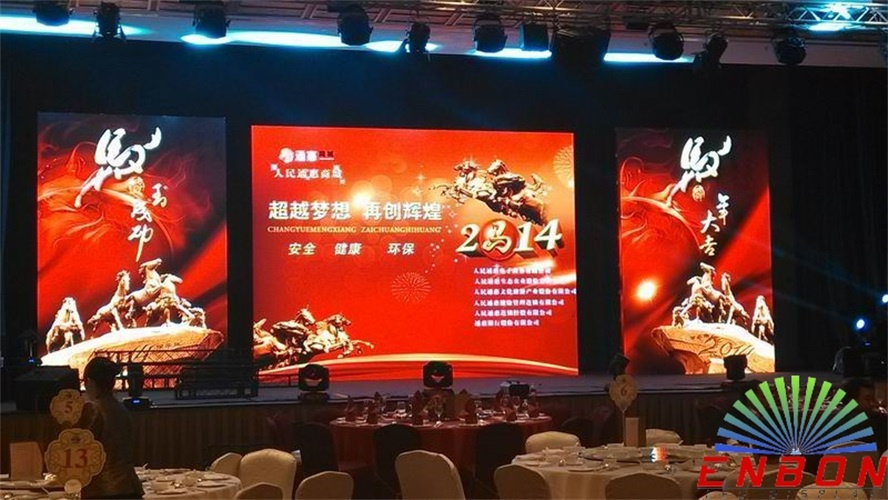

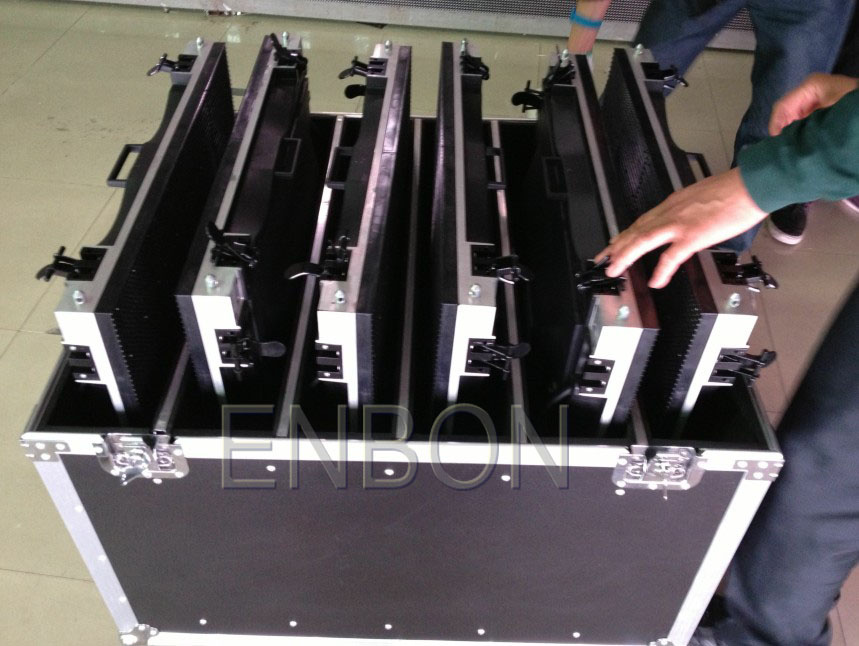

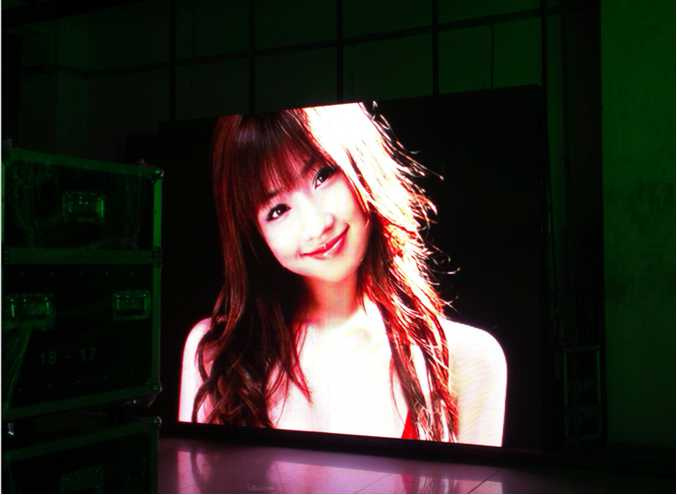

High Brightness full Color LED Outdoor advertising Display for Stage (pH6.67, p8, p10 die-casting). It can be suspended on Truss or Stacked on Ground. Our rental LED is ultra-thin and super light. With die-asting aluminum cabinet, strong, light and precise, very portable for rental application. This LED screen can be suspended on truss or stacked on ground.
The features of this outdoor full color LED board/LED video wall as bellow.
1. No flat cable design, quality is more stable and it looks very neat inside, with a fan inside, good for heat dissipation
2. IP65 standard, good for outdoor use
3. High brightness, over 7000nits, can work well in day time under direct sunshine
4. Higher refresh rate: Over 2000Hz/s, no scan line
5. High resolution, can reach 62500pixels/sq. M.
6. Die-casting aluminium cabinet, Durable & stable LED display.
7. Normally we use CREE LED from USA or Epistar LED from Taiwan
8. MBI5020, MBI5024, MBI5041, MBI5050 are optional
9. We offer 2-3 Years warranty.
ENBON Optoelectronics limited invents in developing die casting aluminum cabinet outdoor Rental LED display screen, to enter high-end market. At present, more and more high-end Renatal LED display outdoor adopts a relatively high precision die-casting process, the use of molds forming a more secure cabinet flatness, keeping tolerance control, basically solved the problem in cabinet patchwork; Also, die-casting Aluminum cabinet breakthrough the traditional one, with a more beautiful appearance., not easy to go rusted too.
Parameters:
|
| Pixel Pitch | P8 | P10 | P6.67 |
|
| LED Chip | AXT | AXT | Epitstar |
|
| LED lamp type | SMD3535 | SMD3535/DIP346 | SMD3535 |
|
| Pixel density | 15625 dots/m 2 | 10000 dots/m 2 | 22478 dots/m 2 |
|
| Cabinet Size(mm) | 640*640*60mm | 640*640*60mm | 640*640*65mm |
|
| Cabinet pixels(W*H) | 80*80 dots | 64*64 dots | 96*96 dots |
|
| Driving Method | 1/4 scan | 1/4 scan | 1/4 scan |
|
| Driving IC | MBI5020 / MBI5024 / MBI5041/MBI5050 | MBI5020 / MBI5024 / MBI5041/MBI5050 | MBI5020 / MBI5024 / MBI5041/MBI5050 |
|
| Refresh Rate | ≥2000Hz | ≥2500Hz | ≥2500Hz |
|
| Brightness | ≥5000CD/m 2 | ≥7500CD/m 2 | ≥6000CD/m 2 |
|
| Max.Power Consumption | 1000w/m 2 | 750w/m 2 | 750w/m 2 |
|
| Average power consumption | 400w/m 2 | 250w/m 2 | 250w/m 2 |
|
| Cabinet Material | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum |
|
| The weight of single cabinet | 13.5Kg/Cabinet | 13.5Kg/Cabinet | 13.5Kg/Cabinet |
|
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
