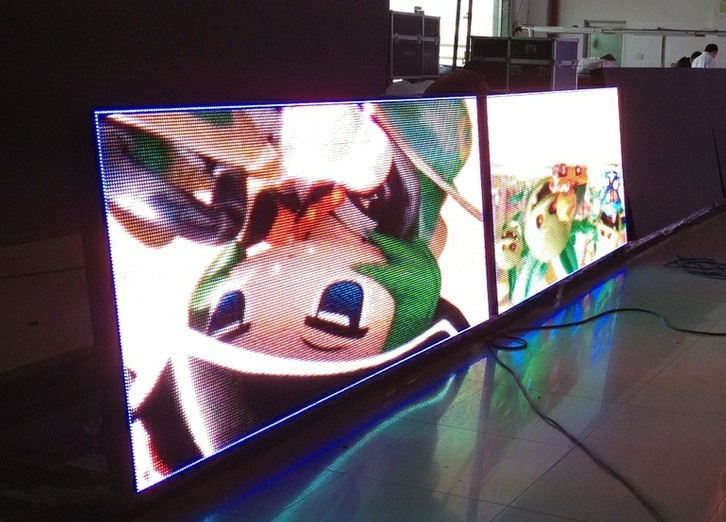

P10 Font Service LED advertising display board is advamtaged in easy repair and maintenance; Hydraumatic jackstay open and close.
The front service LED display (front side maintenance LED display ) leaves out the space for back maintenance of the screen, making maintenance at front side come true. To some special places to install LED display, we can make the whole screen to be thin.
Easy installation, light weight, can hang mount on the wall, Lifting rely on the wall.
ENBON front side maintenance LED screen is suitable for all range of pixel pitch, and currently the best sold items are: P7.62mm, P10mm, P16mm, P20mm.
Based on the traditional cabinet structure, the hydraumatic jackstay and the fast lock makes it not only labour saving, but also open and closed convenient. The cabinet measurement, material and thiness are all can be customized.
Outdoor series: PH10, pH12, pH16, pH20, pH25, etc.
Indoor series: PH4, pH5, pH6, pH7.62, pH8, pH10.
WE ARE VERY PROFESSIONAL IN MAKING THIS LED DISPLAY,WELCOME TO SEND AN INQUIRY FOR MORE INFORMAITON!
| Technical Prameters of P10 |
| PROJECT | P10 outdoor LED billboard(DIP346) |
| Pixel pitch | 10 mm |
| Pixel density | 10000 Pixels/sqm |
| Module size(W*H) | 320 W(mm) | 320 H(mm) |
| Module pixels(W*H) | 32Pixels(W) | 32 Pixels(H) |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/4 scan |
| LED lamp type | DIP246 |
| Cabinet size(W*H*D) | 640 W(mm) | 640 H(mm) |
| Cabinet resolution | 80 Pixels(W) | 80 Pixels(H) |
| Color scale | 65,536 degree |
| View angle(H/V) | 110/70 degree |
| Brightness (White balance) | ≥7000cd/sqm. |
| Power consumption(one cabinet) | Max:750W/sqm. Average:250W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 17.5 Kg/Cabinet |
| Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.1mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m(without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50--60Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 |
| Protections for outdoor display | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
