| Price: | US $ 1000-2000/Square Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Square Meter |
| Pay Type: | L/C,T/T,Paypal,Western Union |

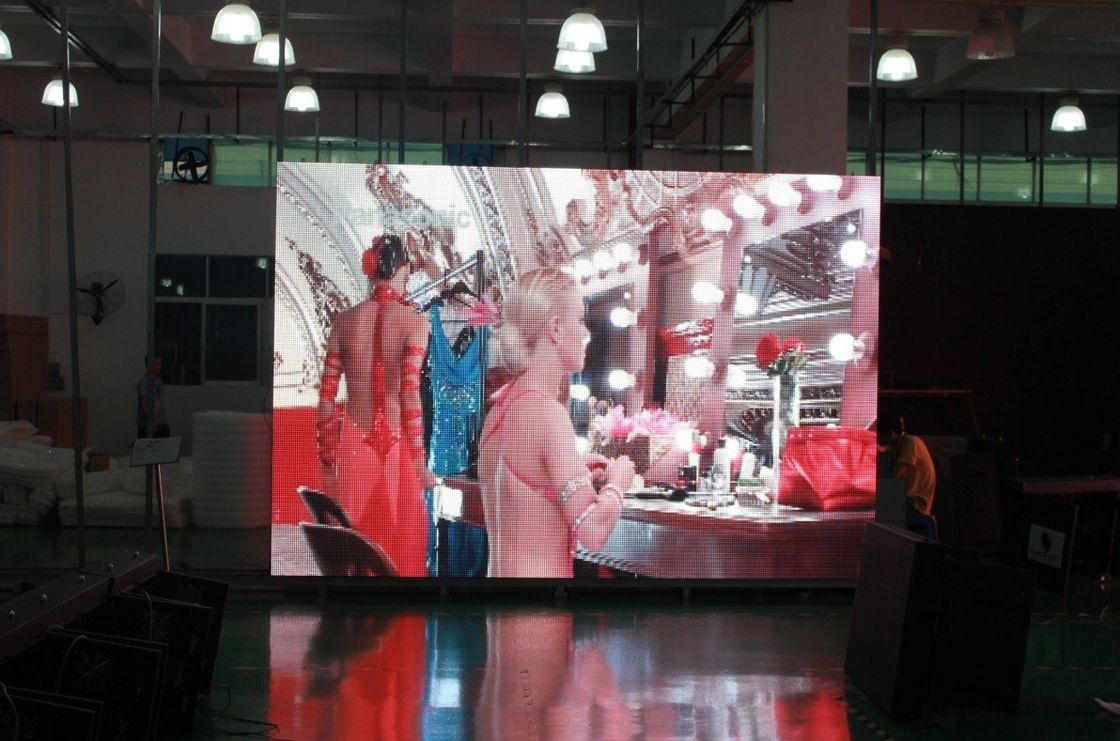

P6 Indoor SMD Full color LED display:
Company Description:
FOXGOLDEN GROUP LTD is a professional high quality LED display manufacturer. Since 2004, we have been dedicating to the aim that producing high quality products, and now FOXGOLDEN has been well integrated in terms of R&D, produce, project, capital and marketing.
As a company based on market, we are going to be a world wide famous brand in LED display industrial.
shipping:
1.FCL - Full Container Loading
2.LCL - Less Container Loading
3.EXPRESS
4.Air Shipment
Payment:
1.T/T
2.L/C
3.PayPal
4. Credit Card
5. West Union
| Description | Technical parameter | |
| Unit module | Module size | 192*96mm |
| Pixel pitch | 6mm | |
| Pixel density | 27777dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Led specification | SMD3528 | |
| Pixel resolution | W: 192dots*H: 96dots | |
| Cabinet | Dimension | 768mm*768mm*150mm |
| Quantities of module | 32pcs | |
| Power supply | 4pcs | |
| Thermal discharge | Fan*2pcs | |
| Total weight | 21kg | |
| Best viewing angle | 4-100m | |
| Temperature | Storage: -35~+85 | |
| Working: -35~+85 | ||
| Thickness | 15cm can adjustable | |
| Remarks: cabinet size can changed, upon project need. | ||
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 200-300W | |
| Max. Power consumption | ≤ 320W/sqm | |
| Current | ≤ 20mA(single LED) | |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | 1/16scanning |
| Drive type | Constant Current driver IC | |
| Refresh frequency | ≥ 300Hz | |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color | |
| Brightness of white balance | More than 2200cd/sqm | |
| Brightness adjustment | 256 levels of each color(R/G/B)by software | |
| Operating ambient humidity | 10%--95% | |
| Video signal | PAL/NTSC | |
| Control system | DVI display card+full color controller card | |
| MTBF | ≥ 10, 000hours | |
| Life span | ≥ 100, 000hours | |
| Flatness | Tolerance of interpixel ≤ 0.3mm | |
| Tolerance of modules clearance≤ 0.6mm | ||
| Power switch | Automatic switch | |
| Display mode | 1024*768 | |
| Communication distance |
Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM |
|
| Software | LED media player | |
| Prod Model: | FOX-SMD-P6 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: | 192X96mm |
| Tube Chip Color: | Full Color |
| Display Function: | Video Display |
| Scanning Mode: | 1/16 Scan |
| Application: | Music Concert |
| Pixel Configuration: | 1R,1G,1B |
| Pixel Pitch: | 6mm |
| IP Rating: | IP43 |
| Certification: | CCC |
| Pixel Density: | 27,777 dots / m² |
| System Operating Platform: | WIN XP |
