Product Description:
- (1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
- (2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
- (3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
- (4) Line-Double technology is adopted for the picture adjustment.
- (5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
- (6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.
Application:

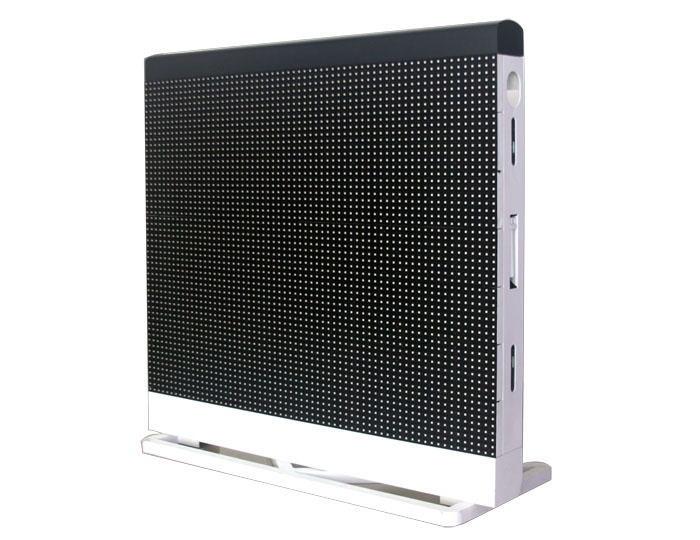

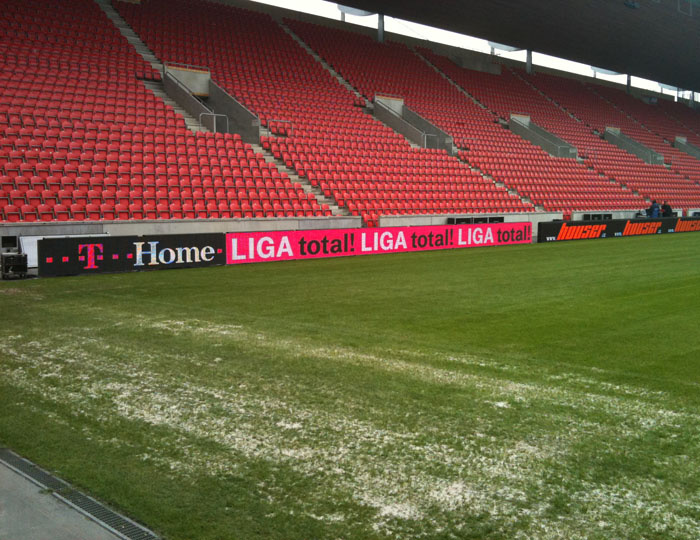

The Sports led Display is most commonly used for showing scores/live matches and advertising for instance in a football ground, cricket ground, baseball ground, etc for outdoor purposes and also indoor as well for basketball, ice hockey, tennis court,. We have the experience of providing both indoor and outdoor perimeter displays. The below is an example of the technical specs with reference to a 16mm outdoor led perimeter display. For more information on other pixel pitch, drop us an e-mail and we will reply with full details.
Application:
It can display characters, graphs, and widely used to issue all kinds of information in pubilic as follows:1. Service propaganda in finances, post offices, telecom, commerce, hospitals, sports stadiums
2. Policies and decrees issued from government organizations3. Instructions, guidance and information issuance in airports and railwaysTechnical Features:1. Preeminent effects: Clear and stable pictures without distortion and disturbance.
2. High quality: Adopting first-class chips and wafers imported from abroad
3. Flexible form: Continuity, overlying, combination of dynamic and static playing, various effects include rolling moving, typewriting, gradual changing and so on
4. Off-line running function: Adopting the monolithic design technology and computer string communication way, which can operate in off-line state setting the dates and revising a data via the telephone line.Company Description:
FOXGOLDEN GROUP LTD (www.foxgolden.com)is a professional high quality LED display manufacturer. Since 2004, we have been dedicating to the aim that producing high quality products, and now FOXGOLDEN has been well integrated in terms of R&D, produce, project, capital and marketing.
As a company based on market, we are going to be a world wide famous brand in LED display industrial.
shipping:
1.FCL - Full Container Loading
2.LCL - Less Container Loading
3.EXPRESS
4.Air Shipment
Payment:
1.T/T
2.L/C
3.PayPal
4. Credit Card
5. West Union
Good After-sales service:
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English .
3.OEM&OM, any your customized screens which we can help you to design and put into product.
4.Distributor ship are offered for your unique design and some our current models .
5.Protection of your sales area, ideas of design and all your private information.
About us:
We provide you Good Quality Product with Reasonable Price:
1. Every Product with Strict Quality Control;
2. OEM & ODM Product Sampling and Production;
We also offer you Best trading Service, such as following:
1. Related Product Sourcing Service;
2. Complete Buyer Agent Service;
3. Inspection Service;
4. Custom Clearance Service;
5. Shipping Service;
6. Other Documentaions and Certifications Service.

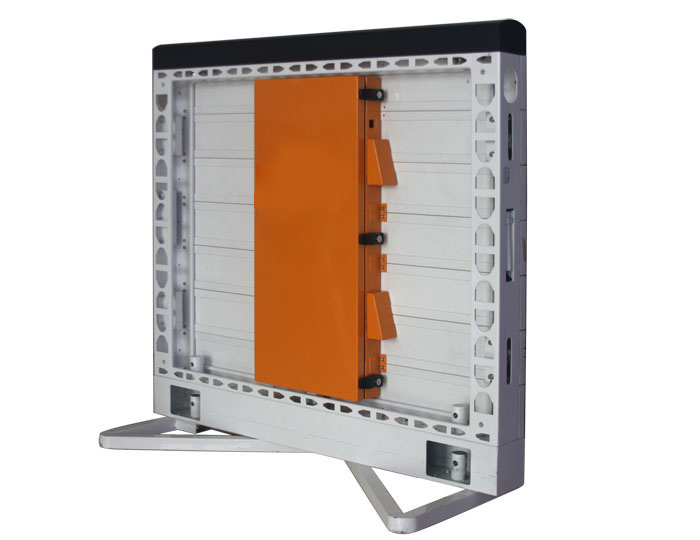

| Pixel Pitch: | 16mm | 16mm | | LED type: | DIP 5454 | DIP346 | | Brightness: | 7000nits | | Pixel density : | 3906/sqm | | Brightness | 7000 nits | 7500 nits | | Driving IC | MBI5024 | MBI5024 | | Power consumption/tile : | average 300w/m2, max 650w/m2 | average 250w/m2, max 450w/m2 | | Module Size(mm) | 160×160 mm | 256×128 mm | | Cabinet Size(mm) | 960×960 mm | 1024×896 mm | | Operation power voltage : | 110-220 V / 50-60 HZ | | Tile/size (W×H×D) in mm : | 1024×896×120 | | Tile/display surface in sqm : | 0.92 | | Cabinet weight: | 43kg | 45kg | | IP rating : | IP65/54 | | Processing: | 16 bit | | Refresh rate : | >1200HZ | | Max stacking : | 20 cabinets | | Max power cascade connection : | 5 cabinets | | Operating Temp/Humidity : | Temp:-20~ 50 Humidity10~90%RH | | Storage Temp/Humidity: | Temp:-40~ 60 Humidity10~90%RH | | Operation humidity: | 10-90% | | Storage humidity: | 10-90% |
|
|
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
