Feature and Advantage
1. Waterproof: IP67front, IP65back
2. Best viewing distance: 8-150m
3. White balance brightness: More than 8000CD/sqm
4. Horizontal viewing angle: 120degree
5. Working temperatue: -30degree-+80degree
6. Life span: More than 100, 000hours
7. Contrast ratio: 4000: 1
8. Pconsumption: 600W
Application and Market
1. Application

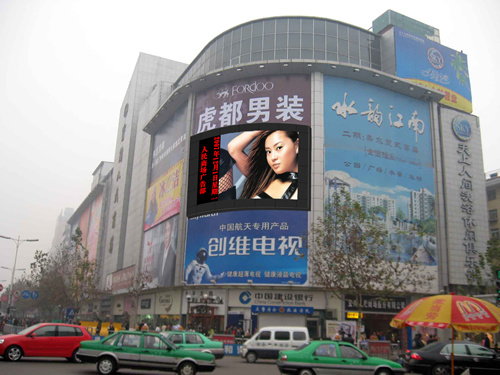

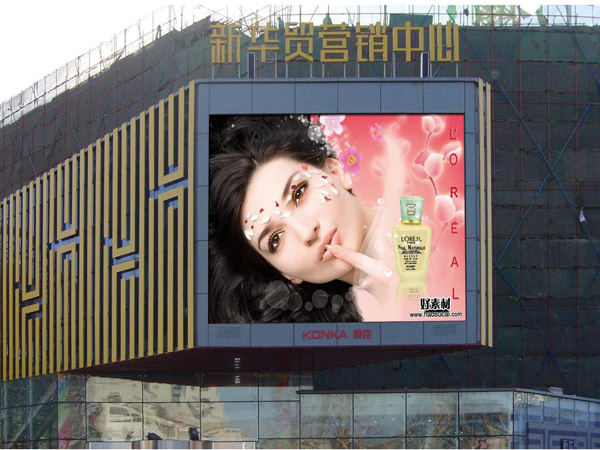

Advertising outdoor LED display widely use in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, restaurants, entertainment, enterprises, highway etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Our service1. Your inquiry related to our products or price will be replied in 24hrs2. OEM, any your customized lightings we can help you to design and put into product3. Distributoership are offered for your unique design and our current models4. Protection of your sales area, ideas of design and all your private information
Trade Terms
1. Package: Wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits, 60% balance before delivery 3. Shipping port: Shenzhen
4. Warranty time: 7years
5. Delivery time:
Sample order, 3working days;
10sqm-50sqm, 8-18working days;
50sqm-100sqm, 25-28working days;
|
Description |
Technical parameter |
|
Unit module |
Module size |
160*160mm |
|
Pixel pitch |
10mm |
|
Pixel density |
10, 000dots/m2 |
|
Pixel configuration |
1R1G1B |
|
Led specification |
Φ 3ellipse |
|
Pixel resolution |
W: 16dots*H: 16dots |
|
Cabinet |
Dimension |
960mm*960mm*110mm |
|
Quantities of module |
36pcs |
|
Power supply |
6pcs |
|
Thermal discharge |
Fan*2pcs |
|
Total weight |
50kg |
|
Best viewing angle |
10-100m |
|
Temperature |
Storage: -35degree~+85degree |
|
Working: -20degree~+80degree |
|
Thickness |
11cm can adjustable |
|
Remarks: cabinet size can changed, upon project need. |
|
Power |
Working voltage |
AC220V/110V± 10% |
|
Average power consumption |
600W |
|
Max. Power consumption |
≤ 1000W/sqm |
|
Current |
≤ 20mA(single LED) |
|
Control system |
CPU |
Pentium4 or above |
|
Operating system |
WIN98/2000/NT/XP |
|
Control method |
Synchronization |
|
Main technical parameter |
Driving device |
1/4scanning |
|
Drive type |
Constant Current driver IC |
|
Refresh frequency |
≥ 400Hz |
|
Grey scale/colors |
256 levels of each color(R/G/B)/16.7M color |
|
Brightness of white balance |
More than 9000cd/sqm |
|
Brightness adjustment |
256 levels of each color(R/G/B)by software |
|
Operating ambient humidity |
10%--95% |
|
Video signal |
PAL/NTSC |
|
Control system |
DVI display card+full color controller card |
|
MTBF |
≥ 10, 000hours |
|
Life span |
≥ 100, 000hours |
|
Flatness |
Tolerance of interpixel ≤ 0.3mm |
|
Tolerance of modules clearance≤ 0.6mm |
|
Power switch |
Automatic switch |
|
Display mode |
1024*768 |
|
Software |
LED media player |
