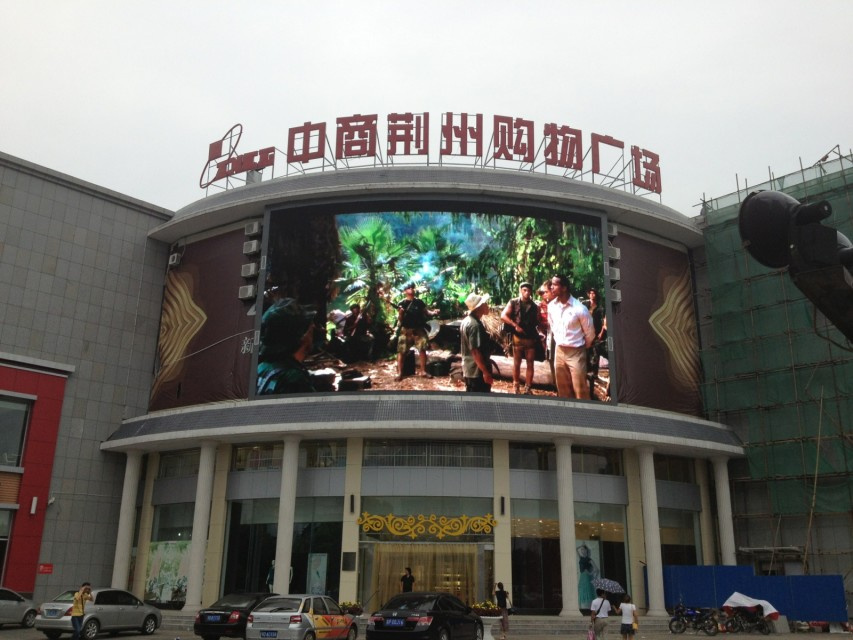

P10 outdoor Curved LED Display for shopping mall
Introduction:
Your LED display needs to be mounted on a wall with radian ? No problem ! Enbon has such technology to make it curved with perfect radian .
Features :
1) The cabinet is designed curved so the LED screen can be same shape as the wall
2) The brightness is over 7500 nits, no problem to be viewed clearly even under direct sunlight
3) IP65 protection , waterproof and dustproof
4) Best viewing distance is over 10 meters
5) The radian can be customized
Parameters:
Model | P10 DIP outdoor LED display for permanent installation |
| Pixel pitch | 10mm |
| Pixel density | 10000 dots /sqm |
| Module size(W*H) | 160 mm(width)*160 mm(height) |
| Module pixels(W*H) | 16 dots *16 dots |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/4 scan |
| LED lamp type | Water-proof DIP346 |
| Cabinet size(W*H*D) | 960mm*960mm, 800mm*800 etc |
| Color scale | 65,536 degree |
| View angle(H/V) | 110/70 degree |
| Brightness (White balance) | about 7500cd/sqm. |
| Power consumption(one cabinet) | Max:750W/sqm. Average:200W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 60Kg/sqm (iron cabinet), 40Kg/sqm (Aluminum cabinet) |
| Operating temperature | -30°C----+60°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | 25-60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 47--63Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
| Protection grade | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
