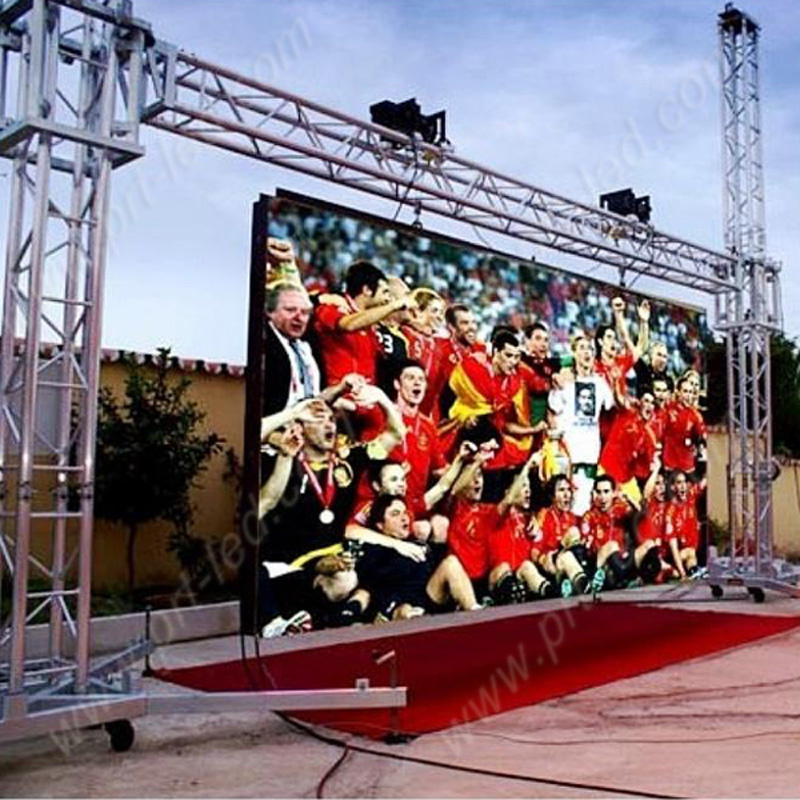

Outdoor P8 High Brightness SMD LED Display

                                            Outdoor P10 high brightness SMD LED Display

Description	Technical parameter
Unit module	Module size	160*160mm
	Pixel pitch	10mm
	Pixel density	10000dots/m2
	Pixel configuration	1R1G1B
	Led specification	Φ 5ellipse
	Pixel resolution	W: 16dots*H: 16dots
	color	1R1G1B
Cabinet	Dimension	960mm*960mm*120mm
	Quantities of module	36 pcs
	Power supply	5 pcs
	Thermal discharge	Fan*2pcs
	Total weight	45kg
	Best viewing angle	8-200m
	Temperature	Storage: -35° C~+85° C
		Working: -35° C~+85° C
	Thickness	17cm can adjustable
	Remarks: cabinet size can changed, upon project need.
Power	Working voltage	AC220V/110V± 10%
	Average power consumption	250-500W
	Max. Power consumption	≤ 560W/sqm
	Current	≤ 20mA(single LED)
Control system	CPU	Pentium4 or above
	Operating system	WIN98/2000/NT/XP
	Control method	Synchronization
Main technical parameter	Driving device	Static scanning
	Drive type	Constant Current driver IC
	Refresh frequency	≥ 400Hz
	Grey scale/colors	256 levels of each color(R/G/B)/16.7M color
	Brightness of white balance	More than 8000cd/sqm
	Brightness adjustment	256 levels of each color(R/G/B)by software
	Operating ambient humidity	10%--95%
	Video signal	PAL/NTSC
	Control system	DVI display card+full color controller card
	MTBF	≥ 10, 000hours
	Life span	≥ 100, 000hours
	Flatness	Tolerance of interpixel ≤ 0.3mm
		Tolerance of modules clearance≤ 0.6mm
	Power switch	Automatic switch
	Display mode	960*960
	Communication distance	Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM
Software



1.Dust-proof:High-temperature spray technology: can greatly increase the capability of rust-proof.

2.Moudle planeness: ≤ ±0.2mm

3.Super uniformity in color.

4.Long life-span.Use wave soldering technology for circuit board, prevent from humidity and oxidation, can extend its use life.

5..Energy-saving.Use high efficiency switching power supply, reduce failure rate of power supply.

6.Silicagel is filled and embedded on the front face of the display module, and the all-door structural design protects the LED display from water, dust, and corrosion,antifreeze.

7.Passed IP67 waterproof and dustproof test.

8.High reliability.Flexible to work under different climate condition, can work normally in all harsh environment, such as strong wind, sandstorm, high temperature, low temperature, dryness, rainstorm, and so on.

Our Services
1. Guarantee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.

2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.

3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.

4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE,RoHS ,SGS, UL and so on.

5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional service
(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.

 Company Information
We offer complete LED screen service solution to every customer .
We ranked 9th in LED industry .
We are a LED industry trading platform.
We produce new environmentally friendly energy-saving high-tech LED screen.
Thanks for 11-year customer trust on FOXGOLDEN.
Thanks for 11-year LED material supplier support on FOXGOLDEN.
Thanks for 11 -year FOXGOLDEN family constant effort .
We have 11-year production experience .
We have 11-year  designing   experience.

Trade Terms:

Payment terms:	35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow
Packing:	-Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case
Shipping:	LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment
After-Sales-Service:	-Lifetime with professional engineer support. -Within 1 year, supply spare parts for free if the machine has quality problem


Warmly welcome to visit FOXGOLDEN !!!! -:)
