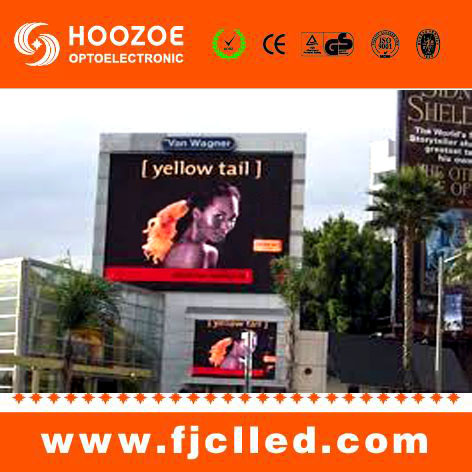

Outdoor Display/Full Color/P8 Outdoor Display
1. Certification: ISO9001: 2000, CCC, CE, FCC, RoHS, EMC
2. Energy saving.
3. Colorful, fresh & beautiful images.
4. Competitive price.
5. Superior Uniformity
6. Extra-high Brightness
LED Display Sales Service--24 HOURS ON CALL
1. Service before sales
On-site inspect
Professional design
Solution confirmation
2. Training before operation
Software use
Safe operation
Equipments maintenance
3. Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation
4. After sale service
Quick response
Prompt question resolving
Service tracing
|
Outdoor P8 Full Color LED Display |
|
Pixel |
Physical pixel pitch: 8 mm |
|
Module |
Module resolution: 32 x 16pixel |
|
Module size: 256mm x 128mm |
|
Cabinet |
Cabinet size: 768mm x 768mm x 150mm |
|
Material: Mild steel/Aluminium alloy (corrosion resistant) |
|
Power supply: 3pcs 5V-80A; Thermal discharge: Fan 2pcs |
|
Main Technical Parameter |
Brightness ( White Balance): > 6500 nits |
|
Brightness adjusted: 256 grade by software, or by Auto-optic induced |
|
Color temperature(k): 2500 _ 4500 (adjustable) |
|
Physical density: 15625 pixels/m 2 |
|
Whole display flatness: ≤ 0.6mm juncture |
|
Best view distance: 8--24m |
|
Best view angle: Horizontal ± 120° , Vertical ± 70° |
|
Storage temperature: -35° C ~ +85° C Working temperature: -30° C ~ +60° C |
|
Driving method: Constant driving current, Scan: 1/4 Scan |
|
Refresh frequency: ≥ 3000Hz ; Frame rate: ≥ 60Hz |
|
Humidity(RH): 10 ~ 95% |
|
Working Voltage: AC 110v/220v± 10% 47~64Hz |
|
Short circuit protection: Yes |
|
Max power consumption: 1000 w/m2; Avg power consumption: 300 w/m 2 |
|
Screen lifetime: 100, 000 hours; MTBF: 10, 000 hours |
|
Control System |
Operating system |
WIN2000/NT/XP/Vista/WIN7 |
|
Control method |
Synchronization |
|
Signal interface: RF, S-Video, RGB, RGBHV, YUV, YC, SDI, HD-SDI, DVI, UXGA, etc. |
|
Communication distance: Internet cable: ≤ 100m/ Fiber cable: 1000m |
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.
Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.
In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.
with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.
We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.
"Channel Cailiang" Sincererly Invite your participation!
