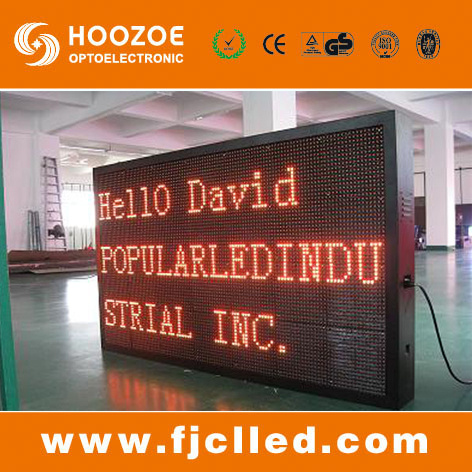

Outdoor P10 Led Display
Outdoor P10 Led Display is one of our featured products. High bright LED oval lamps and superior plastic package suite are adopted, which are not easy to be damaged and ensure the best viewing angle.
Product introduction
P10 Single Red Led Display is mainly used for displaying text and image. Constant voltage a and current chip reduce the power consumption and prompt the stability. Simple module design is low-cost and easy to maintain. Neat appearance, light weight, and 5V safe voltage power supply system make the module more attractive. Besides, this product has some other features, such as waterproof front side and damp-proof back side, outdoor all-weather work, locating hole design and cabinet design, etc. And high brightness with uniform luminance is suitable for outdoor distant viewing.
Company Introdution
Fujian Hoozoe Optoelectronic co., Ltd. Is a high tech enterprise, which has been specialized in LED DISPLAY with registered capital RMB30 million. Now we have been one leading supplier of LED products and application solutions with more than 1200 staff, covering an area of 53, 000 square meters manufacturing base. The advanced automatic assembly lines enable us to produce more than 20, 000 pcs outdoor and indoor modules per day and 35, 000 square meters display screens per month. With integrated R&D, manufacturing, marketing and service systems, we engaged in providing high-quality led products and solutions for all customers, including full color LED display of indoor and outdoor, cabinets, modules, LED panels and electronic industrial display, etc. Our products have passed ISO9001-2008, 3C, CE and UL, etc.
Outdoor P10 LED Display
Description |
Technical parameter |
Specification |
Module size |
320*160mm |
Pixel pitch |
10mm |
Pixel density |
10, 000dots/m2 |
Pixel configuration |
1R |
Pixel resolution |
W: 32dots x H: 16dots |
Module weight |
0.68 kgs/pc |
Best viewing angle |
10-100m |
Temperature |
Storage: -35º C ~ 80º C |
Working: -20º C ~ 80º C |
Brightness of white balance |
2500-3500cd/sqm |
Operating ambient humidity |
10%--95% |
MTBF |
≥ 10, 000hours |
Life span |
≥ 100, 000hours |
Flatness |
Tolerance of interpixel ≤ 0.3mm |
Tolerance of modules clearance≤ 0.6mm |
Power switch |
Automatic switch |
Horizontal viewing angle |
120degree |
Vertical viewing angle |
110degree |
Warranty time |
2 years |
Control method |
Synchronization or asynchronization |
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.
Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.
In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.
with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.
We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.
"Channel Cailiang" Sincererly Invite your participation!
