High Performance Full Color LED Display for Outdoor

High Performance Full Color LED Display for Outdoor
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 100/Piece
Pay Type: T/T,Western Union
Outdoor P10 Full Color Led Display
one of our featured products. High bright LED oval lamps and superior plastic package suite are adopted, which are not easy to be damaged and ensure the best viewing angle.

Product Introduction
Outdoor P10 Full Color Led Display is mainly used for displaying videos. Constant voltage a and current chip reduce the power consumption and prompt the stability. Simple module design is low-cost and easy to maintain. Neat appearance, light weight, and 5V safe voltage power supply system make the module more attractive. Besides, this product has some other features, such as waterproof front side and damp-proof back side, outdoor all-weather work, locating hole design and cabinet design, etc. And high brightness with uniform luminance is suitable for outdoor distant viewing.

Company Introduction

Previous name Channel Cailiang (Zhangzhou) Optoelectronics Co.,Ltd, with a register capital 30 million RMB. Production base covers 53,000sqm standard workshop, is equipped with several advanced automatic assembly lines that supported by more than 1200 skilled workers including 12% engineers and technician. Factory offers low cost high performance led displays, led modules, led screens amount to 250,000sqm per month.

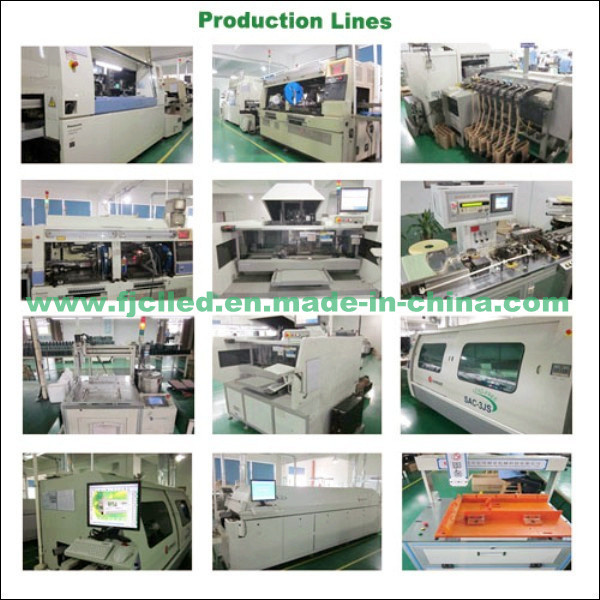

1. Fully Automatic Production Lines
Channel Cailiang owns the entire LED display manufacturing line, encapsulate original Semiconductor to LED chip, then assemble to led display lighting products.

2. Advanced Production Equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP led, Spectrum and Color Separation Machine, LED oven,Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. are equipped for our LED Product production.

3. Many Certificates Approved
CE, FCC, UL, RoHS, CCC,ISO9001:2000 certified

4.Strong R&D Team
Huajie Opto absorbs more than 1200 skilled staffs, and including about 150 engineers and technician, which paves the way for R&D for new products and excellent sales service!

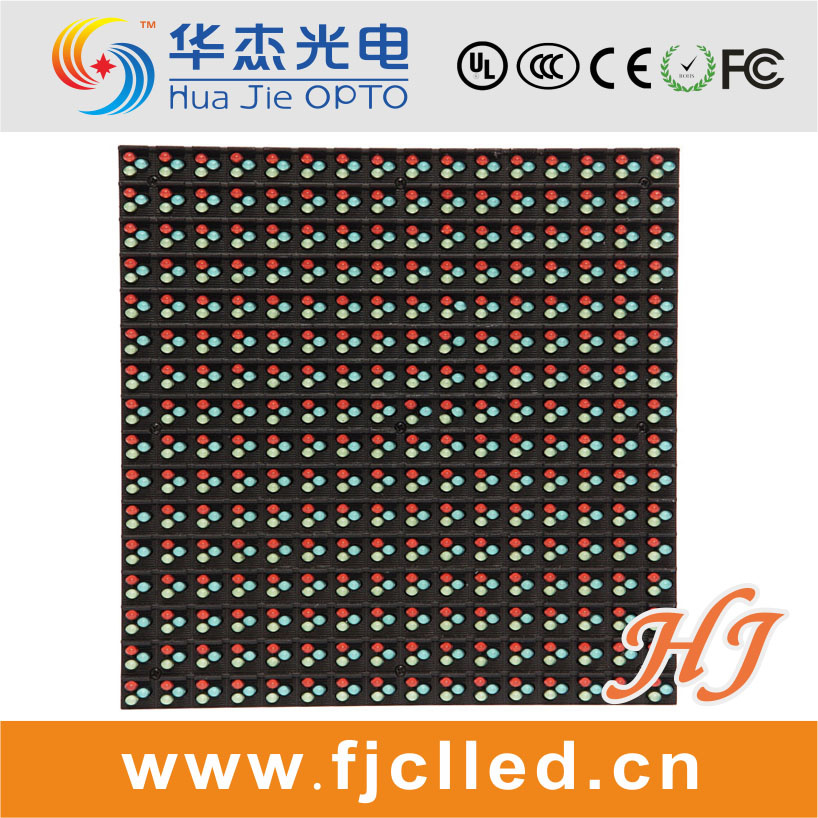

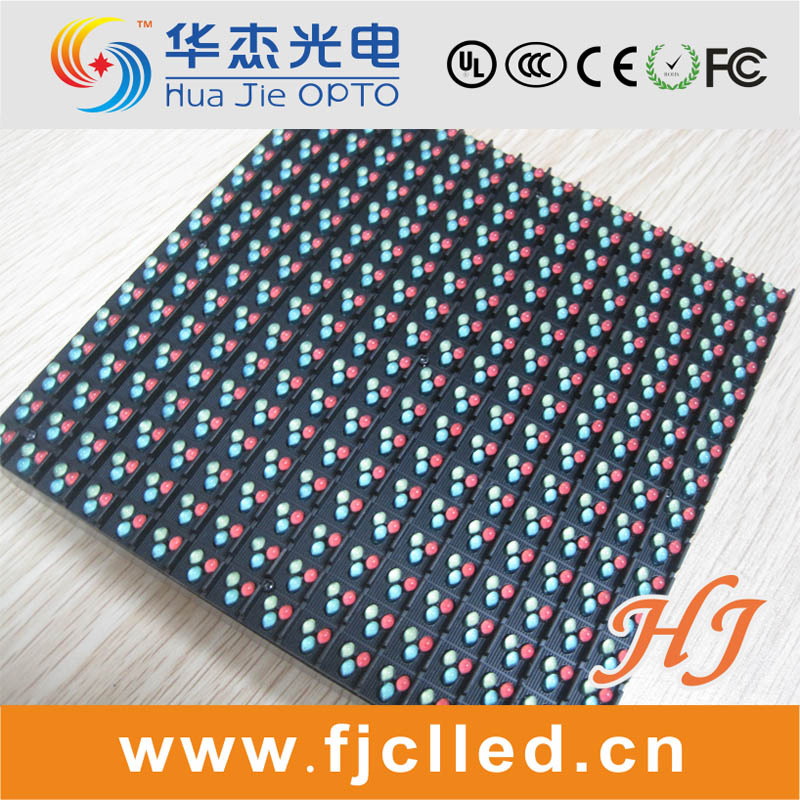

P10 Full Color Outdoor Module
Item Unit Parameter
Pixel Pitch mm 10.00
Pixel Density dots/sqm 10,000
Resolution of Module dots  16x16
Module Size mm 160x160
Led Package                     DIP Oval 346 lamp
Pixel Configuration                           1R1G1B
Chip Brand of LEDs                         Epistar
Module Weight kgs/pc 0.5
Brightness (White Balance) nits(cd/sq.m) 6,500
Red Wavelength nm 620-625
Green Wavelength nm 520-525
Blue Wavelength nm 470-475
Scan Mode                            1/4 Scan
View Distance M  5~100
Best View Distance M  12.5~33
Viewing Angle-Horizontal deg. 110
Viewing Angle-Vertical deg. 60
Module Maximum Power W 33.4
Max. Power Consumption W/sq.m 1,302
Avg. Power Consumption W/sq.m 390
Working Voltage                            40A 5V
Power Supply                            AC 110/220V
Waterproof Grade                           IP65
Refresh Rate Hz/S 3,000
Frame Rate Hz/S ≥60
Gray Scale                           4096 grades gray
Display Function             Text,news,advertising,flash,animation
Luminance Degradation  Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25 centigrade.
Defective Dot Rate   <0.0002
Life Span hours 100,000
MTBF hours >10,000
Storage Temperature centigrade  -35 -- +80
Working Temperature centigrade  -20 -- +80
Control System Synchronization or Asynchronization
Quality Certificate CE,CCC,ISO9001:2008
Warranty 2 Years
Working Environment Outdoor

Prod Model: CL-P10-RGB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size: 160mmx160mm
Resolution Of Module: 16*16dots
Brightness: ≥6500
Viewing Angles: H120/V70
Viewing Distance: 8~88m
Working Temperature: -30°~+60°
Warranty: 2 Years
Chip Brand: Epistar
Via Publica LED: Alquiler Pantallas LED
Grafica LED: Publicidad LED
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Pixel Pitch: 10mm
Display Function: Video Display
Scanning Mode: 1/4 Scan
Certification: CCC
Pixel Density: 10000 dot / m²
Average Power Consumption: 300W / m²
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.

Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.

In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.

with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.

We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.

"Channel Cailiang" Sincererly Invite your participation!
