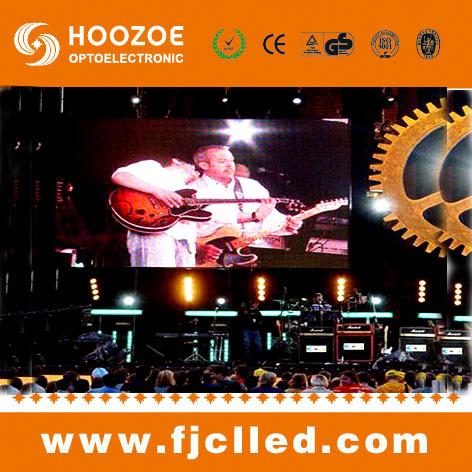

High Definition Full Color Outdoor Advertising LED Display

High Definition Full Color Outdoor Advertising LED Display
Price: Negotiable/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 100/Piece
Pay Type: T/T,Western Union
FUJIAN HUAJIE OPTOELECTRONIC Co., Ltd

Previous name Channel Cailiang (Zhangzhou) Optoelectronics Co., Ltd, with a register capital 30 million RMB. Production base covers 53, 000sqm standard workshop, is equipped with several advanced automatic assembly lines that supported by more than 1200 skilled workers including 12% engineers and technician. Factory offers low cost high performance LED displays, LED modules, LED screens amount to 250, 000sqm per month.

1. Fully Automatic Production Lines
Channel Cailiang owns the entire LED display manufacturing line, encapsulate original Semiconductor to LED chip, then assemble to LED display lighting products.

2. Advanced Production Equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP LED, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. Are equipped for our LED Product production.

3. Many Certificates Approved
CE, FCC, UL, RoHS, CCC, ISO9001: 2000 certified

4. Strong R&D Team
Huajie Opto absorbs more than 1200 skilled staffs, and including about 150 engineers and technician, which paves the way for R&D for new products and excellent sales service!
P10  Full color Outdoor  Module
Item Unit Parameter
Pixel  Pitch mm 10.00
Resolution  of  Module dots  16x16
Module  Size mm 160x160
Led  Package                                                                                                                                                                           DIP  Oval  346  Lamp
Pixel  Configuration                                                                                           1R1G1B
Chip  Brand  of  LEDs                                                                                                     Epistar
Module  Weight kgs/pc 0.65
Pixel  Density dots/sqm 10, 000
Brightness  (White  Balance) nits(cd/sq. m) 7000
Red  Wavelength nm 620-625
Green  Wavelength nm 520-525
Blue  Wavelength nm 470-475
Scan  Mode                                                                                                 1/4  Scan
Viewing  Distance  M 5~100
Best  View  Distance M 12.5~33m
Viewing  Angle-Horizontal deg. 110
Viewing  Angle-Vertical deg. 60
Module  Maximum  Power W 20
Max.   Power  Consumption W/sq. m 400
Avg.   Power  Consumption W/sq. m 100~250
Working  Voltage                                                                                                     40A  5V
Power  Supply                                                                                                 AC  110/220V
Waterproof  Grade                                                                                               IP65
Refresh  Rate Hz/S 300
Frame  Rate Hz/S ≥   60
Gray  Scale                                                                                               256  grade
Display  Function                                                                                         Texts
Input  Signal                                                                             RS232/485,   USB, Ethernet
Luminance  Degradation  Less  than  5%  after  1000  hours  Ageing  test,   testing  current  30mA,   under  normal  temperature  25  centigrade.
Defective  Dot  Rate                                                                                               < 0.0001
Life  Span hours 100, 000
MTBF hours > 5, 000
Storage  Temperature centigrade   -35  --  +80
Working  Temperature centigrade   -20  --  +80
Control  System   Asynchronous  or  Synchronous
Quality  Certificate CE, CCC, ISO9001: 2008
Warranty 2  Years
Working  Environment Outdoor
Prod Model: CL-P10RGB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size: 160mm X 160mm
Module Resolution: 16 X16 Pixels
Module Weight: 0.465kg
Brightness (White Balance): 7000nits
Viewing Distance: 5~100m
Best View Distance: 12.5~33mm
Viewing Angles: H110;/V 60;
Gray Scale: 4096 Grades Gray
Refresh Rate: 3000Hz
Warranty: 2 Years
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Display Function: Video Display
Scanning Mode: 1/4 Scan
Certification: ETL
Pixel Density: 10000 dot / m²
Average Power Consumption: 220W / m²
Pixel Configuration: 1r1g1b
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.

Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.

In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.

with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.

We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.

"Channel Cailiang" Sincererly Invite your participation!
