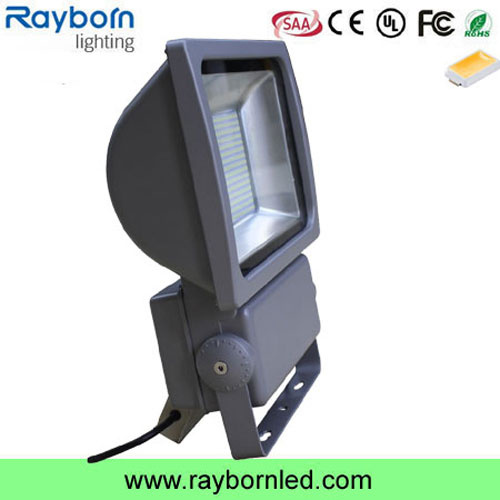

Outdoor 30000lm 250W 300W Stadium LED Light for Sport Field
Specifications:
LED Floodlight/Outdoor LED Flood lighting (10-600w)
| 250W LED Industrial Light Main Technical Parameters |
| Item No.: | RB-FLL-250WS |
| Input Voltage: | AC85-265V |
| Freqency Range: | 50Hz~60Hz |
| Power Driver: | Mean Well HLG |
| Power Factor: | >0.98 |
| Power Efficiency: | >91% |
| LED Power | 250W |
| LED QTY: | 504PCS 5630 LED |
| LED Working Voltage: | DC 42~48V |
| System Consumption: | 310W |
| LED Luminous Flux | Warm White | 24300 |
| Pure White | 25100 |
| Cool White | 25500 |
| Viewing Angle: | 100degree |
| Centre Illuminance | Height 10M | 127lux |
| Height 20M | 32lux |
| Height 30M | 37lux |
| Illuminance Area | Height 10M | Dia.2261cm points visible |
| Height 20M | Dia.4523cm points visible |
| Height 30M | Dia.6780cm points visible |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 3000K~3500K |
| Pure White | 4000K~4500K |
| Cool White | 6000K~6500K |
| Color Rendering Index | Ra>78 |
|
| Light Distribution: | LED points visible |
| Light Design: | LED+Reflectors secondary light distribution |
| LED Junction Temperature: | ≤115ºC |
| Working Temperature: | -40ºC~50ºC |
| Working Life-span: | 50000 H |
| IP Grade: | IP65 |
| Power Line: | 1.0 mthree line |
| Connect Wire | Brown | L |
| Blue | N |
| Yellow / Green | G |
| Size: | 430*410*138mm |
| Net Weight: | 10.3KG |
LED Flood light Features :
LED flood light adopted optical light distribution, that is no glare, no light pollution, highly directional light and more even luminous beam.
1, High bright imported LED chip as light source:
Led flood light with good heat dissipation, low light depreciation, pure light color, no double-shadow High intensity, high resistance of shock or vibration etc.
2, Universally wide range voltage(AC85-265V):
Led flood light advanced constant-current driver be used which can start quickly, be high safety and reliability.
3, Unique heat sink design:
Led flood light perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.
4, Surface treatment:
Led flood light static sprayed leading to better heat-resisting, high weather resistance, corrosion resistant, water proof and dust proof.
5, Energy saving:
Led floodlight use high power LED and it is equipped with imported high efficient power, save more than 70% energy compare with sodium lamp.
Competitive Advantage :
1. CE & RoHS & SAA IP65 approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 7-20 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
LED Flood light 12hours aging test :
All product must have 12hours more aging test, inspection department will test 100% product for light up test, power wattage test and so on.
LED Floodlight Applications :
Widely used in factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.
