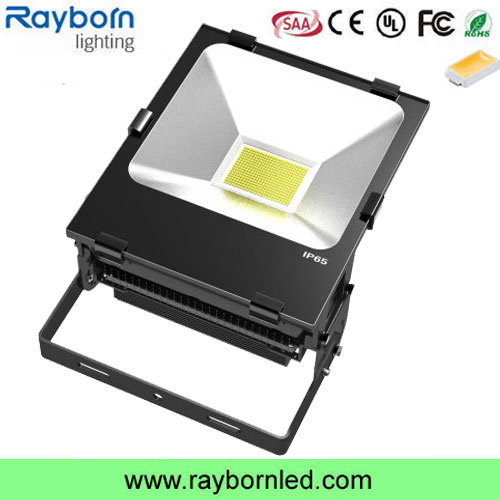

Modern Style IP65 MW Driver 200W Outdoor LED Tunnel Light

Modern Style IP65 MW Driver 200W Outdoor LED Tunnel Light



Specifications:
LED Floodlight/Outdoor LED Flood lighting (10-600w)

200W LED Floodlight Main Technical Parameters
Item No.:		RB-FLL-200WS2
Input Voltage:		AC100-277V
Freqency Range:		50Hz~60Hz
Power Factor:		>0.98
Power Efficiency:		>90%
Lamp Driver		Meanwell
LED Chip:		Samsung Chip
LED Power		200W
LED QTY:		200PCS LED
LED Working Voltage:		DC 30~36V
System Consumption:		205W
LED Luminous Flux	Warm White	18400LM
	Pure White	19200LM
	Cool White	20000LM
Center Illuminance	4 Meter	538lux
	4.5 Meter	425ux
	6 Meter	239 lux
Viewing Angle:		120 degree
Illuminance Uniformity:		>0.6
Color Temperature	Warm White	3000K~3300K
	Pure White	4000K~4500K
	Cool White	6000K~6500K
Color Rendering Index		Ra>80
Light Distribution:		LED points visible
LED Junction Temperature:		≤115ºC
Working Temperature:		-40ºC~50ºC
IP Grade:		IP65
Working Life-span:		50000 H
Power Line:		1.0 m three line
Connect Wire	Brown	L
	Blue	N
	Yellow / Green	G

LED Flood light advantage :

LED Chip: Cree LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality.

Power Supply: SUNPER LED flood light use Meanwell UL approved driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92.

Colour temperature: LED floodlight provide a range of colour temperatures from 3000, 4000 and 6000 Kelvin helping to enhance a building's exterior.

Optics: Optical assembly: hermetically sealed providing IP65. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.

Housing: Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.

Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.
Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.

Certification: DLC FCC CE RoHS approval.
Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.

Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.


LED Flood light Features :

1.  High efficiency to meet rigorous photometric requirements.

2.  System rating 50,000 hours LM80 to reduce maintenance.

3.   LED Flood light has high-pressure cast aluminum electrical box painted electroplating both inside and outside, stainless steel or plating chromium fittings, making the installation flexible and convenient. Scuba patent technology making the optical system precision and efficiency.

4.  LED high efficiency and long life, not only provides a bright, diversity, lasting and innovative lighting environment, but also greatly reduce the purchase system and maintenance costs.
5.  Passed DesignLights Consortium (DLC) qualifications.

6.  Vented housing design isolates LED module from driver for long life and improved performance.

7.  Tempered glass lens protects LEDs and allows for easy cleaning/debris removal.

8.  Adjustable mounting bracket allows you to direct light where you need it.
9.  IP65 Rated .


LED Flood light 12hours aging test :

All product must have 12hours more aging test, inspection department will test 100% product for light up test, power wattage test and so on.


Applications :

Widely used in tunnel , factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.


Payment terms :

1. Payment: T/T, L/C at sight, Western Union ,Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discouts are offered based on order quantities


FAQ


1. What is the general business process?

Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service

2. What is the warranty?

Answer : 3~5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.

3. What is the payment term?

Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable

4. Can you offer free samples?
Answer : No, but sample fee can be refunded depending on the coming order amount.

5. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.

6. I don't know how many Led Flood Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.
