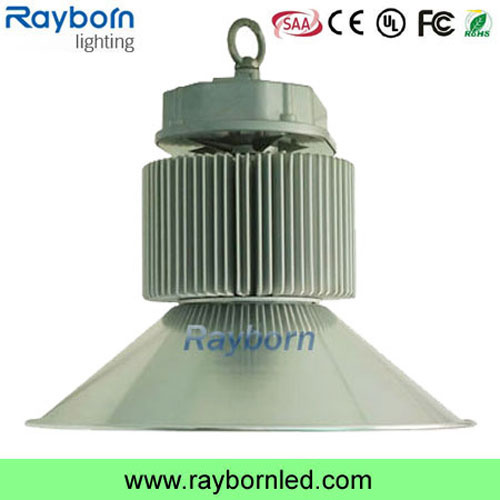

Mic Refrigeration Storage Gas Station 200W LED High Bay Light

Mic Refrigeration Storage Gas Station 200W LED High Bay Light


Product specifications:

Led high bay light/industrial high bay led lighting (30-500w)

200W LED Industrial Light Main Technical Parameters
Item No.:		RB-HB-515-200W
Input Voltage:		AC 100-277V
Freqency Range:		50Hz~60Hz
LED Chip:		Bridgelux 45 mil
Power Driver:		Mean Well
Power Factor:		>0.98
Power Efficiency:		>91%
LED Power		200W
LED QTY:		1pc*200W
LED Working Voltage:		DC 30~36V
System Consumption:		206W
LED Luminous Flux	Warm White	19200LM
	Pure White	20590LM
	Cool White	20590LM
Viewing Angle:		120degree
MaximumIlluminance	Height 3M	792LUX
	Height 4M	446LUX
	Height 5M	285LUX
Illuminance Area	Height 3M	Dia.8.7 M  points visible
	Height 4M	Dia.11.5M points visible
	Height 5M	Dia.14.5 M points visible
Illuminance Uniformity:		>0.6
Color Temperature	Warm White	3000K~3500K
	Pure White	5500K~5700K
	Cool White	6500K~6700K
Color Rendering Index		Ra>78
Light Distribution:		LED points visible
LED Junction Temperature:		≤115ºC
Working Temperature:		-40ºC~50ºC
IP Grade:		IP54/IP65
Working Life-span:		50000 H
Power Line:		1.0 mthree line
Connect Wire	Brown	L
	Blue	N
	Yellow / Green	G
Heatsink		Integration of Thermal conductivity Heat dissipation phase change technology
color of the lamp shell		Black and silver is available
Certificate		CE /UL/ROHS
Net Weight:		8.5KG

LED high bay lamp features:

1. Using single powerful led(30-500w)as the light source, with unique lighting design of multi-chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.

2. The unique design of radiator which can combine with the lamp box perfectly, diffuse the heat conduction efficiently, so that reduce the temperature of inside lamp, it ensures the led longlife-span.

3. The surface of radiator is treated by antiseptic and anodic oxidation; With compact structure and aesthetic appearance.

4. Environment-friendly, no air pollution, no lead-free, no-mercury.

5. With high color rendering index which can show a true color of things for people, kinds of light colors are available, meet the requirement of different environment; Clear up the depressive mood caused by lower or higher color temperature compared with conventional lamp, make more comfortable for people's eyes which can greatly improve people's working efficiency.

6. Adopted advanced constant current controlling techniques; Wide voltage range available and global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution; Avoid the stimulation and tiredness taking from long-time work.

7. Apply for unique surface treatment technology, welldecorated, novel style, easy to install, lower maintenance cost and wide in application.


LED High bay light application:

Apply to workshop, factory, refrigeration storage,warehouse, building, highway toll stations, supermarkets, stadiums and other places of lighting required


Competitive advantage:

1. Ce & rohs & tuv approved, quality guaranteed

2. Imported original cree & bridgelux & epistar chip, superior light source

3. Oem & odm welcome, independent r&d ability, patent design.

4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed

5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
