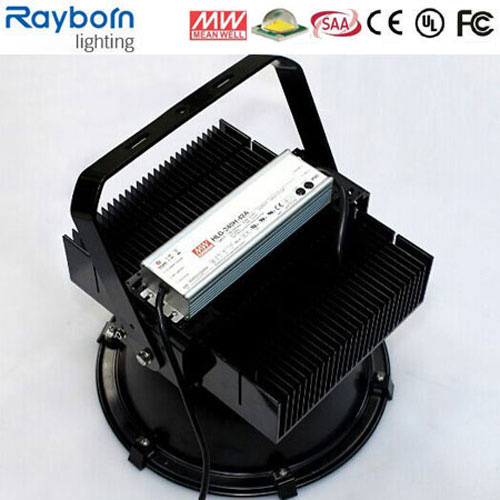

Meanwell Power Supply Industrial 100W / 120W / 150W LED High Bay Light

Meanwell Power supply Industrial 100W / 120W / 150w led high bay light


Specifications of 120W high power industrial LED high bay lights:

Chipset	CREE XTE,LG Innotek Leds
LED power	120W
Power Efficiency	>94%
The color of the lamp shell	Black / Silver
Color Rendering Index(CRI)	Ra>80
Color Temperature	Cool white: 6000-7000K
	Pure white: 4500-5500K
	Warm white: 3000-3500K
Material	Aluminum and catheter
Light Distribution Curve(Beam Pattern)	Symmetric expression/Circular glare/square luminous spot
Input Voltage	AC100-277V / MEAN WELL Driver UL/CB/CE
Frequency Range	50-60Hz
Power Factor(PF)	0.98-0.99
Total Harmonic Distortion(THD)	< 15%
Storage Temperature	-40Centi-degree--+80Centi-degree
Working Environment	-40Centi-degree--+50Centi-degree; 10%-95%RH
Junction Temperature(Tj)	60Centi-degree± 10%(ta=25Centi-degree)
Light Body and Lampshade Material	Aluminum Alloy and ASA / PC
Working Lifetime	> 50,000hrs
IP Rating	IP66
Warranty	5 years

Primary Competitive Advantages of  high power industrial LED lighting:
1. Using high chrome plating fins aluminum as heat sink.
2. Using Cree XTE, LG Innotek LED chips.
3. Using Mean Well power driver.
4. IP level is IP65,Can be used in outdoor severe environment.
5. Base: Hook with safety rope.
6. Beam angle: 25 / 60 / 90 degree.
7. With two pieces safety cable.
8. Energy saving than traditional lamp about 70%~80%.
9. Main part of heat dissipation is under the protection of several patents.
10.Compliance with CE&RoHS&FCC&PSE&ULstandard regulations.
11.Meeting the specifications of the traditional lamp can directly replace the traditional mercury lamp, No additional construction.


More wattage to choose: 100W-500W high power industrial LED high bay lights can be made.

Part No.		LED Power		Voltage	LED Chip	Driver	Angle		IP
RB-HB-100WB		100W		100-277V/AC	CREE XTE	Meanwell	25/60/90		IP65
RB-HB-120WB		120W		100-277V/AC	CREE XTE	Meanwell	25/60/90		IP65
RB-HB-150WB		150W		100-277V/AC	CREE XTE	Meanwell	25/60/90		IP65
RB-HB-180WB		180W		100-277V/AC	CREE XTE	Meanwell	25/60/90		IP65
RB-HB-200WB		200W		100-277V/AC	CREE XTE	Meanwell	25/60/90		IP65
RB-HB-250WB		250W		100-277V/AC	CREE XTE	Meanwell	25/60/90		IP65
RB-HB-300WB		300W		100-277V/AC	CREE XTE	Meanwell	25/60/90		IP65
RB-HB-400WCR		400W		100-277V/AC	CREE XTE	Meanwell	25/60/90		IP65
RB-HB-500WCR		500W		100-277V/AC	CREE XBD	Meanwell	25/60/90		IP65
RB-HB-100WB		100W		100-277V/AC	Samsung LH351B	Meanwell	25/60/90		IP65
RB-HB-120WB		120W		100-277V/AC	Samsung LH351B	Meanwell	25/60/90		IP65
RB-HB-150WB		150W		100-277V/AC	Samsung LH351B	Meanwell	25/60/90		IP65
RB-HB-180WB		180W		100-277V/AC	Samsung LH351B	Meanwell	25/60/90		IP65
RB-HB-200WB		200W		100-277V/AC	Samsung LH351B	Meanwell	25/60/90		IP65
RB-HB-250WB		250W		100-277V/AC	Samsung LH351B	Meanwell	25/60/90		IP65
RB-HB-300WB		300W		100-277V/AC	Samsung LH351B	Meanwell	25/60/90		IP65
RB-HB-400WCR		400W		100-277V/AC	Samsung LH351B	Meanwell	25/60/90		IP65
RB-HB-500WCR		500W		100-277V/AC	Samsung LH351B	Meanwell	25/60/90		IP65


Applications of High bay led lighting:

1. Workshop and factory lighting.
2. Shopping mall lighting.
3. Museum and stadium lighting.
4. Highway toll station and gas station lighting.
5. Warehouse and smeltery lighting.


Installation information of 100W LED High Bay Lights:

1.Check all the parts and accessories of LED High bay light;
2.Must cut off the power supply before installation;
3.Make sure the light is fixed tightly to the surface of place for installation ;
4.Connect the power line of light with power supply, then switch on the power.
5.When the highbay light is working, it must be kept vertical downward.


Ageing Test of High bay led lighting:

All our LED high bay lights will be tested before shipping,so that we can ensure the quality and light performance.Because we must be responsible to our customers.


We have CE,RoHS,SAA,UL certifications and so on.So you can rest assured to use our products.


Packaging of 100W LED High Bay Lights:

1).Label on backside of each high bay lights and your required label is available.
2).One piece led high bay Light per carton.
3).This is our regular packing of the led high bay light,if you need,we can also custom color packing  and put your logo on it.

Shipping of LED high bay light:By sea / air / express (DHL,FedEX,UPS,TNT etc.)
Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Samll quantity advised to be shipped by air.


Rayborn Good Service:

1.Your inquirey related to our products or price will be replied within 24 hours.
2.All your inquireies will be well explained by our experienced staff.
3.OEM&ODM,also provide customized service.
4.Distributor ship is available for your unique design and some our current models.
5.We will keep secret for customer sale area,design ideas and all other private information.


Company Profile :

Rayborn Lighting Co.Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.

We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.

With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.

We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.



FAQ:


Q1: What is the warranty of your high power led high bay lights?

A:  We offer five years guarantee for our high power LED high bay lamps,and we will offer you based on your requirement.


Q2: What color temperature we can choose?

A:  We offer LED high bay lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)

Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K


Q3: Do your led high bay lights can be used in our country?

A: Yes, Our LED high bay light has wide input voltage AC100-240V, and it can be customized too.


Q4: How do you help me to save freight cost?

A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.


Q5: Do you have any MOQ limited?

A: We don't have MOQ,even only one piece LED high bay light you can buy.

Q6: What's the lead time?

A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.

Q7:How do you ship the goods and how long does it take?

A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.

Q8: Do you accept Paypal or Western Union for sample order?

A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.
