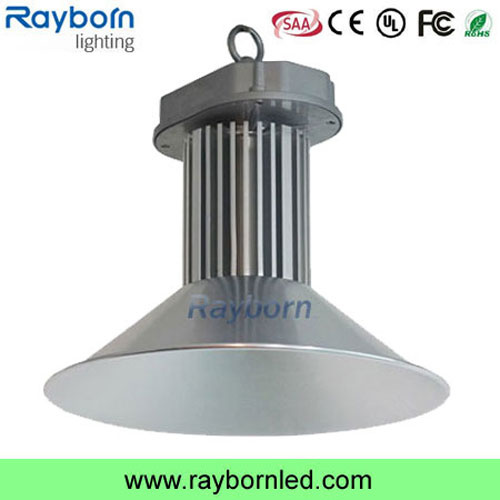

Low Bay LED Warehouse Lighting 120W Indoor High Bay Lights
Product Specifications:
LED High Bay Light/Industrial High Bay LED Lighting (30-500W)
120W LED Industrial Light Main Technical Parameters |
Item No.: | RB-HB-515-120W |
Input Voltage: | AC 100~240V |
Freqency Range: | 50Hz~60Hz |
Led Chip: | Bridgelux 45 mil |
Power Factor: | >0.97 |
Power Efficiency: | >90% |
LED Power | 120W |
LED QTY: | 1pc*120W |
LED Working Voltage: | DC 30~36V |
System Consumption: | 126 W |
LED Luminous Flux | Warm White | 10200LM |
Pure White | 12500LM |
Cool White | 12500LM |
Viewing Angle: | 45degree |
Center Illuminance | Height 3M | 1021LUX |
Height 4M | 574LUX |
Height 5M | 367LUX |
Illuminance Area | Height 3M | Dia.2.6 M points visible |
Height 4M | Dia.3.4 M points visible |
Height 5M | Dia.4.2 M points visible |
Illuminance Uniformity: | >0.6 |
Color Temperature | Warm White | 2700K~3500K |
Pure White | 5000K~5500K |
Cool White | 6000K~7000K |
Color Rendering Index | Ra>78 |
|
Light Distribution: | LED points visible |
Light Design: | LED+Reflectors secondary light distribution |
LED Junction Temperature: | ≤115ºC |
Working Temperature: | -40ºC~50ºC |
IP Grade: | IP54 |
Working Life-span: | 50000 H |
Power Line: | 1.0 mthree line |
Connect Wire | Brown | L |
Blue | N |
Yellow / Green | G |
The color of the lamp shell | Black and silver is available |
Certificate | CE /ROHS |
Net Weight: | 8.5g |
LED High bay light feature
1.Using single powerful LED(30-500W)as the light source, with unique lighting design of Multi-chip integrated single-module; select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
2.The unique design of radiator which can combine with the lamp box perfectly, diffuse the heat conduction efficiently, so that reduce the temperature of inside lamp, it ensures the LED longlife-span.
3.The surface of radiator is treated by antiseptic and anodic oxidation; with compact structure and aesthetic appearance.
4.Environment-friendly, no air pollution, no lead-free, no-mercury.
5.With high color rendering index which can show a true color of things for people, kinds of light colors are available, meet the requirement of different environment; clear up the depressive mood caused by lower or higher color temperature compared with conventional lamp, make more comfortable for people's eyes which can greatly improve people's working efficiency.
6.Adopted advanced constant current controlling techniques; wide voltage range available and global universal; overcome the lighting instability caused by electric network of ballast and noise pollution; avoid the stimulation and tiredness taking from long-time work.
7.Apply for unique surface treatment technology, welldecorated, novel style, easy to install, lower maintenance cost and wide in application.
Competitive Advantage:
1. CE & RoHS & TUV approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
LED high bay Applications:
1. Workshop, factory, warehouse, highway toll station.
2. Gas station, supermarket, exhibition, gym.
3. The hall conference room mall golf course such as ship panoramic lighting at the airport
LED High bay light 12hours aging test
All product must have 12hours more aging test, inspection department will test 100% product for light up test, power wattage test and so on.
Payment terms
1. Payment: T/T, L/C at sight, Western Union ,Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discouts are offered based on order quantities
FAQ
1. What is the general business process?
Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service
2. What is the warranty?
Answer : 3~5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.
3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable
4. Can you offer free samples?
Answer : No, but sample fee can be refunded depending on the coming order amount.
5. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.
6. I don't know how many Led Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
