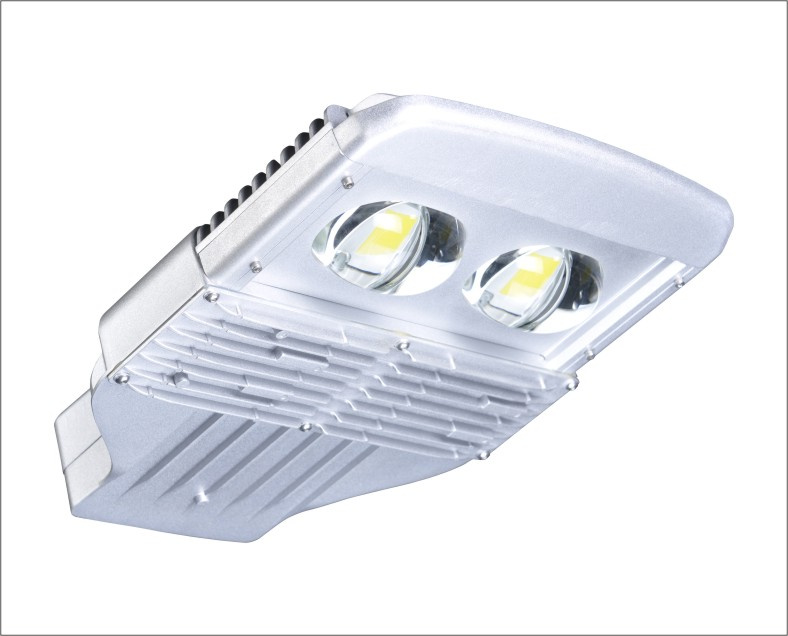

LED Street Light with UL, 40W Type III (Polarized)

Accord with North America, Europe, Asia, China and other city roadway lighting standards of professional LED lights,, suitable for different pole height, road width and different installation methods;
Several types of light lens,accord with different roadway lighting needs,makes it suitable perfectly for any roadway lighting environment, energy saving, enhance the use value of light.
Application:Expressway,Major Roadway,Local Roadway.

Features
Constructed of die cast Aluminum alloy body, solid structure,corrosion resistance on the surface, suitable for different climate and environment, safety and durability;
Adopted original Bridgelux® LED array .low glare,lamps light efficiency more than 125lm/W ;
Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, lights power efficiency high;
Natural transfer heat sink design,fast heat conduction,low temperature rise,enables maximum LED life span lumen maintenance more than 50,000 hours;
Glass optical lens, high transmittance, uniform light output,weather-resistant, Not easy to aging, low light decay;
Stainless steel fixation components,optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;
IP66 protection rating against dust and water performance stability,extend lamp life;
Safety and Environmental standards recognition, 5 years quality warranty;

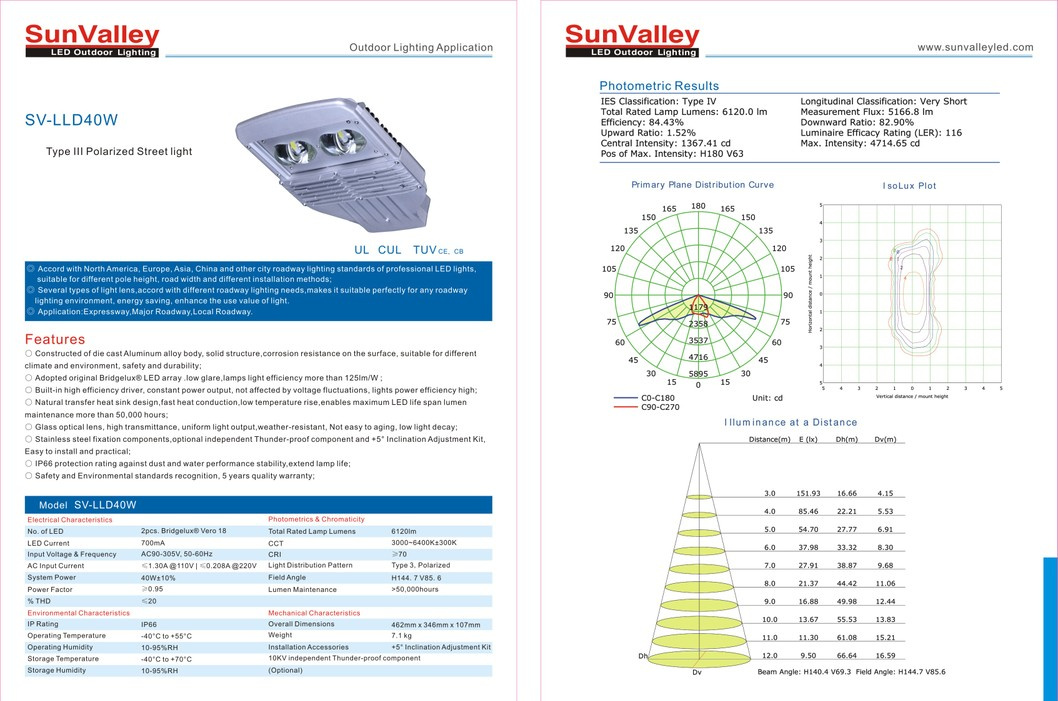

Model  SV-LLD40W
Electrical Characteristics                         Photometrics & Chromaticity
No. of LED  2pcs. Bridgelux® Vero 18    Total Rated Lamp Lumens  6120lm
LED Current  700mA                               CCT  5000K±300K
Input Voltage & Frequency  AC90-305V, 50-60Hz    CRI  ≥70
AC Input Current  ≤1.30A @110V | ≤0.208A @220V Light Distribution Pattern  Type 3,Polarized
System Power  40W±10%                       Field Angle  H144.7 V85.6
Power Factor  ≥0.9 (0.95 )                      Lumen Maintenance  >50,000hours
% THD  ≤20

Environmental Characteristics                  Mechanical Characteristics
IP Rating  IP66                      Overall Dimensions       462mm x 346mm x 107mm
Operating Temperature  -40°C to +55°C          Weight                  7.1 kg
Operating Humidity  10-95%RH   Installation Accessories  +5°Inclination Adjustment Kit
Storage Temperature  -40°C to +70°C  10KV independent Thunder-proof component(Optional)
Storage Humidity  10-95%RH

3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley representative for more information.
