Model SV-LHBD250W
Electrical characteristics Photometrics & Chromaticity
LED Qty 6pcs. ECSE50 COB Luminous Flux >28800lm (Typ.)
LED Current 1050mA(Typ.) CCT 5000K-6400K±300K/
Input Voltage&Hz AC90-305V, 50-60Hz CRI ≥70
Input Current ≤1.30A @110V | ≤0.60A @220V Light distribution structure 60°90°120°135°
Power 150W±10%
Power Factor ≥0.9 (0.95 Typ.) Lumen Maintenance@L70 >50,000hours3
Total harmonic distortion(THD) ≤20
Environmental characteristics Lamp specifications
Protection grade IP65 Overall Dimensions 425mm x265mm x 495mm
Working temperature -40°C to +55°C Net weight 5.0 kg
Working humidity 10-95%RH installation mode ceiling mounted
Storage temperature -40°C to +70°C
Storage Humidity 10-95%RH installation accessories 10KV lightning protection devices (optional)
3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.
| led high bay | 100W | 150W | 200W | 250W |
| Luminous Flux | >12000lm (Typ.) | >18000lm (Typ.) | >18000lm (Typ.) | >35000lm (Typ.) |
| CCT | 5000/6400K±300K | 5000K±300K/ | 5000K±300K/ | 5000K±300K/ |
| Power Factor | ≥0.9 (0.95 Typ.) | ≥0.9 (0.95 Typ.) | ≥0.9 (0.95 Typ.) | ≥0.9 (0.95 Typ.) |
| Input Voltage&Hz | AC90-277V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz |
| Working temperature | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C |
LED High bay lamp is for large-scale factory building, warehouse etc other place of special lighting. According to the installation height of lamps to choose power, High light efficiency to improve the safety of the production site;
The LED high bay lamp is equipped with four light emitting angle, meet different places lighting needs, can be the perfect competence in any lighting environment, save energy to enhance the industrial light use value;

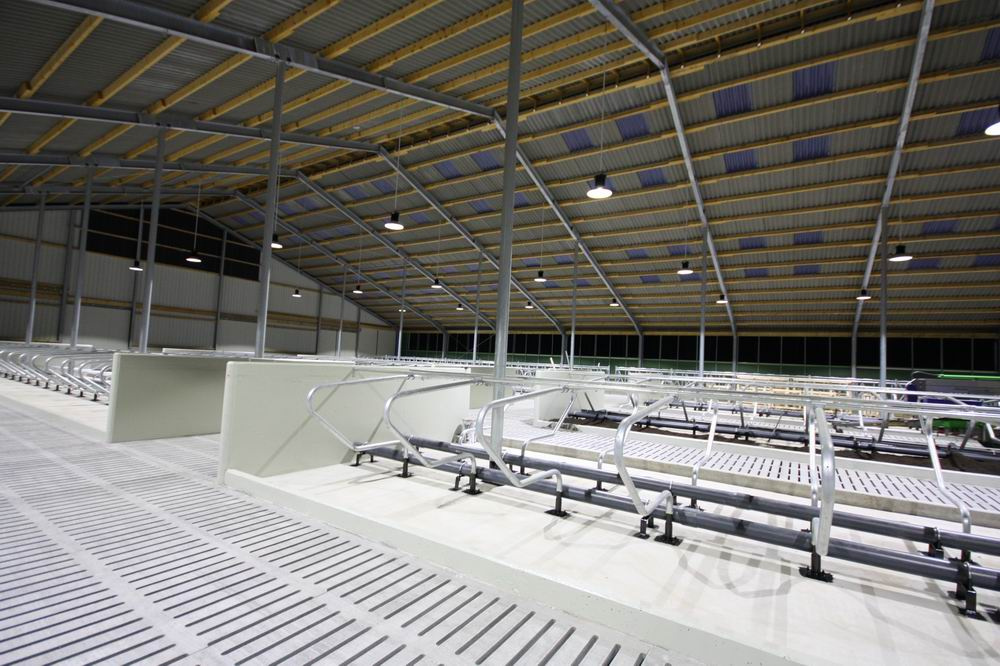

Suitable for application in: large-scale factory building, warehouse, logistics center;
Product Characteristics:
1. Aluminum alloy lamp body, firm structure, corrosion protection of surface, suitable for different climate and environment, safety and durability;
2. Adopts high efficiency COB light source, low glare, uniform light emission, light efficiency is greater than 120lm/w;
3. Allocation of high efficiency power supply, constant power output; not influenced by the voltage fluctuation, high effective power of led industrial lamp;
4. Adopts natural air cooling heat dissipation design, fast heat conduction, low temperature rise, life span of lamp up to 50000 hours;
5. Dustproof PC mask, high transmittance, uniform light output, weather-resistance, resistance ageing, Low light degradation;
6. High bay light has four different shades, 60°90°120°135°are optional, optional independent lighting protection device;
7. IP65 Protection grade, ensure the products dustproof and waterproof performance stability, prolong the service life of led industrial lamp;
8. Through the security certification and environmental certification standards, 5 years of product quality assurance;
SunValley optoelectronic technology Co., Ltd is a manufacturer professionally engaged in R&D, designing, producing and managing lighting electrical appliances and lighting source brand of SUNVALLEY. The company engaged in producing and selling LED outdoor lighting, LED commercial lighting, solar street light and LED driver. Providing customers a full range of LED lighting equipments combined with LED light source products, and provide technical support and customer service.
We located in Huizhou which is a large manufacturing base of lighting electrical appliances in China, plant area of 12, 000 square meters. We have a batch of advanced professional staffs in management, manufacturing and lighting design.
The enterprise has passed ISO9000-2008 quality system certification, "Sun Valley" LED lighting holds several leading technology, four practical new patents, products have been certified by a number of safety regulations.
You are welcome to contact us for more information.
