Model SV-LFD100W
Electrical characteristics
LED Qty 9pcs. ARE150 COB
LED Current 1670mA(Typ. )
Input Voltage&Hz AC90-277V, 50-60Hz
Input Current ≤ 1.30A @110V ≤ 0.60A @220V
Power 100W± 10% Beam Angle 120 deg. (Typ. )
Power Factor ≥ 0.9 (0.95 Typ. )
Total harmonic distortion(THD) ≤ 20
Photometrics & Chromaticity
Luminous Flux >12000lm (Typ. )
CCT 5000/6400K± 300K
CRI ≥ 80
Light distribution structure 120°
Lumen Maintenance@L70 >50, 000hours3
Environmental characteristics
Protection grade IP65 O
Working temperature -40° C to +55° C
Working humidity 10-95%RH
Storage temperature -40° C to +70° C
Storage Humidity 10-95%RH
Lamp specifications
verall Dimensions mm
Net weight kg
installation mode ceiling mounted
installation accessories 10KV Independent SPD (optional)
3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley representative for more information.

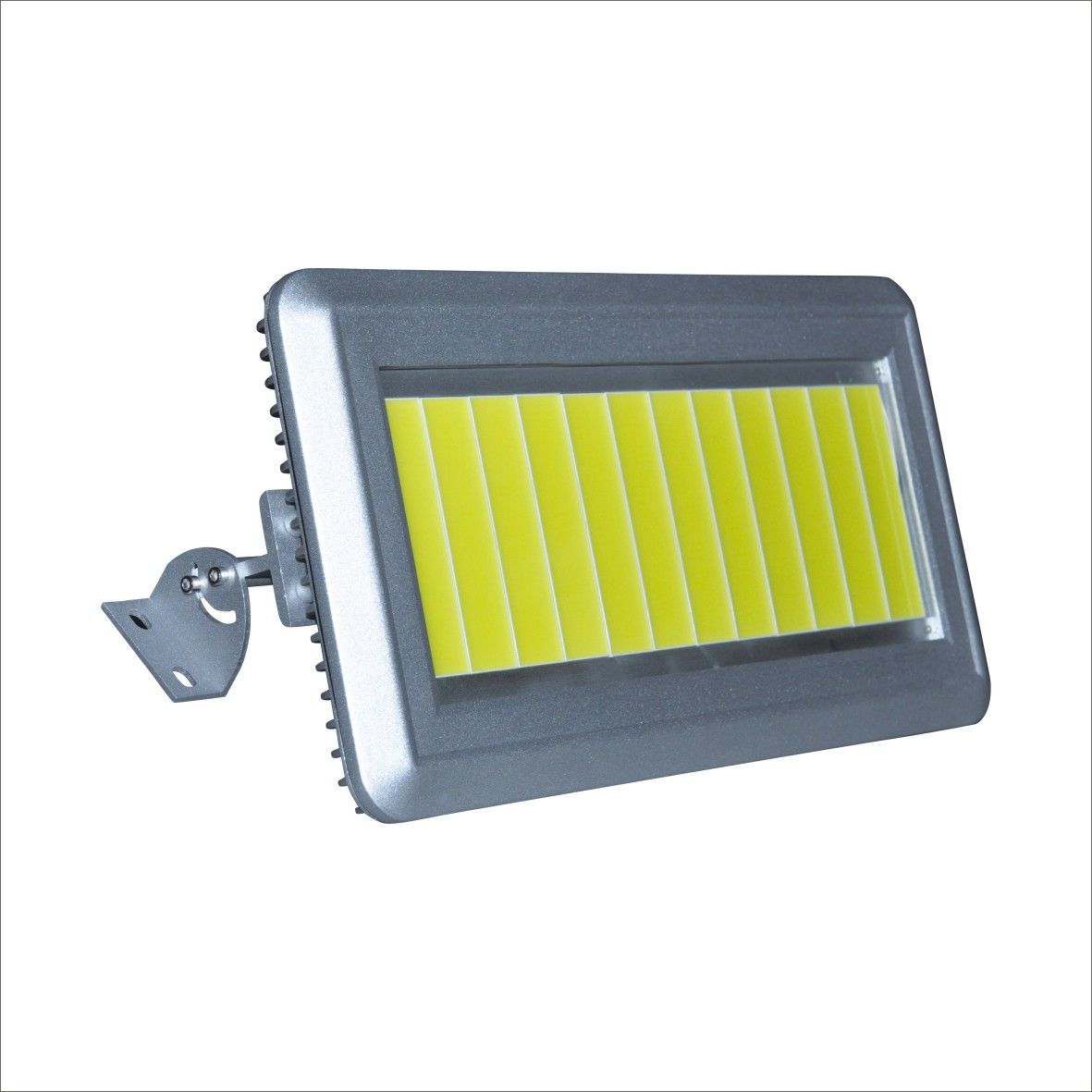

Lamps can meet the requirement of different tunnel, underground passage, gas station and other different fields. According to the installation height of lamps to choose power, High light efficiency to improve the safety of the production site
Using COB plane light source,daintily and useful, low glare, meet different places lighting needs, can be the perfect competence in any lighting environment, save energy to enhance the led industrial light use value;
Suitable for application in: tunnel, underground passage, gas station, petroleum and chemical industry;
Product Characteristics:
1. Die casting aluminum alloy structure of lamp, firm structure, corrosion protection of surface, suitable for different climate and environment, safety and durability;
2. Adopts high efficiency COB light source, low glare, uniform light emission, light efficiency is greater than 120lm/w;
3. Allocation of high efficiency power supply, constant power output; not influenced by the voltage fluctuation, high effective power of lamp;
4. Adopts natural air cooling heat dissipation design, fast heat conduction, low temperature rise, life span of lamp up to 50000 hours;
5. Tempered glass surface cover, High transmittance, uniform light output, weather-resistance, resistance ageing, Low light degradation;
6. Equipped with two different types of mounting bracket, fixed stainless steel fittings, optional independent lightning protection device;
7. IP65 Protection grade, ensure the products dustproof and waterproof performance stability, prolong the service life of led industrial lamp;
8. Through the China national explosion proof testing center certification and environmental certification standards, 5 years of product quality assurance;
OPTIONS:
| tunnel light | 70W | 100W | 120W |
| LED Qty | 7pcs. ARE150 COB | 9pcs. ARE150 COB | 12pcs. ARE150 COB |
| LED Current | 1670mA | 1670mA | 2500mA |
| Luminous Flux | 8750.0lm | 11250.0lm | 15000.0lm |
| CCT | 5000K-6400K±300K/ | 5000K-6400K±300K/ | 5000K-6400K±300K/ |
| Input Current | ≤1.30A @110V | 0.366A @220V | ≤1.30A @110V | 0.476A @220V | ≤1.30A @110V | 0.60A @220V |
| Input Voltage&Hz | AC90-277V, 50-60Hz | AC90-277V, 50-60Hz | AC90-277V, 50-60Hz |
| Net weight | 8.5kg | 8.7kg | 10.3kg |
| Overall Dimensions | 444x290x115mm | 444x290x115mm | 556x290x115mm |
