Home LED Light Products 200W UL RoHS IP65 High Power LED High Bay Light

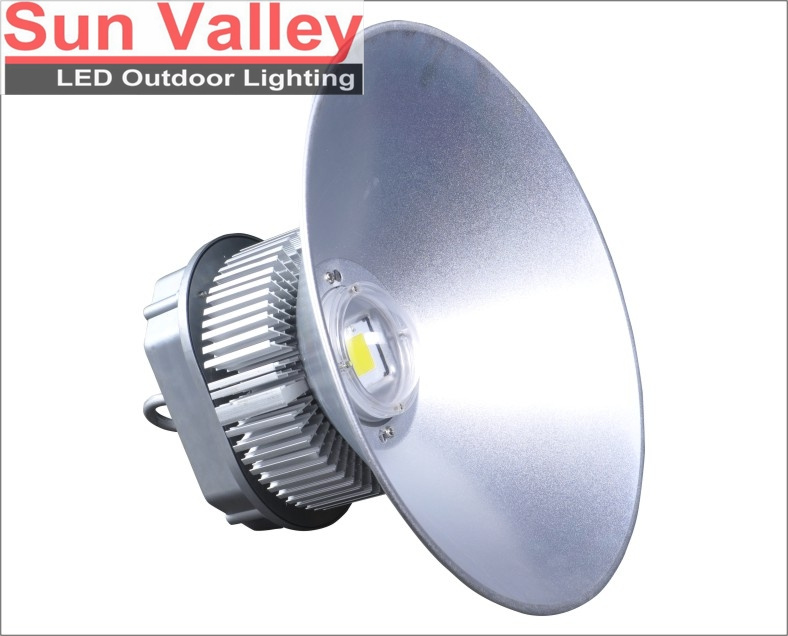

200W UL RoHS IP65 High Power LED High Bay Light

200W UL RoHS IP65 High Power LED High Bay Light
Price: US $ 157-175/Piece
Trade Terms: FOB,EXW
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union

Model SV-LMD200W

Electrical characteristics

LED Qty 1PCS. ECSE50 COB
LED Current 4167mA
Input Voltage&Hz AC90-277V, 50-60Hz
Input Current ≤ 2.1A @110V / 0.927A @220V
Power Factor ≥ 0.95

Photometrics & Chromaticity
Luminous Flux 25560.0lm
CCT 3000K-6400K± 200K
CRI ≥ 70
Light distribution structure 60° 90° 120° 135°
Field Angle H122.1 V141.0
Power 200W± 10%
Lumen Maintenance >50, 000hours
Total harmonic distortion(THD) ≤ 20

Environmental characteristics
Protection grade IP65
Working temperature -40° C to +55° C
Working humidity 10-95%RH
Storage temperature -40° C to +70° C
Storage Humidity 10-95%RH



Lamp specifications
Overall Dimensions 425mm X265mm X 495mm
Net weight 5.1 kg
installation mode ceiling mounted
Installation accessories 10KV   lightning protection devices (optional)




OPTIONS:

led high bay100W150W200W250W
Luminous Flux>12000lm (Typ.)>18000lm (Typ.)>18000lm (Typ.)>35000lm (Typ.)
CCT5000/6400K±300K5000K±300K/5000K±300K/5000K±300K/
Power Factor≥0.9 (0.95 Typ.)≥0.9 (0.95 Typ.)≥0.9 (0.95 Typ.)≥0.9 (0.95 Typ.)
Input Voltage&HzAC90-277V, 50-60HzAC90-305V, 50-60HzAC90-305V, 50-60HzAC90-305V, 50-60Hz
Working temperature-40°C to +55°C-40°C to +55°C-40°C to +55°C-40°C to +55°C



High bay light is for large-scale factory building, warehouse etc other place of special lighting. According to the installation height of lamps to choose power, High light efficiency to improve the safety of the production site;


The led high bay light is equipped with four light emitting angle, meet different places lighting needs, can be the perfect competence in any lighting environment, save energy to enhance the led high bay light use value;


Suitable for application in: large-scale factory building, warehouse, logistics center;



Product Characteristics:
1. Aluminum alloy lamp body, firm structure, corrosion protection of surface, suitable for different climate and environment, safety and durability;

2. Adopts high efficiency COB light source, low glare, uniform light emission, light efficiency is greater than 120lm/w;

3. Allocation of high efficiency power supply, constant power output; not influenced by the voltage fluctuation, high effective power of high bay light;

4. Adopts natural air cooling heat dissipation design, fast heat conduction, low temperature rise, life span of lamp up to 50000 hours;

5. Dustproof PC mask, high transmittance, uniform light output, weather-resistance, resistance ageing, Low light degradation;

6. High bay light has four different shades, 60°90°120°135°are optional, optional independent lighting protection device;

7. IP65 Protection grade, ensure the products dustproof and waterproof performance stability, prolong the service life of high bay light;

8. Through the security certification and environmental certification standards, 5 years of product quality assurance;

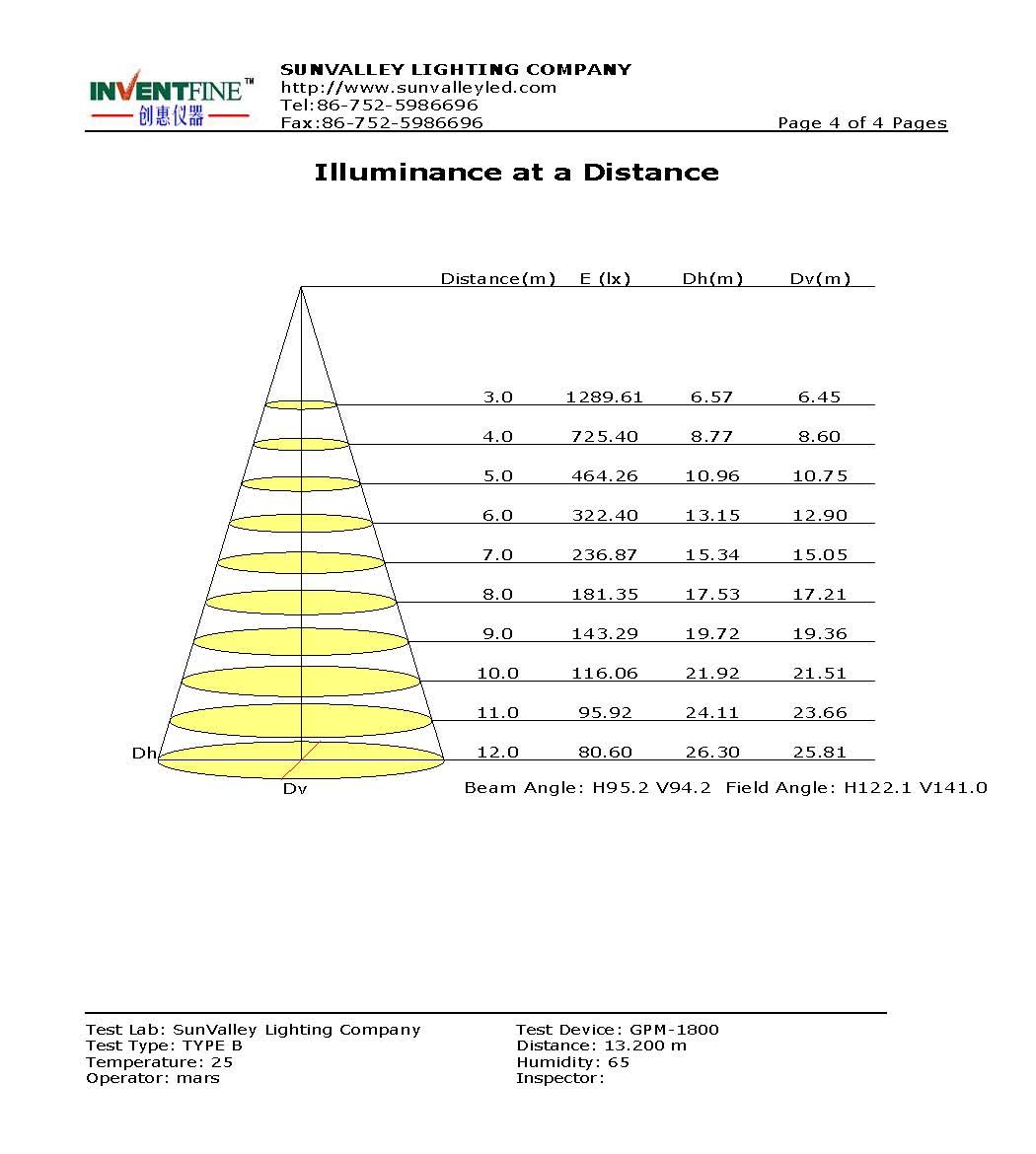

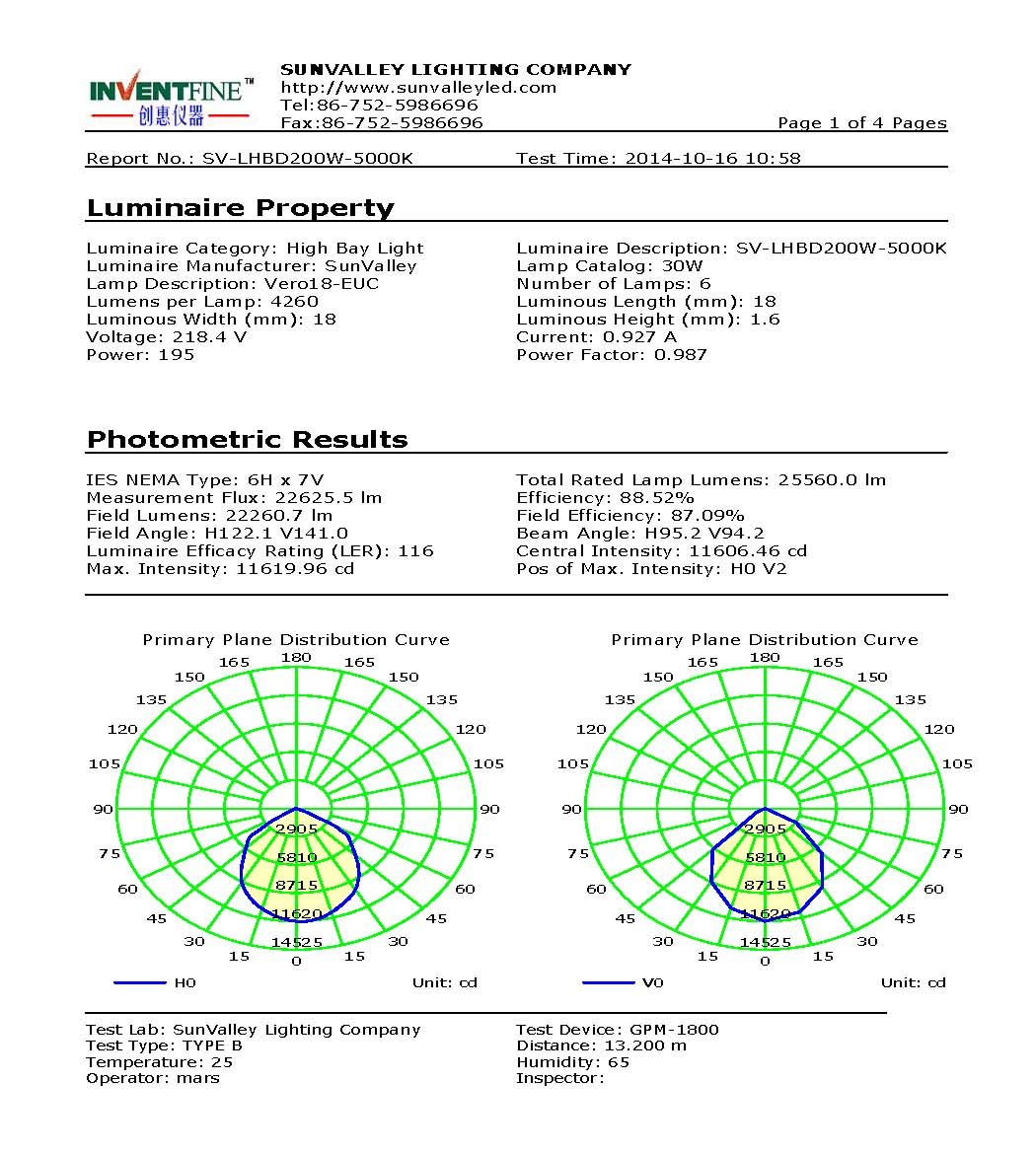

Test Report:

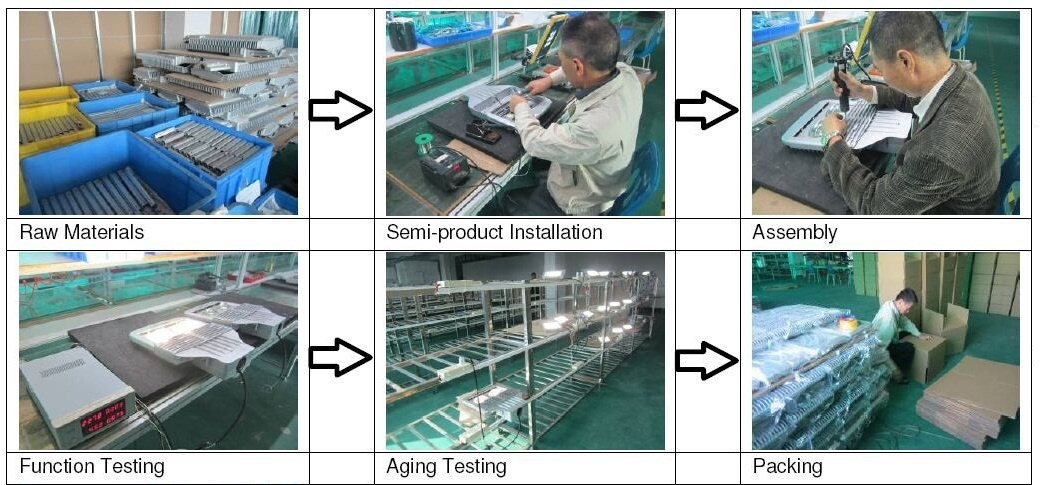

Work Flow:

Prod Model: SV-LMD200W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lumen Maintenance: >50, 000hours
Cct: 3000k-6400k± 300k
Total Harmonic Distortion(Thd): ≤ 20
LED Qty: 1PCS. Ecse50 COB
LED Current: 4167mA
Input Current: ≤ 2.1A @110V / ≤0.927A @220V
Power Factor: 0.95
Lamp Body Material: Aluminum Alloy
IP Rating: IP65
Certification: UL
Color Temperature: 3000~6700k
Usage: Warehouse, Logistics Centre, Factory Building
Beam Angle: 60°90°120°135°
SunValley optoelectronic technology Co., Ltd is a manufacturer professionally engaged in R&D, designing, producing and managing lighting electrical appliances and lighting source brand of SUNVALLEY. The company engaged in producing and selling LED outdoor lighting, LED commercial lighting, solar street light and LED driver. Providing customers a full range of LED lighting equipments combined with LED light source products, and provide technical support and customer service.

We located in Huizhou which is a large manufacturing base of lighting electrical appliances in China, plant area of 12, 000 square meters. We have a batch of advanced professional staffs in management, manufacturing and lighting design.

The enterprise has passed ISO9000-2008 quality system certification, "Sun Valley" LED lighting holds several leading technology, four practical new patents, products have been certified by a number of safety regulations.

You are welcome to contact us for more information.

Our company supplys different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
