| type 5 | 40W | 60W | 80W | 100W | 120W | 150W | 180W | 240W |
| LED chip | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 |
| Lamp Lumens | 6120lm | 8520lm | 12240lm | 14500lm | 17040lm | 22200lm | 25560lm | 34800lm |
| Input Voltage & Frequency | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz |
| CCT | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K |
| System Power | 40W±10% | 60W±10% | 80W±10% | 100W±10% | 120W±10% | 150W±10% | 180W±10% | 240W±10% |
| Power Factor | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) |
| Operating Temperature | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C |
| Weight | 7.1 kg | 7.1 kg | 9.3 kg | 9.3 kg | 9.3 kg | 12.3 kg | 12.3 kg | 14.6 kg |

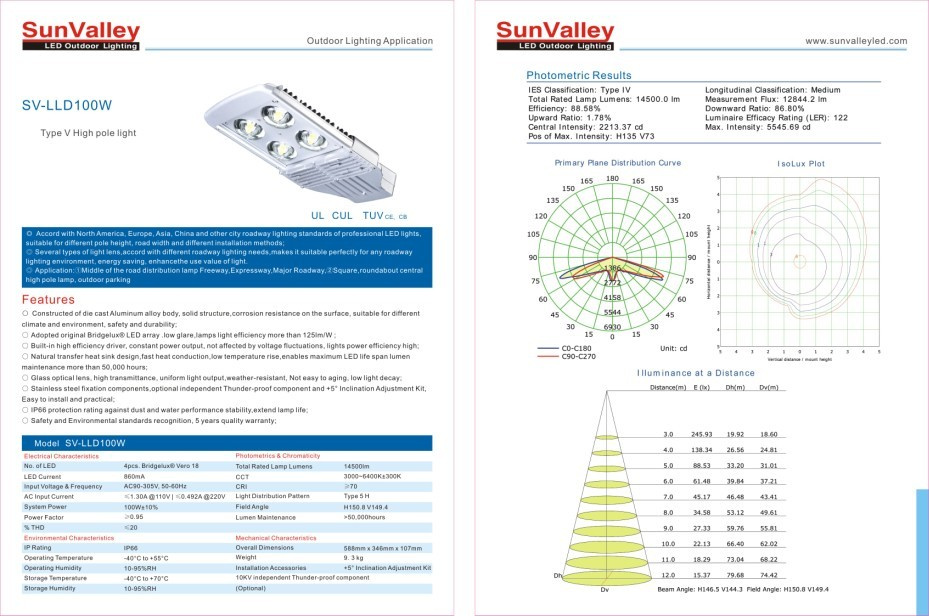

Accord with North America, Europe, Asia, China and other city roadway lighting standards of professional LED lights,, suitable for different pole height, road width and different installation methods;Several types of light lens,accord with different roadway lighting needs,makes it suitable perfectly for any roadway lighting environment, energy saving, enhance the use value of light.Application:Middle of the road distribution lamp Freeway,Expressway,Major Roadway,Square,roundabout central high pole lamp, outdoor parking Model SV-LLD100W
Electrical Characteristics Photometrics & Chromaticity
No. of LED 4pcs. Bridgelux® Vero 18 Total Rated Lamp Lumens 14500lm
LED Current 860mA CCT 5000K±300K
Input Voltage & Frequency AC90-305V, 50-60Hz CRI ≥70
AC Input Current ≤1.30A @110V | ≤0.492A @220V Light Distribution Pattern Type 5
System Power 100W±10% Field Angle H150.8 V149.4
Power Factor ≥0.9 (0.95 ) Lumen Maintenance >50,000hours
% THD ≤20
Environmental Characteristics Mechanical CharacteristicsIP Rating IP66 Overall Dimensions 585mm x 346mm x 107mmOperating Temperature -40°C to +55°C Weight 9.3 kg Operating Humidity 10-95%RH Installation Accessories +5° Inclination Adjustment Kit Storage Temperature -40°C to +70°C 10KV independent Thunder-proof componentStorage Humidity 10-95%RH (Optional) 3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley representative for more information.
