| led high bay | 100W | 150W | 200W | 250W |
| Luminous Flux | >12000lm (Typ.) | >18000lm (Typ.) | >18000lm (Typ.) | >35000lm (Typ.) |
| CCT | 5000/6400K±300K | 5000K±300K/ | 5000K±300K/ | 5000K±300K/ |
| Power Factor | ≥0.9 (0.95 Typ.) | ≥0.9 (0.95 Typ.) | ≥0.9 (0.95 Typ.) | ≥0.9 (0.95 Typ.) |
| Input Voltage&Hz | AC90-277V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz |
| Working temperature | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C |

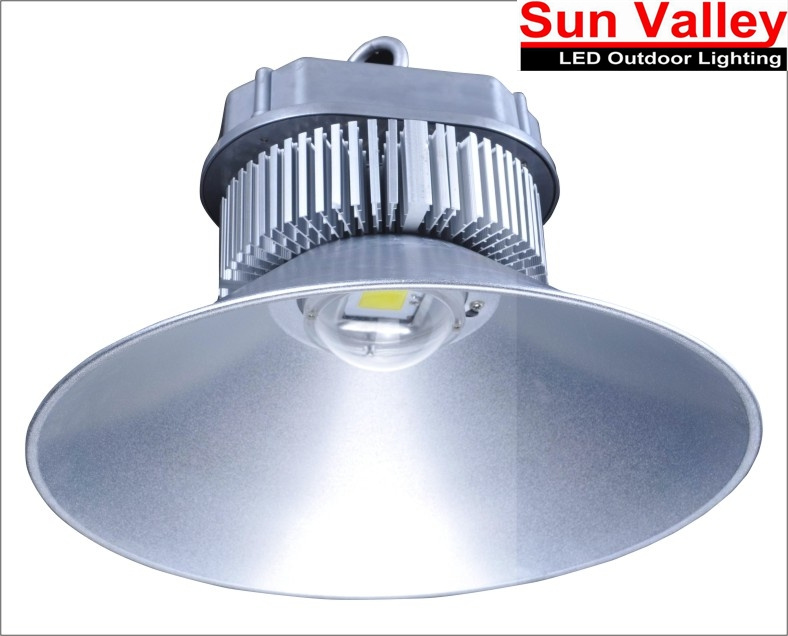

Industrial lighting lamps and lanterns for large-scale factory building, warehouse etc other place of special lighting. According to the installation height of lamps to choose power, High light efficiency to improve the safety of the production site;
The lamp is equipped with three light emitting angle, meet different places lighting needs, can be the perfect competence in any lighting environment, save energy to enhance the light use value;
Suitable for application in: large-scale factory building, warehouse,logistics center;
The characteristics of the product
1.Aluminum alloy structure of lamp, corrosion protection of surface, suitable for different climate and environment, safety and durability
2.Using high efficiency COB light source, low glare, light efficiency is greater than 120lm/w
3.Color temperature (3000k~6400k), CRI (>70~80) optional;
4.The lamp adopts composite phase change heat dissipation technology, low temperature rise, life span of lamp up to 50000 hours;
5.Acrylic lampshade, High transmittance, weather-resistance, resistance ageing, Low light degradation;
6.Low weight of fixture,Emitting angle 120°90° 60°optional, Equipped with fixed stainless steel fittings;
7.IP65Protection grade, ensure the products dustproof and waterproof performance stability
8.Though the safety and environmental standards certification, 5 years of product quality assurance;
Model SV-LMD150W
Electrical characteristics LED Qty 1pcs. ECSE50 COB
LED Current 3125mA
Input Voltage&Hz AC90-305V, 50-60Hz
Input Current ≤1.30A @110V | 0.772A @220V
Power 150W±10%
Power Factor ≥0.9
Total harmonic distortion(THD) ≤20
Photometrics & ChromaticityLuminous Flux 18500.0lmCCT 5000K-6400K±200K/CRI ≥70Light distribution structure 60°90°120°135° Field Angle H120.5 V139.7Lumen Maintenance >50,000hoursEnvironmental characteristics
Protection grade IP66
Working temperature -40°C to +55°C
Working humidity 10-95%RH
Storage temperature -40°C to +70°C
Storage Humidity 10-95%RH Lamp specificationsOverall Dimensions 425mm x265mm x 495mmNet weight 5.1 kginstallation mode ceiling mountedinstallation accessories 10KV lightning protection devices (optional)3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley representative for more information.
SunValley optoelectronic technology Co., Ltd is a manufacturer professionally engaged in R&D, designing, producing and managing lighting electrical appliances and lighting source brand of SUNVALLEY. The company engaged in producing and selling LED outdoor lighting, LED commercial lighting, solar street light and LED driver. Providing customers a full range of LED lighting equipments combined with LED light source products, and provide technical support and customer service.
We located in Huizhou which is a large manufacturing base of lighting electrical appliances in China, plant area of 12, 000 square meters. We have a batch of advanced professional staffs in management, manufacturing and lighting design.
The enterprise has passed ISO9000-2008 quality system certification, "Sun Valley" LED lighting holds several leading technology, four practical new patents, products have been certified by a number of safety regulations.
