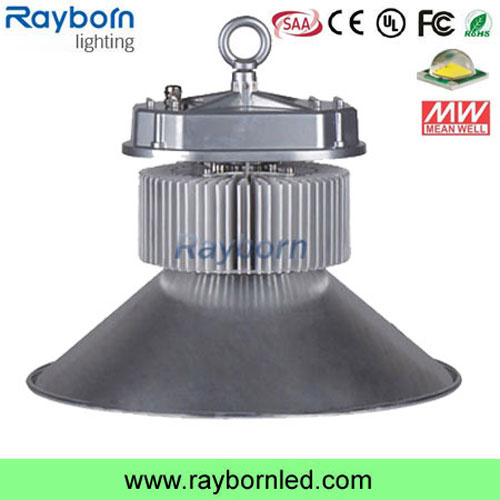

Energy saving 10950LM 120W IP44 Led High Bay Lighting Fixtures With CREE Chip AC 100 - 240V
Product Specifications:
LED Industrial Lighting/High Bay Ligh Lamp (30W-250W)
Item No.: RB-HB-515-120W
Input Voltage: AC 100~240V 50-60HZ
Power Factor: >0.98; Power Efficiency: >0.90
LED Luminous Efficiency 100-110lm/W
Lamp Rated Total Luminous Flux: 10950LM
LED High Bay Light Power Consumption: 120W
System Power Consumption: 132W
LED Chip: Bridgelux/CREE
Lamp Beam Angle: 45 degrees
Color Index: Ra≥ 78
Color Temperature: 2700-7000K
Operating temperature: -40º C~50º C
Protection Class: IP44
Useful Life: ≥ 50000 hours
Weight: N. W. 7.2KG
Lamp Body Material: Aluminum 6063
Color of Housing: Black or Silver
| Brand | Rayborn |
| Chipset | Bridgelux Chip |
| LED power | 120W |
| Power Efficiency | >94% |
| The color of the lamp shell | Black / Silver |
| Item No | RB-HB-120W |
| Color Temperature | 3000k-5500k-7000k |
| View Angle | 30/45/90/120degree |
| Material | Aluminum |
| Luminous Flux | 12000 |
| Power factor | >0.98 |
| Color Rendering Index(CRI) | Ra>80 |
| IP rating | IP65 |
| Working Lifetime | >50000 hours |
| Power Driver | Meanwell HLG |
| Input Voltage | AC100-277V |
| Frequency Range | 50-60Hz |
| Certificate | CE & RoHS &TUV |
| Total Harmonic Distortion(THD) | < 15% |
| Storage Temperature | -40 ºC --+80 ºC |
| Working Environment | -40 ºC--+50 ºC;10%-95%RH |
| Junction Temperature(Tj) | 60 ºC± 10%(ta=25 ºC) |
Led High bay light Features:
1. Using single powerful LED(30-250W)as the light source, with unique lighting design of Multi- chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
2. High bay lighting Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.
3. High bay led The heat sink surface have conducted anodic oxidation anticorrosive process, with compact structure and aesthetic appearance, water proof and dust proof.
4. High bay light Adopted advanced constant current controlling techniques, wide voltage range available and global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution.
5. High color rendering, meet the requirement of different environment, improve working efficiency.
6. Easy installation and demolition, wide range of application. Environment-friendly, no air pollution, no lead-free, no-mercury
Applications:
Widely used in factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.
High Bay Light Competitive Advantage:
1. CE & RoHS & TUV UL approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
