Feature and Advantage1. Waterproof: IP54front, IP45back
2. Best viewing distance: 10-300m
3. White balance brightness: 2500CD/sqm adjustable
4. Horizontal viewing angle: 140degree
5. Working temperatue: -30degree-+80degree
6. Life span: More than 100, 000hours
7. Contrast ratio: 4000: 1
8. Pconsumption: 500W
Application and Market
1. Application

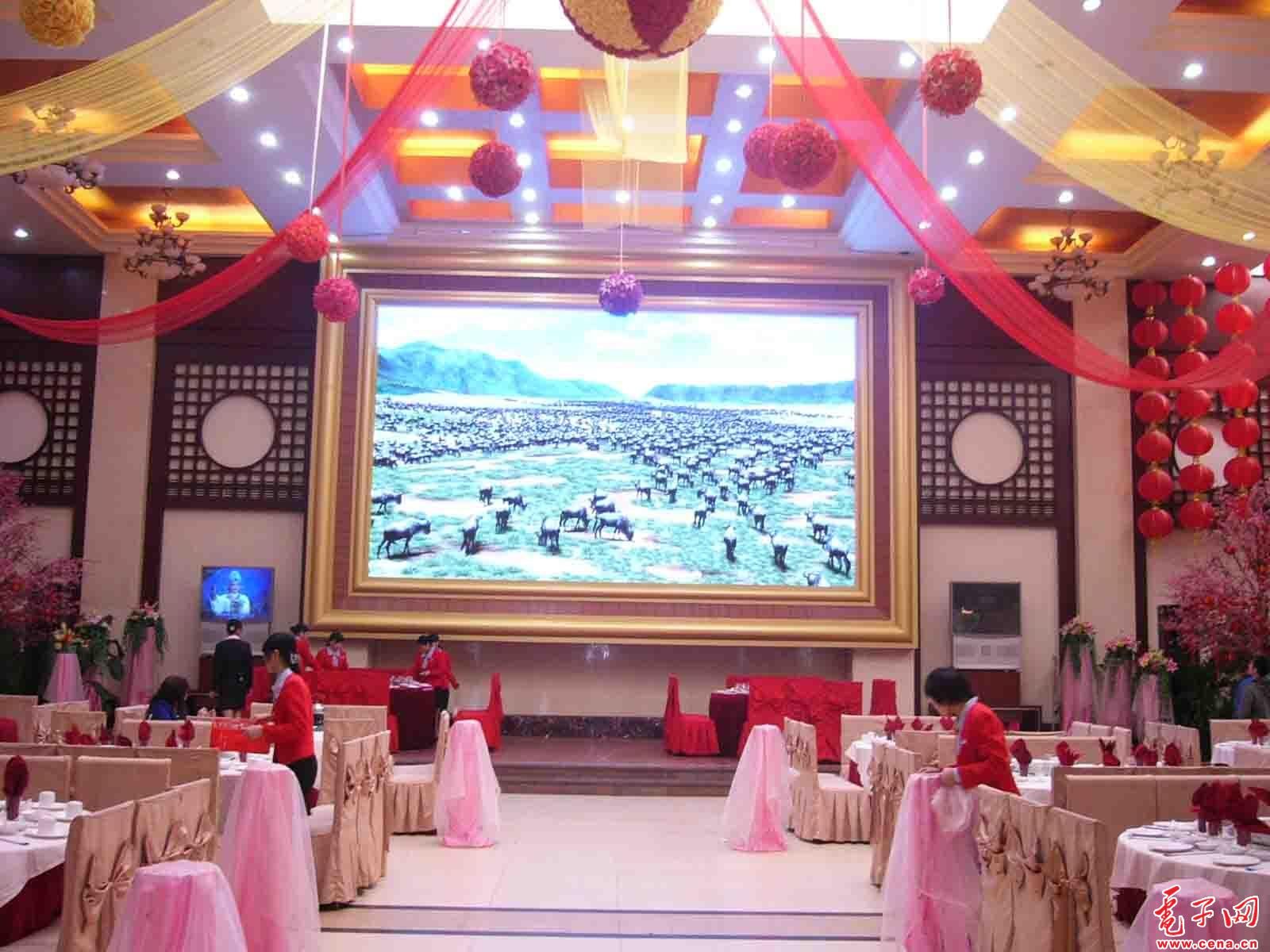

Advertising outdoor LED display widely use in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, restaurants, entertainment, enterprises, highway etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Our service1. Your inquiry related to our products or price will be replied in 24hrs2. OEM, any your customized lightings we can help you to design and put into product3. Distributoership are offered for your unique design and our current models4. Protection of your sales area, ideas of design and all your private information
Trade Terms
1. Package: Wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits, 60% balance before delivery 3. Shipping port: Shenzhen
4. Warranty time: 7years
5. Delivery time:
Sample order, 3working days;
10sqm-50sqm, 8-18working days;
50sqm-100sqm, 25-28working days.
| Description | Technical parameter |

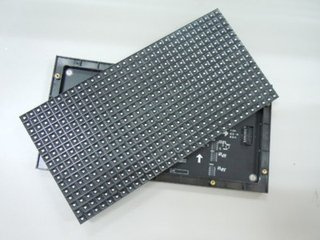

| Unit module | Module size | 320*160mm |
| Pixel pitch | 10mm |
| Pixel density | 10, 000dots/m2 |
| Pixel configuration | 3 in 1 |
| Led specification | SMD3528 |
| Pixel resolution | W: 32 dots*H: 16dots |
| Cabinet | Dimension | 960mm*960mm*120mm |
| Cabinet material | Aluminum |
| Weight | 35 kg/sqm |
| Quantities of module | 18 pcs |
| Power supply | 3 pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 65kg |
| Best viewing angle | 10-300m |
| Temperature | Storage: -35degree~+85degree |
| Working: -35degree~+85degree |
| Thickness | 11cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 400W |
| Max. Power consumption | ≤ 1000W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | 1/4scanning |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 400Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | 2500cd/sqm can adjustable |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 960*960 |
| Communication distance | Net-work cable: 100m; Multi-model fiber: 500m; Single-model fiber: 20Km |
| Software | LED media player |
Our Services1. Guarantee(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.(2) We will provide maintenance for a lifetime and charge for the raw materials only. 2. Technology Training(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.(2) We will send our engineers to your country by negotiation. 3. Maintenance and Consultation(1) We provide full maintenance for a lifetime and charge for the raw materials only.(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free. 4. Documents and Certification(1) We provide the operation manual, software, test report and so on.(2) We can also provide all kinds of certification such as CE,RoHS ,SGS, UL and so on. 5. CAD Drawing and Fixing(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.(2) We will send our engineers to your place if we are expected after our negotiation.6. Additional service(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free. Company InformationWe offer complete LED screen service solution to every customer .We ranked 9th in LED industry .We are a LED industry trading platform.We produce new environmentally friendly energy-saving high-tech LED screen.Thanks for 11-year customer trust on FOXGOLDEN. Thanks for 11-year LED material supplier support on FOXGOLDEN.Thanks for 11 -year FOXGOLDEN family constant effort .We have 11-year production experience .We have 11-year designing experience. Trade Terms:| Payment terms: | 35% deposit before production, 65% balance before shipping
-T/T:
-Paypal
-Western Union
-Escrow |
| Packing: | -Standard Export Carton with fully Polyfoam or Pearl Wool
-Flight case;
-Anti-shaking wooden case |
| Shipping: | LED module: 3 to 5 working days upon receiving deposit payment
LED display: 5 to 8 working days upon receiving deposit payment |
| After-Sales-Service: | -Lifetime with professional engineer support.
-Within 1 year, supply spare parts for free if the machine has quality
problem |
Warmly welcome to visit FOXGOLDEN !!!! -:)
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
