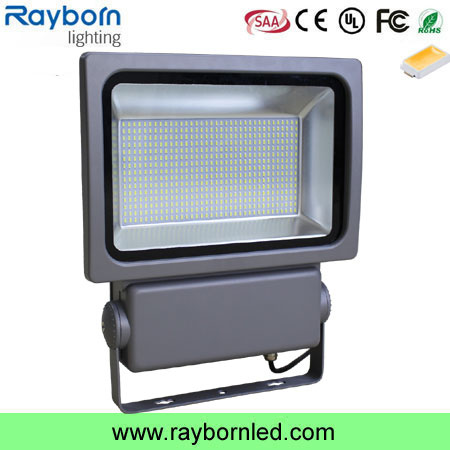

IP65 Outdoor SMD 250W LED Flood Lamp / 250W LED Flood Light with SMD LEDs
Specifications of 250W SMD LED flood light:
| 250W LED Industrial Light Main Technical Parameters |
| Item No.: | RB-FLL-250WS |
| Input Voltage: | AC 100~277V |
| Freqency Range: | 50Hz~60Hz |
| Power Driver: | Mean Well HLG |
| Power Factor: | >0.98 |
| Power Efficiency: | >91% |
| LED Power | 250W |
| LED QTY: | 504PCS 5730 LED |
| LED Working Voltage: | DC 42~48V |
| System Consumption: | 310W |
| LED Luminous Flux | Warm White | 24300 |
| Pure White | 25100 |
| Cool White | 25500 |
| Viewing Angle: | 100degree |
| Centre Illuminance | Height 10M | 127lux |
| Height 20M | 32lux |
| Height 30M | 37lux |
| Illuminance Area | Height 10M | Dia.2261cm points visible |
| Height 20M | Dia.4523cm points visible |
| Height 30M | Dia.6780cm points visible |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 3000K~3500K |
| Pure White | 4000K~4500K |
| Cool White | 6000K~6500K |
| Color Rendering Index | Ra>78 |
|
| Light Distribution: | LED points visible |
| LED Junction Temperature: | ≤115ºC |
| Working Temperature: | -40ºC~50ºC |
| Working Life-span: | 50000 H |
| IP Grade: | IP65 |
| Power Line: | 1.0 mm² three line |
| Connect Wire | Brown | L |
| Blue | N |
| Yellow / Green | G |
| Size: | 430*410*138mm |
| Net Weight: | 10.3KG |
Features of SMD led floodlight :
SMD LED flood lights are adopted optical light distribution,which is no glare,no light pollution,highly directional light and more even luminous beam.
1, High bright imported Epistar Chip SMD5730 as light source:
SMD led flood lights arewith good heat dissipation,low light depreciation,pure light color,no double-shadow High intensity,high resistance of shock or vibration etc.
2, Universally wide range voltage(85-265V):
SMD led flood light advanced constant-current driver be used which can start quickly,be high safety and reliability.
3, Unique heat sink design:
SMD led flood light perfectly combine with power box,effectively transmit the heat,thereby lowering the body's temperature,ensure the life of LED chip and power driver.
4, Surface treatment:
SMD led flood light static sprayed leading to better heat-resisting,high weather resistance,corrosion resistant,water proof and dust proof.
5, All the leakage screw material is 304 stainless steel, and frame is hex screws.
6, waterproof and dust proof:
SMD led floodlight Sealed by reliable silicone rubber, can bear heat above 150 °C,no aging, good sealing of lamp, waterproof and dust proof.
7, Energy saving:
SMD led floodlight use high power LED and it is equipped with imported high efficient power,save more than 70% energy compare with sodium lamp.
Installation information of 250W outdoor SMD LED flood lamp:
1.Check all the parts and accessories of LED flood lights;
2.Must cut off the power supply before installation;
3.Make sure the light is fixed tightly to the surface of place for installation ;
4.Connect the power line of light with power supply, then switch on the power.
5.When the flood lamp is working, it must be kept vertical downward.
SMD LED flood light Primary Competitive Advantages:
1. Attractive design,very popular;
2. Competitive price,you can earn more profit;
3. Epistar Chip SMD5630,0.5w/chip,very bright;
4. IP65 waterproof,can be used in outdoor applications;
5. 3 Years Warranty,we will bear all the cost to replace them for you if there are any quality problems;
6. Die-casting aluminum radiator,very good heat dissipation;
7. The color of the lamp shell: Black and silver is available.
Ageing Test of SMD flood led lighting:
All our LED flood lights will be tested before shipping,so that we can ensure the quality and light performance.Because we must be responsible to our customers.
Applications of SMD LED flood lights:
1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
We have CE,RoHS,SAA,UL certifications and so on.So you can rest assured to use our products.
Packaging of 250W SMD LED Flood Lights:
1).Label on backside of each flood lights and your required label is available.
2).One piece led flood Light per carton.
3).This is our regular packing of the led flood lamps,if you need,we can also custom color packing and put your logo on it.
Shipping of LED flood lights:By sea,air,express (DHL,FedEX,UPS,TNT etc.)
Rayborn Good Service:
1.Your inquirey related to our products or price will be replied within 24 hours.
2.All your inquireies will be well explained by our experienced staff.
3.OEM&ODM,also provide customized service.
4.Distributor ship is available for your unique design and some our current models.
5.We will keep secret for customer sale area,design ideas and all other private information.
We are a professional LED manufacturer who specialize in producing LED high bay lights,LED flood lights,LED street lights,LED tube lights,LED bulbs,LED downlights,LED ceiling lights,LED spotlights,LED strip lights,LED panel lights and so on for many years, with mature technology and preferential price.We also have our own factory and a seasoned engineering team.Welcome to visit our factory.Quality is our culture,we only sell high quality products.For good quality and best price,we are your best choice.
FAQ:
Q1: What is the warranty of your led flood lights?
A: We offer three years guarantee for our LED flood lights,and we will offer you based on your requirements.
Q2: What color temperature we can choose?
A: We offer LED flood lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)
Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K
Q3: Do your led flood lamps can be used in our country?
A: Yes, Our LED flood lamps have wide input voltage AC85-265V, and it can be customized too.
Q4: How do you help me to save freight cost?
A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.
Q5: Do you have any MOQ limite?
A: We don't have MOQ,even only one piece LED flood light you can buy.
Q6: What's the lead time?
A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.
Q7:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.
Q8: Do you accept Paypal or Western Union for sample order?
A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.
Pls don't feel hesitate to contact us if our products hit your requirements.Pls give me one enquiry,I will give you ten surprises.Believe me,I am sincere Charmaine.
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
