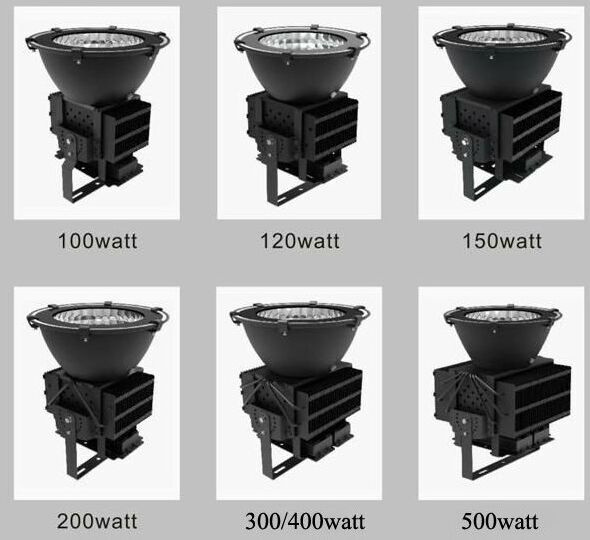

IP65 Industrial Lighting 100W to 500W Light LED High Bay
Product Specifications:
Led Chip: CREE
LED power: 400W
Power Efficiency>94%
The color of the lamp shellBlack/Silver
Color Rendering Index(CRI)Ra>80
Color TemperatureCool white: 6000-7000K
Pure white: 4500-5500K
Warm white: 3000-3500K
MaterialAluminum and catheter
Light Distribution Curve(Beam Pattern)Symmetric expression/Circular glare/square luminous spot
Input Voltage: AC90-305V / MEAN WELL Driver UL/CB/CE
Frequency Range47-63Hz
Power Factor(PF)0.98-0.99
Total Harmonic Distortion(THD)< 15%
Storage Temperature-40Centi-degree--+80Centi-degree
Working Environment-40Centi-degree--+50Centi-degree; 10%-95%RH
Junction Temperature(Tj)60Centi-degree± 10%(ta=25Centi-degree)
Light Body and Lampshade MaterialAluminum Alloy and ASA / PC
Working Lifetime> 50, 000hrs
IP RatingI: P65
Warranty: 5years
| 400W LED High Bay Light Main Technical Parameters |
| Item No.: | RB-HB-400WCR |
| Input Voltage: | AC100-277V |
| Freqency Range: | 50Hz~60Hz |
| LED Chip | CREE Xte/Samsung |
| Power Driver: | Meanwell HLG |
| Power Factor: | >0.98 |
| Power Efficiency: | >92% |
| LED Power | 400W |
| LED QTY: | 220PCS |
| LED Working Voltage: | DC 42~48V |
| System Consumption: | 405W |
| LED Luminous Flux | Warm White | 38600LM |
| Pure White | 41000LM |
| Cool White | 41200LM |
| Viewing Angle: | 25/60/90 degree |
| Centre Illuminance | Height 10M | 424lux |
| Height 20M | 107lux |
| Height 30M | 47lux |
| Illuminance Area | Height 10M | Dia.1100cm points visible |
| Height 20M | Dia.22014cm points visible |
| Height 25M | Dia.3302cm points visible |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 2800K~3200K |
| Pure White | 5000K~5700K |
| Cool White | 6000K~6500K |
| Color Rendering Index | Ra>80 |
| Light Distribution: | LED points visible |
| Light Design: | LED+Reflectors secondary light distribution |
| LED Junction Temperature: | ≤115ºC |
| Working Temperature: | -40ºC~50ºC |
| Working Life-span: | 50000 H |
| IP Grade: | IP65 |
| Power Line: | 1.0 mthree line |
| Connect Wire | Brown | L |
| Blue | N |
| Yellow / Green | G |
| Net Weight: | 11.2KG |
400w cree high bay led Applications:
1. Workshop, factory, warehouse, highway toll station.
2. Gas station, supermarket, exhibition, gym.
3. The hall conference room mall golf course such as ship panoramic lighting at the airport
400w Industrial led lighting Features:
1. Using high chrome plating fins aluminum as heat sink.
2. Using Cree LED chip
3. Using Mean Well power driver
4. IP level is IP67, Can be used outdoor.
5. Base: Hook with safety rope
6. Beam angle: 120/90/40°
7. With two pieces safety cable.
8. Energy saving than traditional lamp about 70%~80%
9. Main part of heat dissipation is under the protection of several patents
10. Compliance with CE&RoHS&FCC&PSE&ULstandard regulations
11. Meeting the specifications of the traditional lamp can directly replace the traditional mercury lamp, No additional construction
High Power High Bay Light Competitive Advantage:
1. CE & RoHS & TUV UL approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
Lead time for hot sale 400w LED industrial light
1 Less than 50 pcs: 2-7 working days.
2 Between 50 pcs and 1000 pcs: 7-18 working days.
3 More than 1000 pcs: 19-30 working days.
Our service:
1. Your inquiry related to our products or prices will be replied in 24hrs
2. Quality Feedback: Reply within 24 hours, treatment is given 3 days
3. OEM &ODM, any your customized lighting we can help you to design and put into product.
4. Distributorship are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information
FAQ:
Q1: What is the warranty of your led high bay lights?
A: We offer three and five years guarantee for our LED high bay lights,and we will offer you based on your requirement.
Q2: What color temperature we can choose?
A: We offer LED high bay lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)
Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K
Q3: Do your led high bay lights can be used in our country?
A: Yes, Our LED high bay light has wide input voltage AC100-240V, and it can be customized too.
Q4: How do you help me to save freight cost?
A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.
Q5: Do you have any MOQ limited?
A: We don't have MOQ,even only one piece LED high bay light you can buy.
Q6: What's the lead time?
A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.
Q7:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.
Q8: Do you accept Paypal or Western Union for sample order?
A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.
