| Price: | US $ 570-850/Square Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Square Meter |
| Pay Type: | L/C,T/T,Paypal,Western Union |
The design has the features of "light","thin", "fine", "penetrate ". Convenient installation, withstand wind and dustproof. Application for the stage and surrounding.

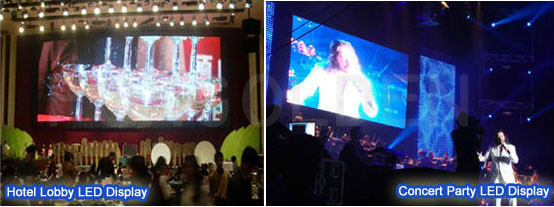

This product has been applicated at many fields such as stage, bar, entertainment TV and so on, it has been shown the unique artistic charm and aesthetic feeling of space imagination.
The brightness can be adjusted from 500 nits to 2000 nits without damaging the gray level, matching with calibration technology, it has the great expressive color.
The product is with convenient installation, and flight connectors connecting. Now it has become the most popular fashion elements at the digital stage and bar.
High refresh frequency can meet the requirement of the shooting on the stage, presents the perfect effect.
| Item | 5mm Indoor LED Display |
| Pixel Pitch: | 5mm |
| Pixel density(pix/m2) | 40000 |
| LED type : | SMD3528 |
| Viewing angle: | H140°,V140° |
| Brightness:(nits) | 2500 |
| Driving Method : | 1/8 |
| Driver IC | MBI5024 |
| Color Depth: | 16bit |
| Refresh rate:(Hz) | 1000 |
| Module Size(W*H) | 320×160mm |
| Cabinet Size(W*H) | 640×640mm |
| Cabinet Material: | Aluminum |
| Cabinet weight(kg): | 30 |
| voltage : | 110/220V |
| Avarage Power Consumption: | 550 W |
| Max Consumption : | 1250 W |
| maintenance way: | rear repair |
| IP Rrating: | IP31 |
| Operating temperature : | -20~ 50 |
| Storage temperature: | -40~ 60 |
| Operation humidity: | 10~90%RH |
| Storage humidity: | 10~90%RH |
| Life span (hrs) | ≥50000 |
| Compliant standard: | CCC\CE |
| Prod Model: | FOX-P5-I-S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

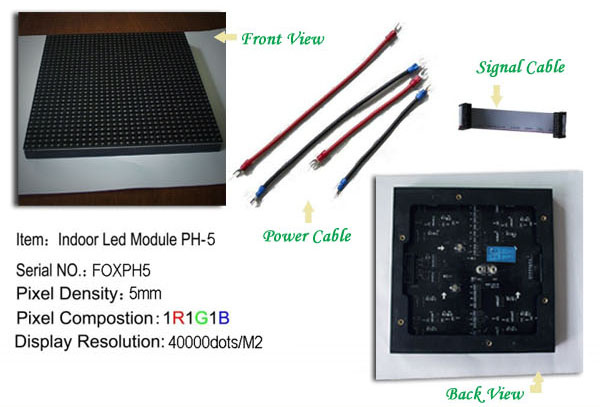

| Module Size(W*H): | 160mm*160mm |
| Cabinet Size(W*H): | 640mm*640mm |
| Cabinet Material: | Aluminum |
| Cabinet Weight(Kg): | 30 |
| Avarage Power Consumption: | 550 W/M2 |
| Best Viewing Distance: | >5m |
| Brightness: | 1800-2200CD/M2 |
| Driving Method: | 1/8scanning |
| Life Span: | 100000 |
| Working Temperature: | -20---80 |
| Tube Chip Color: | Full Color |
| Display Function: | Video Display |
| Pixel Pitch: | 5mm |
| Pixel Configuration: | 1R,1G,1B |
| Pixel Density: | 40,000 dots / m² |
| Scanning Mode: | 1/16 Scan |
| System Operating Platform: | WIN XP |
| Display Type: | LED Video Display |
| Application: | Shopping Guide |
| IP Rating: | IP43 |
| Certification: | CCC |
