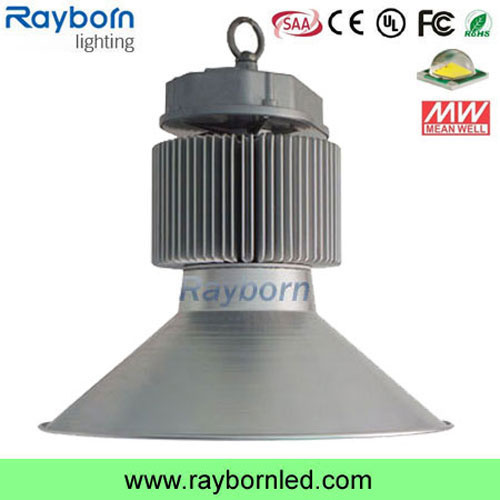

Hot Sale 200W Factory Industrial High Bay hanging LED Light
200W LED Industrial Light Main Technical Parameters |
Item No.: | RB-HB-415-200W |
Input Voltage: | AC 100-277V |
Freqency Range: | 50Hz~60Hz |
LED Chip: | Bridgelux 45 mil |
Power Driver: | Mean Well |
Power Factor: | >0.98 |
Power Efficiency: | >91% |
LED Power | 200W |
LED QTY: | 1pc*200W |
LED Working Voltage: | DC 30~36V |
System Consumption: | 206W |
LED Luminous Flux | Warm White | 19200LM |
Pure White | 20590LM |
Cool White | 20590LM |
Viewing Angle: | 45/90/120degree |
MaximumIlluminance | Height 3M | 792LUX |
Height 4M | 446LUX |
Height 5M | 285LUX |
Illuminance Area | Height 3M | Dia.8.7 M points visible |
Height 4M | Dia.11.5M points visible |
Height 5M | Dia.14.5 M points visible |
Illuminance Uniformity: | >0.6 |
Color Temperature | Warm White | 3000K~3500K |
Pure White | 5500K~5700K |
Cool White | 6500K~6700K |
Color Rendering Index | Ra>78 |
|
Light Distribution: | LED points visible |
LED Junction Temperature: | ≤115ºC |
Working Temperature: | -40ºC~50ºC |
IP Grade: | IP54/IP65 |
Working Life-span: | 50000 H |
Power Line: | 1.0 mthree line |
Connect Wire | Brown | L |
Blue | N |
Yellow / Green | G |
Heatsink | Integration of Thermal conductivity Heat dissipation phase change technology |
|
color of the lamp shell | Black and silver is available |
Certificate | CE /UL/ROHS |
Net Weight: | 8.5KG |
Led High bay light Features:
1. Using single powerful LED(30-250W)as the light source, with unique lighting design of Multi- chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
2. High bay lighting Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.
3. High bay led The heat sink surface have conducted anodic oxidation anticorrosive process, with compact structure and aesthetic appearance, water proof and dust proof.
4. High bay light Adopted advanced constant current controlling techniques, wide voltage range available and global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution.
5. High color rendering, meet the requirement of different environment, improve working efficiency.
6. Easy installation and demolition, wide range of application. Environment-friendly, no air pollution, no lead-free, no-mercury .
High Power High Bay Light Competitive Advantage:
1. CE & RoHS & TUV UL approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
high bay led Applications:
Widely used in factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.
