| Price: | US $ 650-800/Square Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Square Meter |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Parameter | Value | |
| Physical Parameter | Pixel Configuration | 1515 black body 3in1 SMD |
| Pixel Pitch (mm) | 3 | |
| Pixel matrix per panel | 64×64 | |
| Pixel density(pixels/sq.m.) | 111111 | |
| Module Dimensions (LxWxH)/(mm) | 192×192 | |
| Cabinet Dimensions (LxWxH)/(mm) | 576×576×100 | |
| Panel material | Aluminum-alloy | |
| Cabinet weight (kg/panel) | 10.2 | |
| Electronic Parameter | Color Grayscale (Bit) | 14 |
| Gray Scale per Color (level) | 16384 | |
| Refresh Rate(Hz) | 2400 | |
| Driving Type | 1/15 | |
| Frame Frequency(Hz) | 50/60 | |
| Signal Transmission Distance (m) | CAT5 cable:<100 m; Single mode fiber:<10 km | |
| Optical Parameter | Brightness(nit) | 1000 |
| Optimal Horizontal Viewing Angle(°) | 160 | |
| Optimal Vertical Viewing Angle(°) | 140 | |
| Electrical Parameter | AC Input Voltage(V) | 100~240 |
| AC Input Frequency(Hz) | 50/60 | |
| AC Input Power Maximum Value(W/sq.m | 555 | |
| AC Input Power Typical Value(W/sq.m) | 185 | |
| Circumstanc e Parameter | Storage Temperature(ºC) | -20~+50 |
| Operating Temperature(ºC) | -10~+40 | |
| Storage Humidity(RH) | 10%~90% | |
| Operating Humidity(RH) | 10%~90% | |
| IP rating (Front/Rear) | IP40 | |
| Lifetime Typical Value(hrs) | 100000 | |
| Installation type for rental product | Cabinet installation type | rental\fix |
| Maximum number of panel for Lifting | 16 |
| Prod Model: | fox-indoor-p3 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

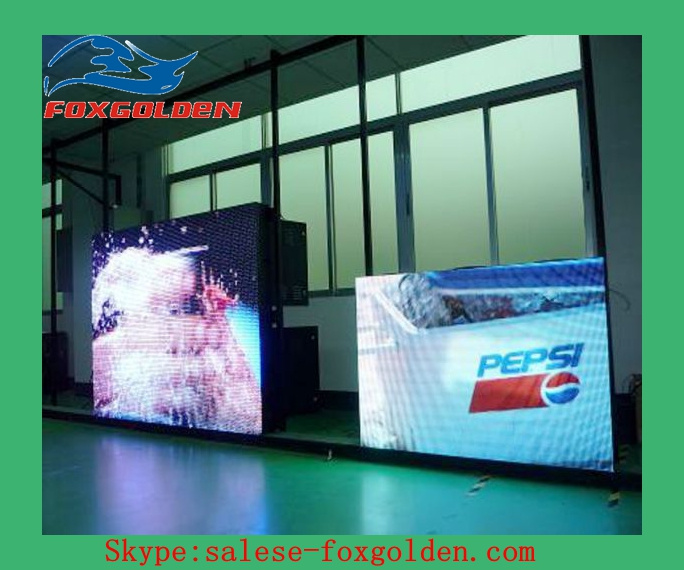

| Style: | Indoor P3 SMD Full Color LED Display for Wedding P |
| Size Of Unit Board: | 192mm*192mm |
| Resolution Of Unit Board: | 64*64 |
| Density Of Pixel: | 15625 |
| Colors: | 1777216 |
| Best Viewing Distrance: | More Than 10m |
| Max Power Consumption: | Less Than 1100W/M2 |
| Color Temperature: | -20°-- 80° |
| Certificate: | CE&RoHS |
| Tube Chip Color: | Full Color |
| Display Function: | Video Display |
| Pixel Configuration: | 1R,1G,1B |
| Scanning Mode: | 1/8 Scan |
| System Operating Platform: | WIN XP |
| Application: | Concert |
| IP Rating: | IP43 |
| Certification: | ETL |
| Pixel Pitch: | 3mm |
| Pixel Density: | 111111DOT/Sqm |
