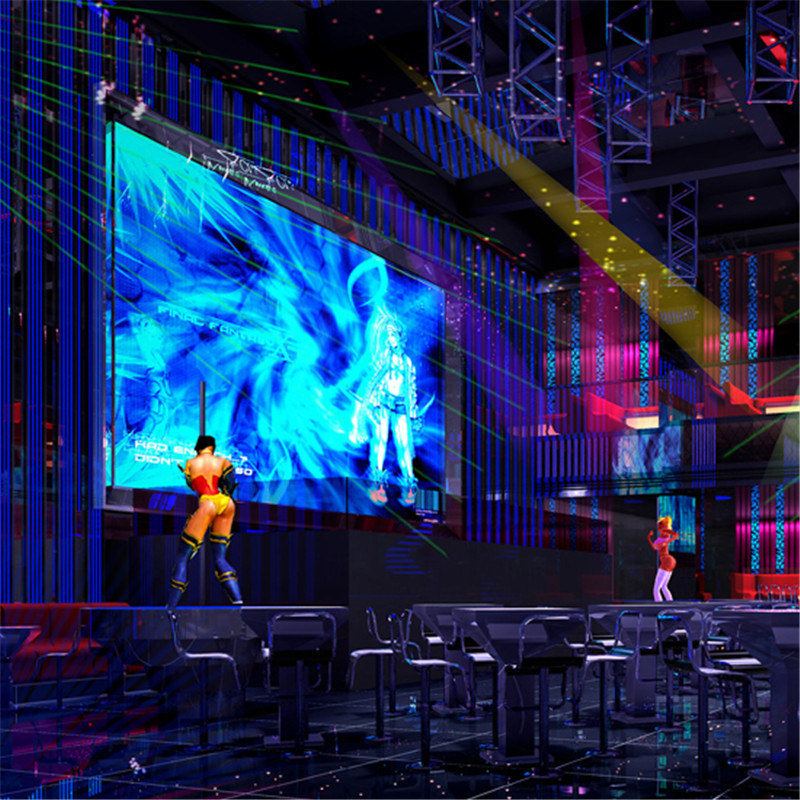

We are devoted to the R&D and production of LED displays and LED Module. Our products range covers full color LED displays, LED module, LED strips screen etc. These fixtures can be applied in indoor & outdoor, such as concerts, entertainment places, advertisements, hotels, and buildings up to your imagination of your projects.
With more than ten-year experience accumulated in the show production and project engineering field, we know exactly what kind of product characters are the most important to the show companies and project companies. Those are convenient and easy setting-up, stability and with the best visual effects. Thus, we can make the right products meeting the requirements of our customers.
Our products have been used in numerous famous tours, concerts, television stations and projects both at home and abroad. We always emphasize on product quality and good service. (Some of our products have passed the evaluation of CE certification). We will still do our best to offer the best products with the best effects as well as the best service for you.
Basic data:
There is DIP, SMD, and Dotmatrix LED display for customer choosing.
This module can be change into Pixels as followed to cater for various needs: P4, P4.75, P6, P7.62, P10, P12, P14, P16, P20, P25, P31.5, P40, P80.
| The technology parameter of P5 indoor |
| NO | Item | P5 |
| 1 | Pixel pitch | 5mm |
| 2 | Size of unit board | 160mm x160mm |
| 3 | Resolution of unit board | 32 X 32 |
| 4 | Density of pixel | 40000dots/m2 |
| 5 | Pixel configuration | 1R1G1B |
| 6 | Red wavelength | 625±2nm |
| 7 | Green wavelength | 525±2nm |
| 8 | Blue wavelength | 470±2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | ≥10m |
| 11 | Horizontal viewing angle | 140° |
| 12 | Maximum power consumption | 600~1000W/m2 |
| 13 | Brightness | 1500-5000cd /m2 |
| 14 | Gray scale | 16bits per color |
| 15 | Color temperature | 6500k |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | 1/8scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | 1500Hz |
| 20 | Working voltage | AC220V/110V±10% |
| 21 | IP grade | IP20~IP65(adjustable) |
| 22 | Working temperature | -20°C~80°C |
| 23 | MTBF | >10000 hours |
| 24 | Life span | >100,000 hours |
| 25 | Computer operation system | Win XP/Vista/ Win 2000/WIN7ect. |
| 26 | Video signal | RF, S-Video, RGB, RGBHV, YUV, YC.ect |
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
