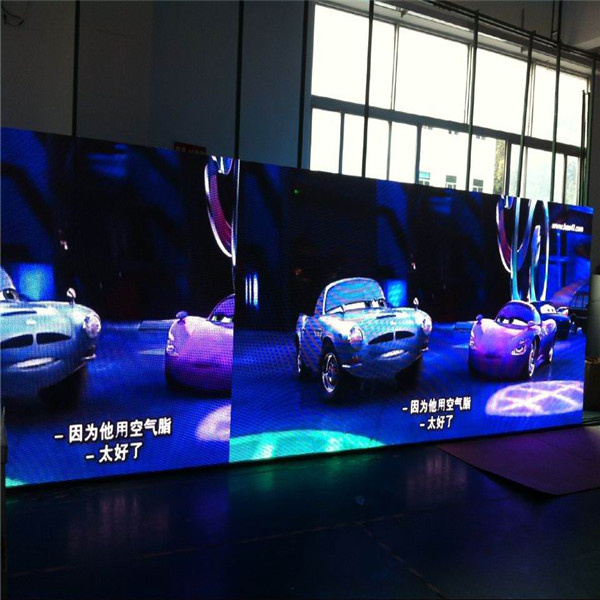

High Resolution Indoor Full Color Advertisement LED Display
Feature and Advantage
1. Waterproof: IP54front, IP45back
2. Best viewing distance: 8-150m
3. White balance brightness: 3000CD/sqm adjustable
4. Horizontal viewing angle: 120degree
5. Working temperatue: -20degree-+80degree
6. Life span: More than 100, 000hours
7. Contrast ratio: 4000: 1
8. Pconsumption: 200W
Application and Market
1. Application
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and our current models
4. Protection of your sales area, ideas of design and all your private information
Trade Terms
1. Package: Wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits, 60% balance before delivery 3. Shipping port: Shenzhen
4. Warranty time: 7years
5. Delivery time:
Sample order, 3working days;
10sqm-50sqm, 8-18working days;
50sqm-100sqm, 25-28working days;
| Description | Technical parameter |
| Unit module | Module size | 160*160mm |
| Pixel pitch | 10mm |
| Pixel density | 10, 000dots/m2 |
| Pixel configuration | 3 in 1 |
| Led specification | SMD3528 |
| Pixel resolution | W: 16dots*H: 16dots |
| Cabinet | Dimension | 960mm*960mm*110mm |
| Cabinet material | Aluminum |
| Weight | 45 kg/sqm |
| Quantities of module | 36pcs |
| Power supply | 6pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 65kg |
| Best viewing angle | 10-100m |
| Temperature | Storage: -35degree~+85degree |
| Working: -35degree~+85degree |
| Thickness | 11cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 200W |
| Max. Power consumption | ≤ 1000W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | 1/4scanning |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 400Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | 1500-2800cd/sqm can adjustable |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM |
| Software | LED media player
|
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 7years
FOXGOLDEN GROUP LTD (www.foxgolden.com)is a professional high quality LED display manufacturer.
Since 2004, we have been dedicating to the aim that producing high quality products,
and now FOXGOLDEN has been well integrated in terms of R&D,produce, project, capital and marketing.
As one of the professional manufacturers of LED industry, FOXGOLDEN Group Limited has a high quality,professional and
strong production team, marketoriented, constantly innovate based company
not only manufacturing technology in traditional LED display screen,
constantly improve product cost benefit and market competition, but in the special use of the display technology has a breakthrough.
The absolute performance and competitive price to the perfect combination, the LED display screen to every corner of the world,
the market at home and abroad to win wide reputation.
At present, Foxgolden Group Limited has formed a series of LED display products: outdoor LED display,
indoor LED display, portable LED screen, foldable LED screen, soft LED screen rental LED display,
stadium LED display, small pitch pixel LED display etc..
FAQ:
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: What's the pixel pitch for Outdoor LED Display Screen?
A3: Outdoor (P6mm / P8mm/P10mm)
Q4: Where is it used for?
A4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.
Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Linsn controlling system.
Q6: What's the controlling system?
A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system,
like Xixun,TF, Colorlight, etc.
Q7: How about the size of project?
A7: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size.
I will appreciate it if any drawing files about installation offered.
Q8: How about your service?
A8:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual,
easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
. Delivery time: 3-12working days
