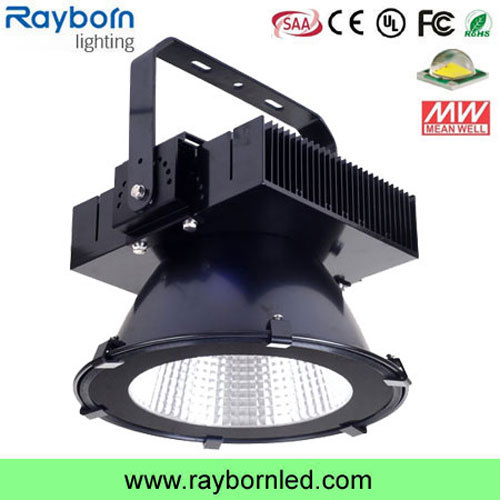

High Quality 200W Gas Station Factory High Bay LED Lights
Product Specifications:
200W LED Industrial Light Main Technical Parameters |
Item No.: | RB-HB-200WB |
Input Voltage: | AC 100-277V |
Freqency Range: | 50Hz~60Hz |
LED Chip: | Samsung/CREE |
Power Driver: | Mean Well |
Power Factor: | >0.98 |
Power Efficiency: | >91% |
LED Power | 200W |
LED Working Voltage: | DC 30~36V |
System Consumption: | 206W |
LED Luminous Flux | Warm White | 19200LM |
Pure White | 20590LM |
Cool White | 20590LM |
Viewing Angle: | 25/60/90 degree |
MaximumIlluminance | Height 3M | 792LUX |
Height 4M | 446LUX |
Height 5M | 285LUX |
Illuminance Area | Height 3M | Dia.8.7 M points visible |
Height 4M | Dia.11.5M points visible |
Height 5M | Dia.14.5 M points visible |
Illuminance Uniformity: | >0.6 |
Color Temperature | Warm White | 3000K~3500K |
Pure White | 5500K~5700K |
Cool White | 6500K~6700K |
Color Rendering Index | Ra>78 |
|
Light Distribution: | LED points visible |
LED Junction Temperature: | ≤115ºC |
Working Temperature: | -40ºC~50ºC |
IP Grade: | IP65 |
Working Life-span: | 50000 H |
Power Line: | 1.0 mm three line |
Connect Wire | Brown | L |
Blue | N |
Yellow / Green | G |
Industrial led lighting Features:
1. Using high chrome plating fins aluminum as heat sink.
2. Using Cree/Samsung LED chip
3. Using Mean Well power driver
4. IP level is IP65, Can be used outdoor.
5. Base: Hook with safety rope
6. Beam angle: 25/60/90°
7. With two pieces safety cable.
8. Energy saving than traditional lamp about 70%~80%
9. Main part of heat dissipation is under the protection of several patents
10. Compliance with CE&RoHS&FCC&PSE&ULstandard regulations
11. Meeting the specifications of the traditional lamp can directly replace the traditional mercury lamp, No additional construction
High Power High Bay Light Competitive Advantage:
1. CE & RoHS & TUV UL approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
LED high bay Applications:
1. Workshop, factory, warehouse, highway toll station.
2. Gas station, supermarket, exhibition, gym.
3. The hall conference room mall golf course such as ship panoramic lighting at the airport
