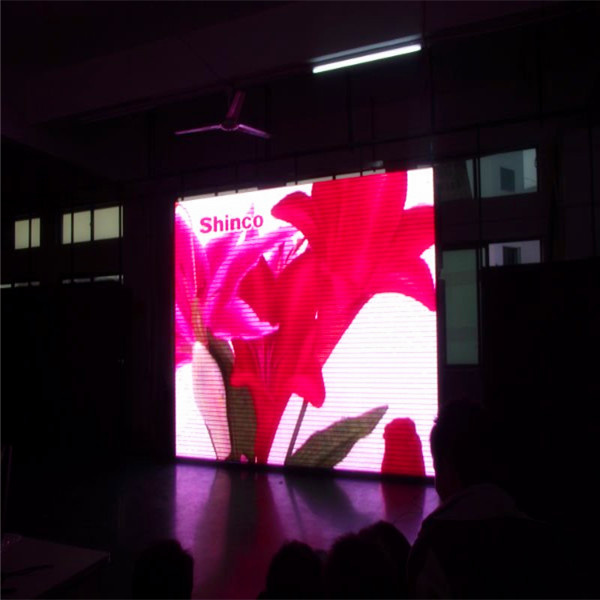

High Brightness P7.62 LED Display (SMD Indoor full color)
1, big viewing angle
2, uniformity brightness
3, high color saturation
4, high definition
5, vivid, smooth result
SMD 3 in 1 technology is widely used in full color indoor LED display which means that one red, one green and one blue chip are encapsulated in one pixel. All pixels are averagely distributed on the whole LED display.
The outstanding advantages of Indoor SMD full color LED display is with big viewing angle, uniformity brightness, high color saturation, and high definition, vivid, smooth result when playing the texts or images.
Leder's full color SMD LED display is with the features of high stability, convenient for installation and maintenance, rich playing content, quick reaction, low failure rate and so on.
It is well applied to city halls, airports, waiting rooms, railway stations, bus waiting rooms, luxury office buildings, factories, enterprises, etc
| ITEMS | P7.62 |
| Module | Pixel Pitch | 7.62mm |
| Pixel Density | 17222dots/m 2 |
| Led Lamp Type | SMD 3 IN 1 |
| Led Lamp Size | 3.5× 2.8mm |
| Led Configuration | 1R1B1G |
| Module Size | 244× 122mm |
| Module Resolution | 32× 16 |
| Scan Mode | 1/8 duty |
| Drive Mode | Constant Current |
| Cabinet | Cabinet Size | 732× 732mm |
| Cabinet Resolution | 96× 96 |
| Module Quantity | 18 |
| Cabinet Weight | less than 25kg/m 2 |
| Display | Brightness | ≥ 1500cd/m 2 |
| Contrast Ratio | ≥ 2000: 1 |
| Viewing Angles | 140° (H)/140° (V) |
| Min. Viewing Distance | 7.5m |
| Gray Scale(Single Color) | ≥ 12bits/4096 level |
| Colors | 68.7 billion |
| Power Supply | Average Power Consumption | 220w/m 2 |
| Working Voltage | AC 90 to 260V, 50 to 60Hz |
| Control System | Frame Changing Rate | 60 to 85Hz |
| Refresh Rate | 600 to 4000Hz |
| Brightness Adjustment | 0 to 100% |
| Ganma Correction | (-0.5 to 5.0) |
| Color Temperature | 3000 to 9300K |
| Brightness Correction Mode | By Pixel, Module, Cabinet Correction |
| Data input Source | AV, S-Videom, VGI, DVI, HDMI, SDI, DP |
| Control Method | Synchronization with computer |
| Data Transmission Distance | 100mby UTP CAT5; 500m by Multi Optic Fiber; 10km by Single Optic Fiber |
| Operation Environment | Windows(2000, XP, Vista, 7) |
| Reliability | Storage Temperature | (-40 to 85)centi degree |
| Working Temperature | (-20 to 50)centi degree |
| Working Humidity | 10% to 90% |
| Lifespan | 100, 000Hrs |
| MTBF | 5000Hrs |
| IP Rating | IP43 |
| Blind Spot Rate | ≤ 0.01% |
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 7years
FOXGOLDEN GROUP LTD (www.foxgolden.com)is a professional high quality LED display manufacturer.
Since 2004, we have been dedicating to the aim that producing high quality products,
and now FOXGOLDEN has been well integrated in terms of R&D,produce, project, capital and marketing.
As one of the professional manufacturers of LED industry, FOXGOLDEN Group Limited has a high quality,professional and
strong production team, marketoriented, constantly innovate based company
not only manufacturing technology in traditional LED display screen,
constantly improve product cost benefit and market competition, but in the special use of the display technology has a breakthrough.
The absolute performance and competitive price to the perfect combination, the LED display screen to every corner of the world,
the market at home and abroad to win wide reputation.
At present, Foxgolden Group Limited has formed a series of LED display products: outdoor LED display,
indoor LED display, portable LED screen, foldable LED screen, soft LED screen rental LED display,
stadium LED display, small pitch pixel LED display etc..
FAQ:
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: What's the pixel pitch for Outdoor LED Display Screen?
A3: Outdoor (P6mm / P8mm/P10mm)
Q4: Where is it used for?
A4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.
Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Linsn controlling system.
Q6: What's the controlling system?
A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system,
like Xixun,TF, Colorlight, etc.
Q7: How about the size of project?
A7: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size.
I will appreciate it if any drawing files about installation offered.
Q8: How about your service?
A8:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual,
easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
. Delivery time: 3-12working days
