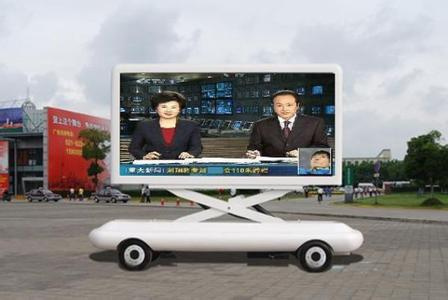

Outdoor full color LED display
Usage: Outdoor
Full color with high contrast
High quality LED display
CertificationCE, FCC, RoHS
P12 out full color LED Display Specifications:
1. LED Display, Brightness.
2. LED Display: Large viewing angle
3. Outdoor full color LED Display
Adesen outdoor Full Color LED Display
1LED Display Method: True/Virtual
2LED Display: >12 m
3LED Display Pixel Pitch: 12 mm
4LED Display after-sales
P12 out full color LED Display Main features:
Silan brand DIP 346 LED lamps, MBI5024 driver IC, Meanwell Power supply
Aluminium material cabinets, very light and easy to move
Fast lock hanging pole, easy to install
Fast power and signal jacks and cable, easy to connect
Packed by flight case, easy to move and pack
Console and power box with flight case
Refresh rate >1000Hz, can meet the TV broadcasting
High brightness is ≥ 6000 CD/m2. Can meet your outdoor using request
Brightness by itself refer to environment or by hand, then can used for outdoor and indoor
DOT-DOT correction function, can make vivid image and more 20% using life
Virtual technology is applied to the LED screen, which can realized 4 times resolution with the same quantity LED lamps
P12 out full color LED Display Specification
|
Items |
P12 |
|
Classification of items |
Full color |
|
Application environment |
Outdoor |
|
Pixel pitch |
12mm |
|
LED lamps |
Silan DIP 346(famous brand) |
|
Optimum viewing distance |
12M |
8M |
|
Optimum viewing angle |
H: 110° V: 60° |
|
Driver IC |
Macroblock 5024(famous brand) |
|
Power supply |
Meanwell brand(famous brand) |
|
Module size |
192X192mm |
|
Module resolution |
16x16dots |
|
Physical pixel |
6944 dots/ m 2 |
|
Pixel constitution |
2R1G1B |
2R1G1B virtual |
|
Cabinet size |
768X768mm |
|
Cabinet resolution |
64X64dots |
128X128dots |
|
Cabinet material |
Iron coated epoxy |
|
Cabinet structure |
Outdoor fixed |
|
Cabinet weight |
60kg/sqm |
|
Typical power consumption |
400w/sqm |
|
Driving method |
1/2 scan Constant Current |
|
Frame frequency |
≥ 60Hz/s |
|
Refresh Rate |
≥ 400Hz/s |
|
Luminance of White Balance |
≥ 6000 Nits |
|
Operating environment temperature |
-30° C- +50° C |
|
IP rating |
Front/rear; IP65/IP43 |
|
Working voltage |
110-220VAC+-10% |
|
Grey Scale/ Color |
Displaying colors≥ 16.7M(Synchronized) |
|
Brightness Adjustment |
256 levels of each color |
|
Input single |
RF, S-Video, RGB, RGBHV, YUV, YC & Composition, etc |
|
Control system |
DVI signal input controller |
|
Average level of no failure time |
> 5000 hours |
|
Life span |
> 100000 hours |
|
Functionaless Dot Rate |
< 0.0001 |
