Manufacture and advantage ( our factory is specialised in stadium and Gym LED screen )
1. Key technology: 8 years experience LED lamp encapsulation
2. High quality: 5 years warranty with UL, CE, RoHS, ISO9001: 2000
3. After-sale service: Response customer within 1hour, solve problem within 24hours

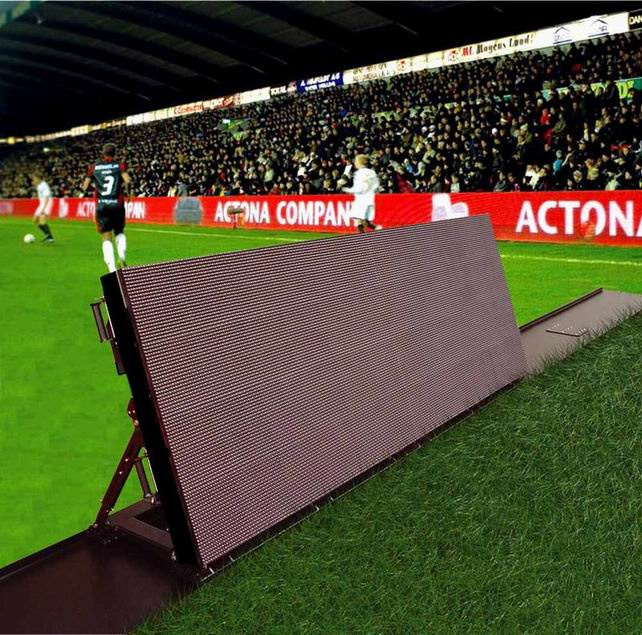

Football stadium perimeter LED screen display, composition ( 2R1G1B, ) football stadium, basketball stadium, skating venue etc.
Pixel pitch evalable for the same project in our factory ( P10-P12-P16-P20-P25-P31.25-P40 )
With different price please contact to get the lates price
Parameter
| Numbers | Technical indexes | Specification |
| 1 | Pixel Pitch | 16mm |
| 2 | Density of Pixel | 3906dots/M2 |
| 3 | Pixel configuration | 1R1G1B |
| 4 | Size of Single Board | 256mmX 256mm |
| 5 | Colors | 16777216 |
| 6 | Best Viewing Distance | more than 14m |
| 7 | Horizontal Viewing Angle | 140° |
| 8 | Maximum Power Consumption | less than 300W/m2 |
| 9 | Brightness | 8500cd/m2 |
| 10 | Gray Scale | 16 bits per color |
| 11 | Color Temperature | 6500k |
| 12 | Control Method | synchronization/asynchronization |
| 13 | Driving method | static scanning |
| 14 | Frame Frequency | 60Hz |
| 15 | Refresh frequency | ≥ 350Hz |
| 16 | Working Voltage | AC220V/110± 10% |
| 17 | IP grade | IP68 |
| 18 | Working temperature | -20degree centigrade ~ +80 degree centigrade |
| 19 | Computer operation system | Win 98/ Win XP/ Win 2000/winme/win7 |
| 20 | Brightness adjustment | 256 grade manual, 8 grade automatic |
| 21 | Video signal | RF, S-Video, RGB, RGBHV, YUV, YC. ect |
| 22 | Software | LED play software |
| 23 | MTBF | More than 10000 hours |
| 24 | Life Span | 100, 000 hours |
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
