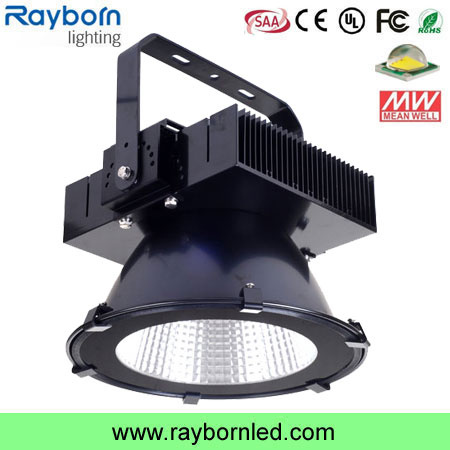

High Bay Fixtures Led 200W High Bay Light IP65 Grade
| Item No.: | RB-HB-200WB |
| Input Voltage: | AC 100-277V |
| Freqency Range: | 50Hz~60Hz |
| Led Chip: | Cree/LG/Samsung |
| Power Driver: | MeanWell |
| Power Factor: | >0.98 |
| Power Efficiency: | >91% |
| LED Power | 200W |
| LED QTY: | 1pc*200W |
| LED Working Voltage: | DC 42~48V |
| System Consumption: | 206W |
| LED Luminous Flux | Warm White | 19200LM |
| Pure White | 20590LM |
| Cool White | 20590LM |
| Viewing Angle: | 60/90 degree |
| Average Illuminance | Height 3M | 994LUX |
| Height 4M | 560LUX |
| Height 5M | 358LUX |
| Illuminance Area | Height 3M | Dia.3.5 M Round spot |
| Height 4M | Dia.4.6 M Round spot |
| Height 5M | Dia.5.8M Round spot |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 3000K~3500K |
| Pure White | 5500K~5700K |
| Cool White | 6000K~7000K |
| Color Rendering Index | Ra>80 |
|
| Light Distribution: | LED points visible |
| LED Junction Temperature: | ≤115ºC |
| Working Temperature: | -40ºC~50ºC |
| Working Life-span: | 50000 H |
| IP Grade: | IP65 |
| Power Line: | 1.0 mthree line |
| Connect Wire | Brown | L |
| Blue | N |
| Yellow / Green | G |
Features:
1. Patented quadric lighting reflector, beam angle 45/90/120 available.
2. Cooper center of radiator, long lifespan, can be used for 50, 000 to 100, 000 hours
3. Its working voltage (AC85V-265V) can overcome the electrical grid, noise pollution and unstable light caused by ballast
4. Integrated Multiple LED BridgeLux chip with constant current, Taiwan meanwell power supply
5. Pure aluminum reflector sharply improve the reflect rate, and ensure the output lumen flux.
6. Lamp surface treated with anodization, corrosion-resistant, artistic appearance, and ensure the operating life of the LED light source.
7. Lighting intensity is uniform and without glare.
8. Cold light source, no heat radiation, harms-free to the eyes and skin, ead-free, mercury free, green lighting solution
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
