Function and Technology Character:
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously.
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via Lan and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
Product name: p4 indoor smd full color led display
Our p4 cabinet types: indoor fixed cabinets and indoor rental cabinet

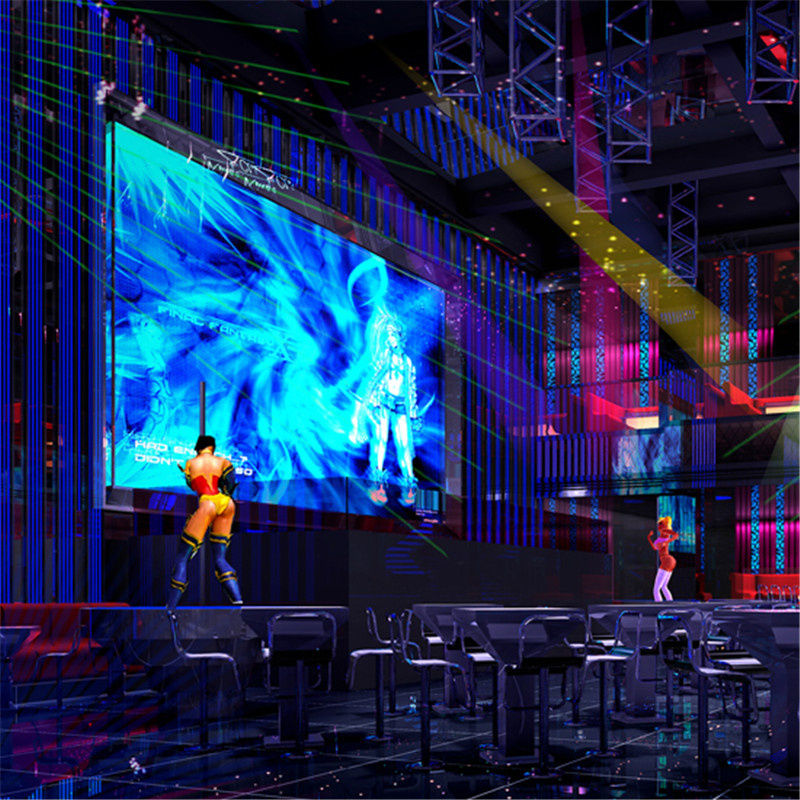

Application:widely used for indoor text, image,video advertising,like:station,subway,airport,
Theater,concert,exhibition,company receiption,etc.
Product feather and advantages:
1. Smd 3 in 1 ---big viewing angle 140 degrees
2. Vivi and colorful display ---top performance
3. High resolution ---62500dot/m2,HD as tv--top performance
4. High quality ---3/5 years warranty,quality reliable
5. Certification ---UL,CE,RoHS certification
P4 indoor smd 3 in 1 full color led display parameters:
| Item | P4 |
| Pixel pitch | 4mm |
| Size of unit board | 256mm X 128mm |
| Resolution of unit board | 64 x 32 |
| Density of pixel | 62500dots/m2 |
| Pixel configuration | 1R1G1B-smd |
| Red wavelength | 625±2nm |
| Green wavelength | 525±2nm |
| Blue wavelength | 470±2nm |
| Colors | 16777216 |
| Best viewing distance | ≥4m |
| Horizontal viewing angle | 140° |
| Maximum power consumption | 500W/m2 |
| Brightness | 2000-4000 cd /m2 |
| Gray scale | 14bits per color |
| Color temperature | 6500k |
| Control method | Synchronization &
Asychronization |
| Driving method | Constant 1/16 scanning |
| Frame frequency | 60Hz |
| Refresh frequency | ≥180Hz |
| Working voltage | AC220V/110V±10% |
| IP grade | Front Ip65/back IP45 |
| Working temperature | -20°C~+80°C |
| MTBF | 10000 hours |
| Life span | 100,000 hours |
Our Service
Guaranttee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance lifetime and charge for the raw materials only.
Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
Maintenance and Consultation
(1) We provide maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call,for free.
Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, UL and so on.
Trade Terms:
| Payment terms | Prepayment can be negociated
-T/T:
-Paypal
-Western Union
-Escrow |
| Packing | -Standard Export Carton with fully Polyfoam or Pearl Wool
-Flight case;
-Anti-shaking wooden case |
| Delivery time | LED module: 1-4 working days after receiving deposit
LED display: 5 -15 working days after receiving deposit |
Foxgolden profile
FOXGOLDEN GROUP LTD (www.foxgolden.com)is a 11 years professional LED display manufacturer. Since 2004, we have been dedicating to the aim that producing high quality products, and now FOXGOLDEN has been well integrated in terms of R&D, produce, project, capital and marketing,hot sale indoor/outdoor full color led display.
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
